Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE314D | 310MM | 4 Pole | 1 Phase
Air Flow 1512 M³/H | Power 140W | IP44
Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE314D | ...
Product Overview
| Model Number | CE314D |
| Airflow (M³/H) | 1512 |
| Duct Flange Size | 315MM (12" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 140 |
| Noise Level | 48 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description

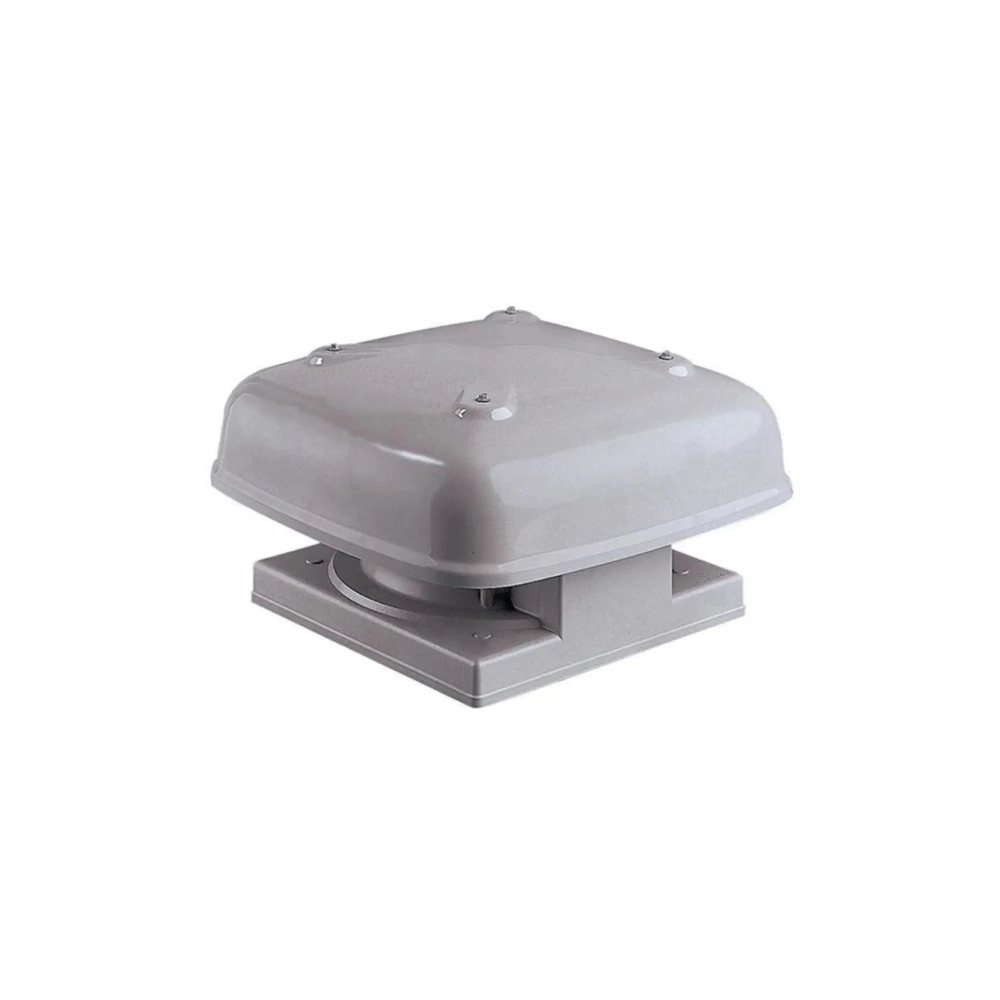

The Fantech Gamma CE314D Roof Mount Downflow Exhaust Fan is a powerful and reliable solution for commercial ducted ventilation systems. With a 310MM diameter and a maximum airflow of 1512 M3/H, this fan is perfectly suited for factories, warehouses, workshops, assembly halls, and retail outlets.
Built with a robust and lightweight construction, the CE314D features a low profile roof design for discreet installation. Each unit is equipped with a protective bird mesh guard to prevent debris and vermin from entering the ducting system, ensuring long-lasting performance and system integrity.
With quiet operation at just 48 dB(A) and durable components, the Gamma CE314D offers efficiency, safety, and flexibility for a wide range of Australian commercial ventilation applications.
Features
Features
- Robust, lightweight construction for long service life.
- 310MM fan size providing strong airflow up to 1512 M³/H.
- Low noise performance at 48 dB(A) @3m.
- Low profile roof design blends with building lines.
- Protective bird mesh guard fitted as standard.
- Designed for downflow discharge applications in commercial systems.
- Mountable at angles up to 30° for installation flexibility.
Specifications
Specifications
- Product Code: CE314D
- Diameter: 310MM (12" Inch)
- Speed: 22 RPS
- Power: 0.14 kW
- Current: 0.7A
- Noise Level: 48 dB(A) @3m
- Maximum Pressure: 215 Pa
- Maximum Airflow: 1512 M³/H
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE314D | 310MM | 4 Pole | 1 Phase
