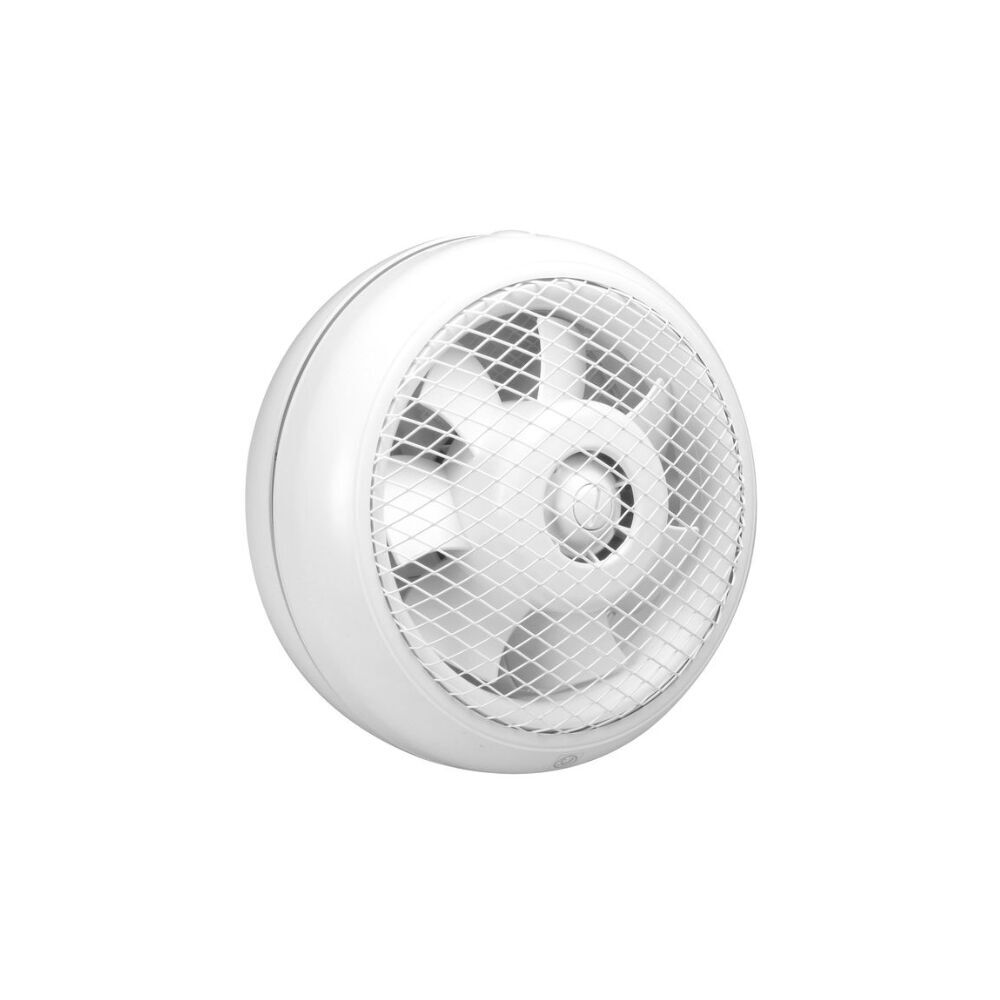

Fantech HCM Series Wall/Window Mounted Exhaust Fan - HCM-180N | w/ Gravity Louvre
Air Flow 441 M³/H | Power Consumption 31W | IPX4
Fantech HCM Series Wall/Window Mounted Exhaust Fan - HCM-180N | w/ ...
Product Overview
| Model Number | HCM-180N |
| Airflow (M³/H) | 441 |
| Motor Type | AC |
| Exhaust Fan Power (W) | 31 |
| Noise Level | 37 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description

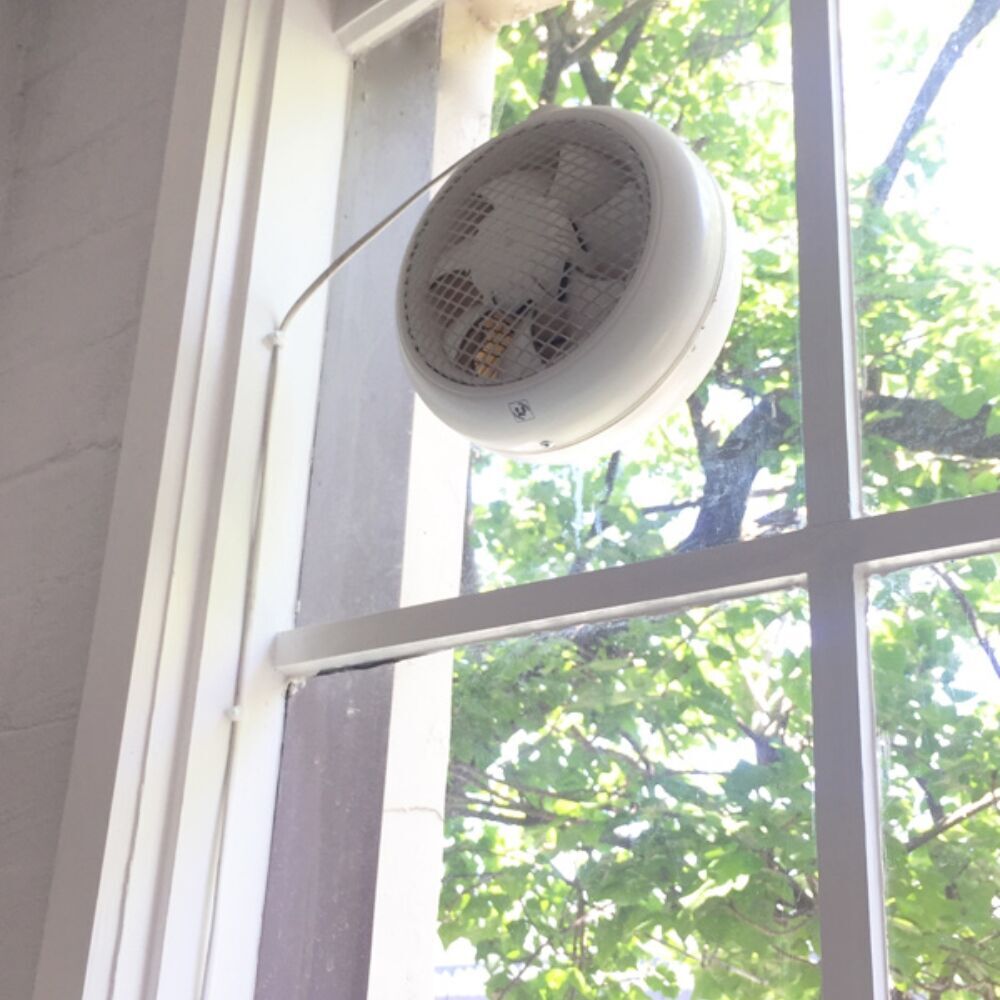

The Fantech HCM-180N Wall/Window Mounted Exhaust Fan is a reliable solution for domestic kitchens, bathrooms and laundries that require stronger air extraction. Its compact low profile design blends seamlessly with walls or windows, while the quiet operation ensures minimal disruption in the home. A built-in gravity-operated louvre shutter prevents dust and rain from entering, making it highly suitable for Australian homes. Rated for continuous run, the HCM-180N guarantees dependable long-term performance. With an optional weather cap, it can also be skylight mounted for added protection in exposed or coastal locations.
Features
Features
- Compact low profile design - discreet installation for walls and windows.
- Quiet operation - ensures comfort in residential spaces.
- Gravity operated louvre shutter - blocks dust and rain ingress.
- High air flow performance - ideal for larger bathrooms and kitchens.
- Continuous run rated - built for reliable daily use.
- Optional weather cap - enhances protection for skylight and exposed areas.
Specifications
Specifications
- Model: HCM-180N
- Air Flow: 441 M³/H
- L/Sec: 123
- Fan Speed: 2250 RPM
- Noise Level: 37 dB(A) @ 3m
- Power Consumption: 31W
- Voltage: 220-240V
- IP Rating: IPX4

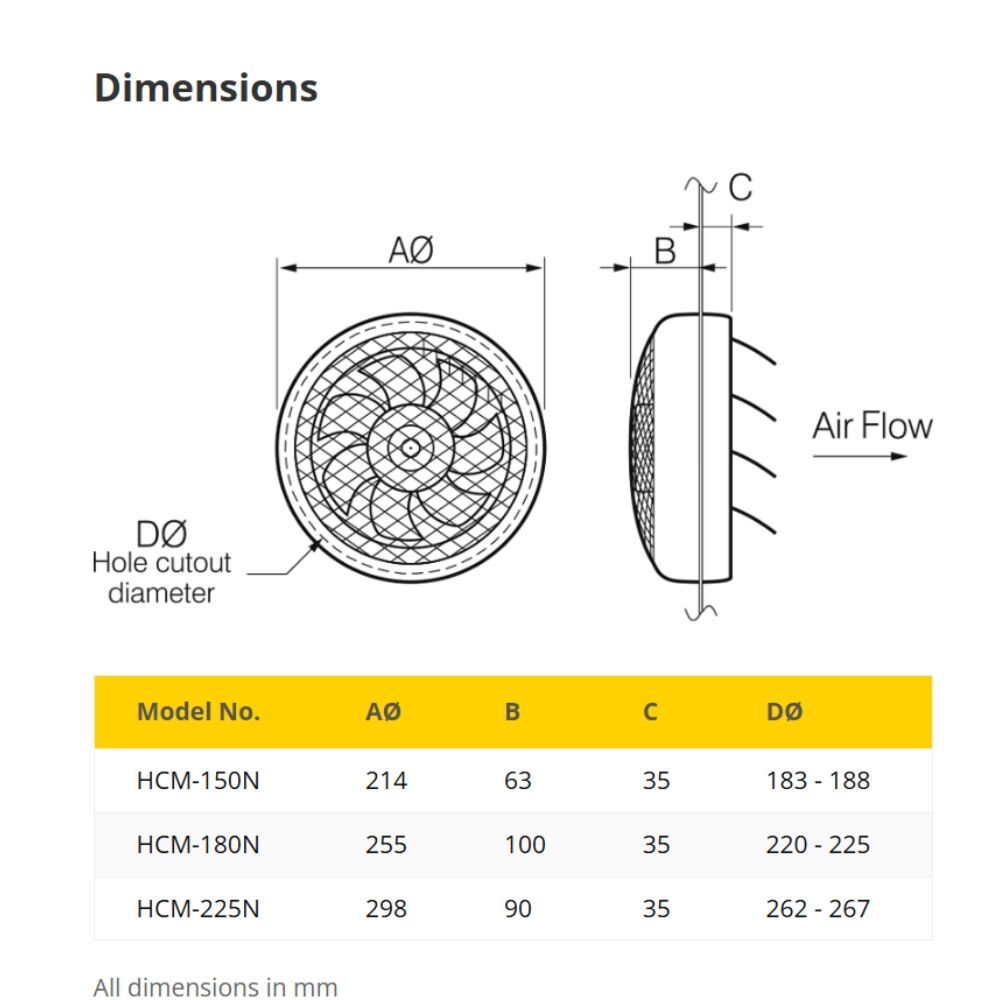

- Cutout Size: 220-225MM
What's in the box
What's in the box
- [1] x Fantech HCM Series Wall/Window Mounted Exhaust Fan - HCM-180N | w/ Gravity Louvre
