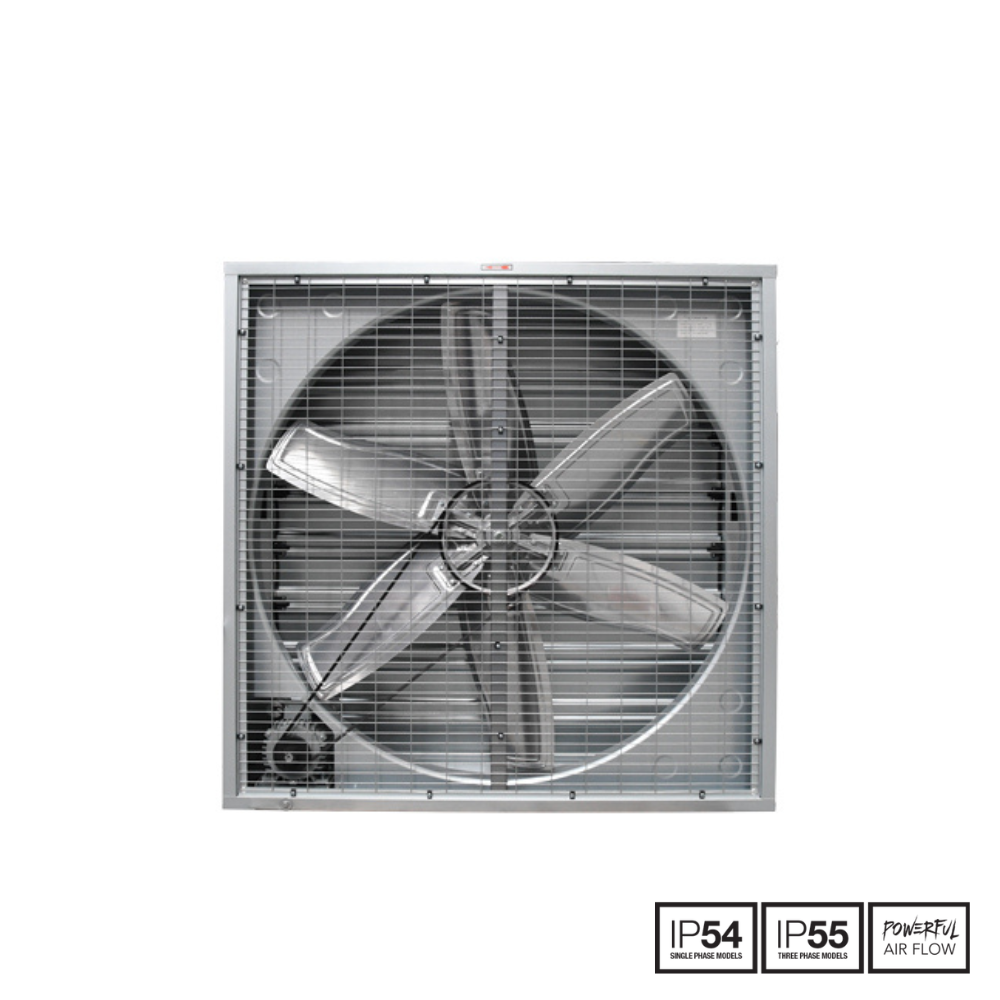

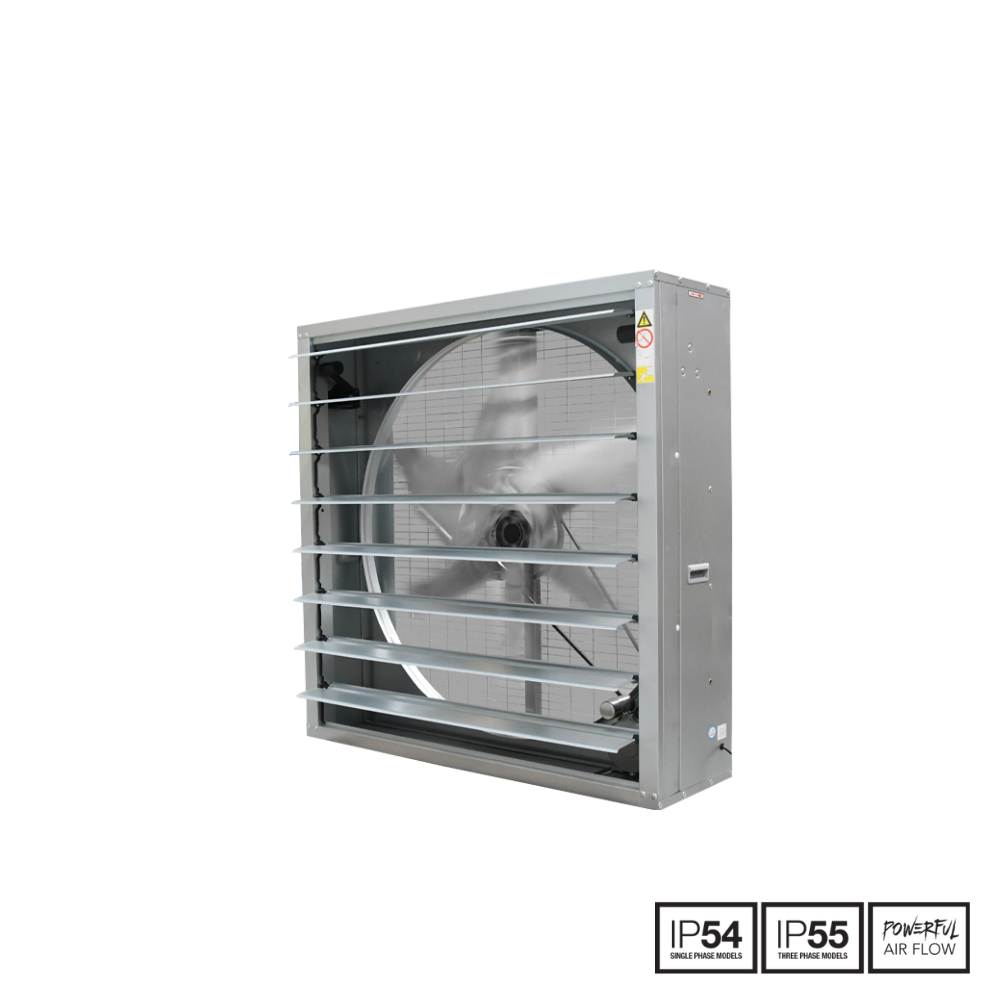

Fantech High Volume Galvanised Steel Wall Fan - HVD080 | 800MM | 3 Phase | w/ Backdraft Dampers
Airflow 16000 M³/H | Power Consumption 0.37 KW | IP55
Product Overview
| Model Number | HVD080 |
| Airflow (M³/H) | 16000 |
| Motor Type | Belt Drive Fan |
| Exhaust Fan Power (W) | 370 |
| Noise Level | 49 dBA at 3M |
| IP Rating | IP55 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Yes |
| Voltage | 415V - 3 Phase |
| Humidistat | No |
| Thermostat | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
Description
Description
The Fantech HVD080 High Volume Wall Fan is a powerful industrial ventilation solution designed to move large volumes of air efficiently in commercial and agricultural environments. Featuring an 800mm fan diameter, 16,000m3/hr airflow capacity, and a reliable 0.37kW three-phase motor, this fan is ideal for warehouses, workshops, poultry sheds, factories, recreation halls, and other large buildings requiring effective air exchange.
Built with a durable galvanised steel construction, the HVD080 is engineered for long-term performance in demanding environments. The fan incorporates heavy-duty self-closing backdraft dampers that prevent weather ingress when the unit is not operating, helping maintain building protection and energy efficiency.
Designed for ease of installation and maintenance, the fan features integrated grab handles, nutserts, safety guards, and an adjustable motor plate that simplifies belt adjustments. Its low operating noise of just 49dB(A) at 3 metres makes it an effective ventilation solution without excessive noise disruption.
Whether used for temperature control, fresh air exchange, humidity management, or livestock ventilation, the Fantech HVD080 High Volume Wall Fan delivers reliable airflow performance and durability for Australian industrial and agricultural applications.
Features
Features
- High Airflow Performance - Delivers up to 16,000m³/hr airflow for large-scale ventilation applications.
- Industrial Grade Construction - Manufactured from durable galvanised steel for long service life.

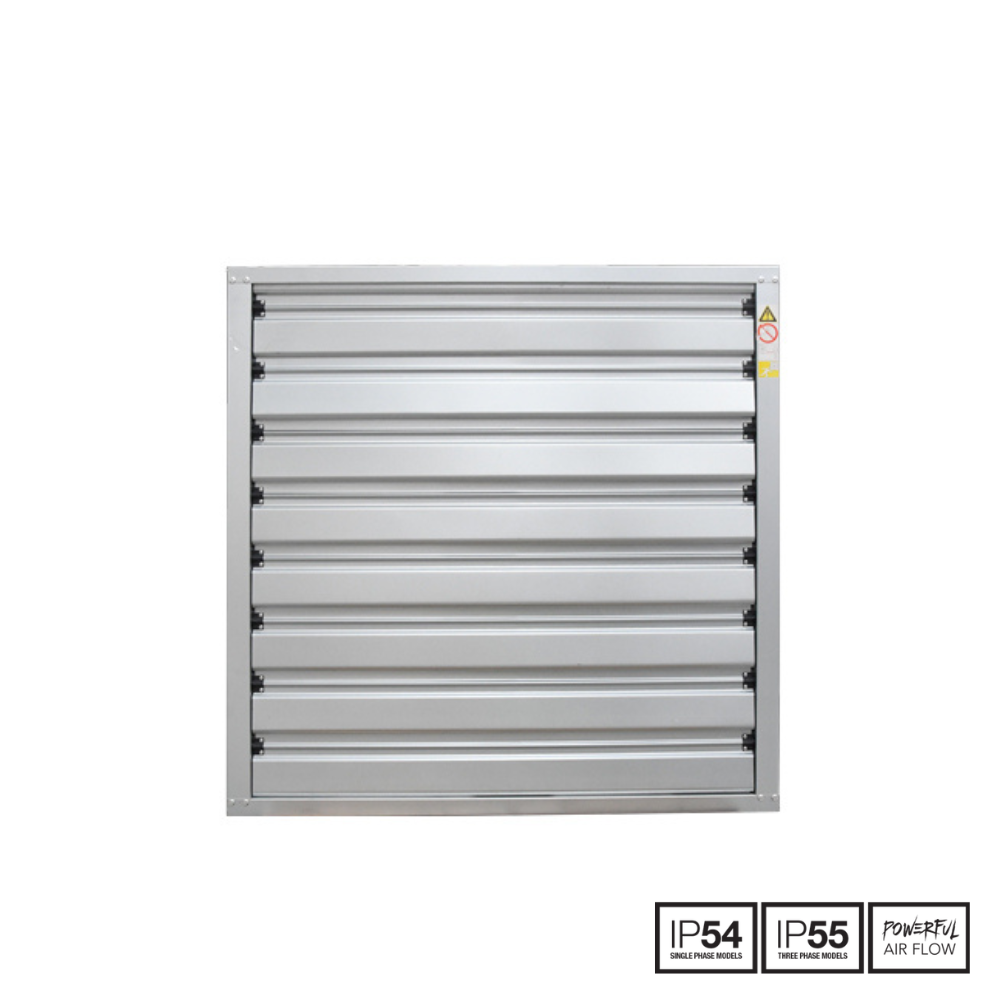

- Heavy Duty Backdraft Dampers - Self-closing shutters prevent weather ingress when the fan is switched off.
- Three Phase Motor - Efficient 415V motor designed for continuous commercial operation.
- Low Noise Operation - Operates at just 49dB(A) measured at 3 metres.
- Safety Guards Included - Factory fitted safety guards provide additional operator protection.

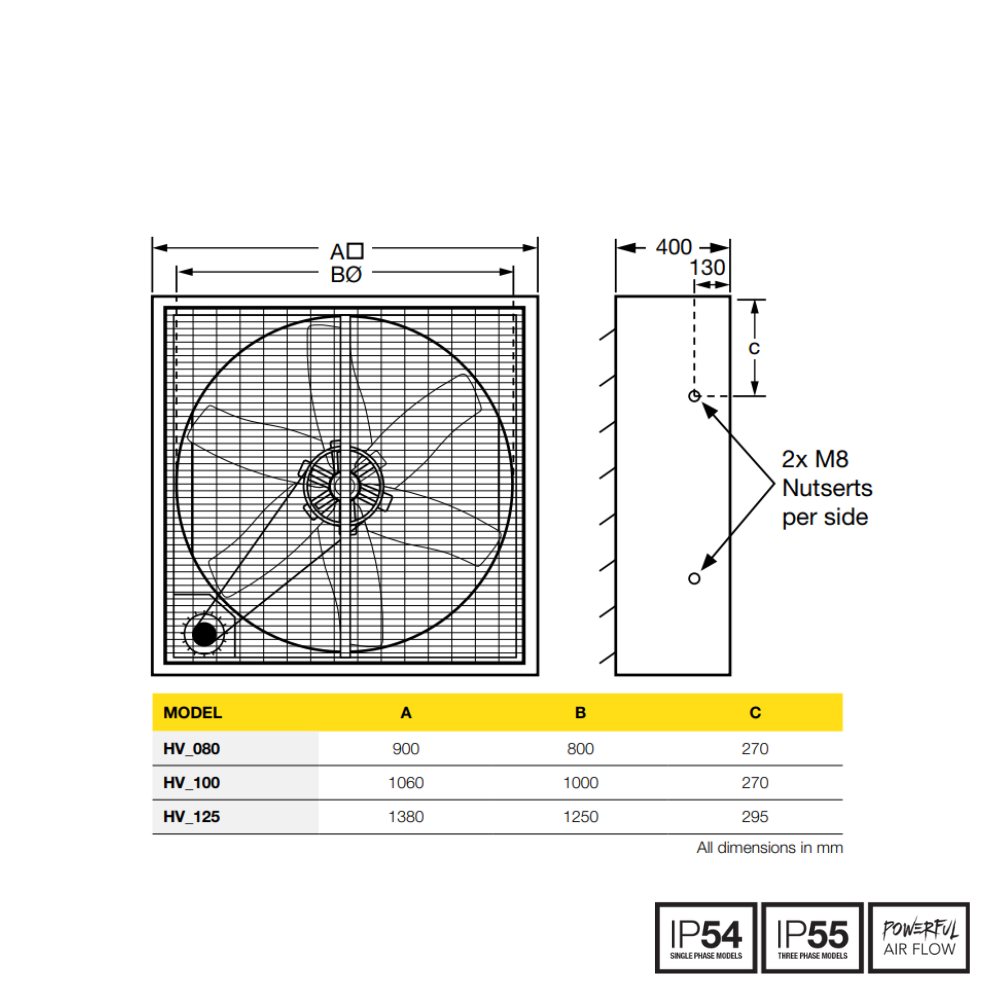

- Easy Installation - Integrated nutserts and grab handles simplify mounting and positioning.
- Adjustable Motor Plate - Allows convenient belt tension adjustment and maintenance.
- IP55 Protection Rating - Suitable for demanding industrial environments.
- Versatile Applications - Ideal for warehouses, workshops, poultry sheds, factories, and recreation halls.
Specifications
Specifications
| Specification | HVD080 |
|---|---|
| Model | HVD080 |
| Fan Size | 800 mm |
| Voltage | 415 V |
| Phase | Three Phase |
| Frequency | 50 Hz |
| Motor Power | 0.37 kW |
| Airflow | 16,000 m³/hr |
| Noise Level | 49 dB(A) @ 3m |
| Fan Speed | 450 RPM |
| Weight | 42 kg |
| IP Rating | IP55 |
| Construction | Galvanised Steel |
| Backdraft Dampers | Self-Closing Mechanical Shutters |
| Safety Guards | Included |
What's in the box
What's in the box
- [1] x Fantech High Volume Galvanised Steel Wall Fan - HVD080 | 800MM | 3 Phase | w/ Backdraft Dampers
