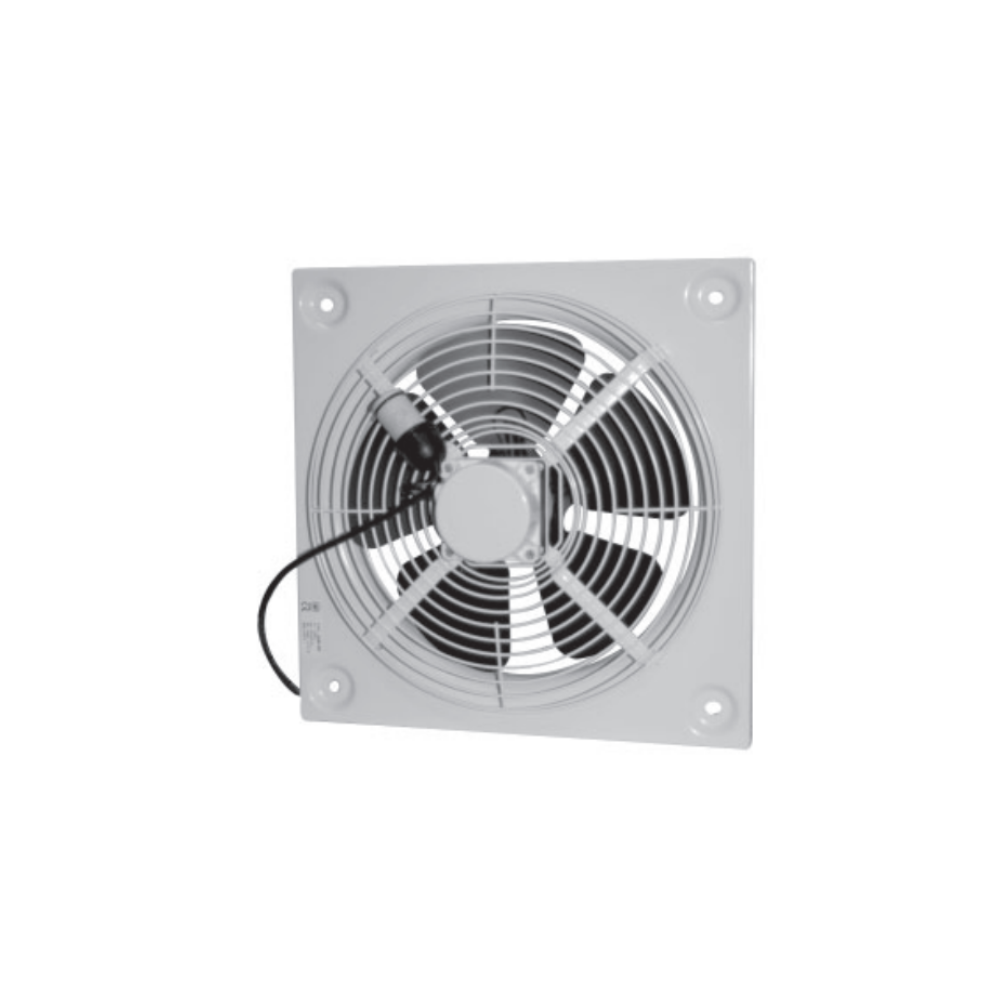

Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-350

The Fantech HXM-350 is a high-performance wall mounted square plate exhaust fan built for general ventilation in commercial and industrial applications. Featuring a 350MM (14" Inch) fan diameter, it delivers up to 1692 M3/H airflow, making it an excellent choice for cafes, bars, wine cellars, retail premises, and workshops. The galvanised steel plate with epoxy polyester coating ensures durability and corrosion resistance. Safety features include a finger-proof inlet guard and thermal motor protection. With a speed controllable motor, users can fine-tune airflow and noise to suit the environment. Rated IP44 with Class B insulation, the HXM-350 runs on 230V single phase supply, making it ideal for Australian installations.

• 350MM (14" Inch) fan size - medium-large capacity for wall mounting.
• Airflow up to 1692 M³/H - strong ventilation performance for larger spaces.
• Speed controllable motor - adjustable airflow with compatible controller.
• Finger-proof inlet guard - provides added safety during operation.
• Durable construction - galvanised steel plate with epoxy polyester finish.
• Thermal motor protection - safeguards motor from overheating.
• Insulation Class B - reliable motor durability.
• Ingress Protection IP44 - dust and splash resistant for commercial use.

• Model - HXM-350
• Fan Diameter - 350MM (14" Inch)
• Airflow - 1692 M³/H
• Power - 52W
• Voltage - 230V 50Hz, 1 Phase
• Current - 0.2A
• Noise Level - 46 dB(A) @3m
• Speed - 1320 RPM
• Max Pressure - 38 Pa
• Insulation Class - Class B
• Ingress Protection - IP44
• Construction - Galvanised steel with epoxy polyester finish
• Motor Type - Capacitor run, speed controllable
• Mounting - Wall mounted square plate
• Max Ambient Temp - 40°C

• [1] x Fantech HXM Series Wall Mounted Square Plate AC Exhaust Fan - IP44 | 1 Phase | HXM-350

• Specification Sheet - Click Here
