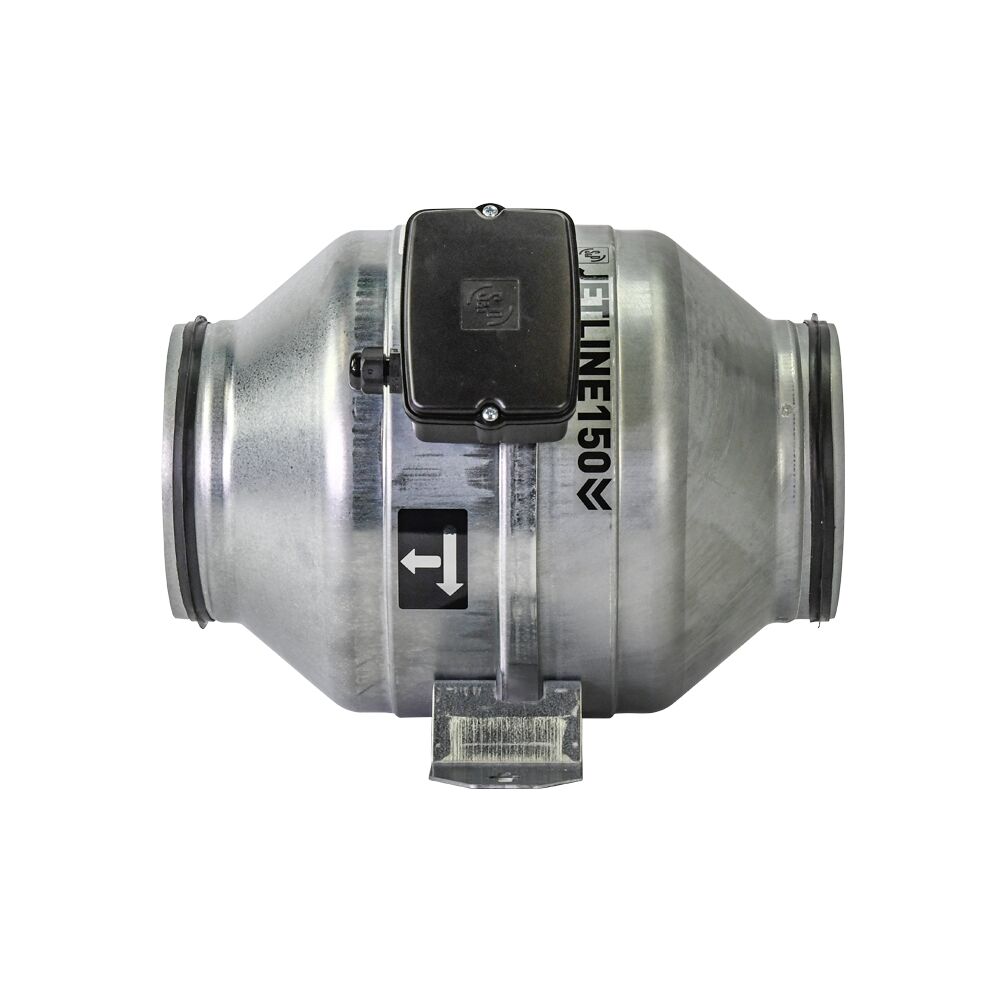

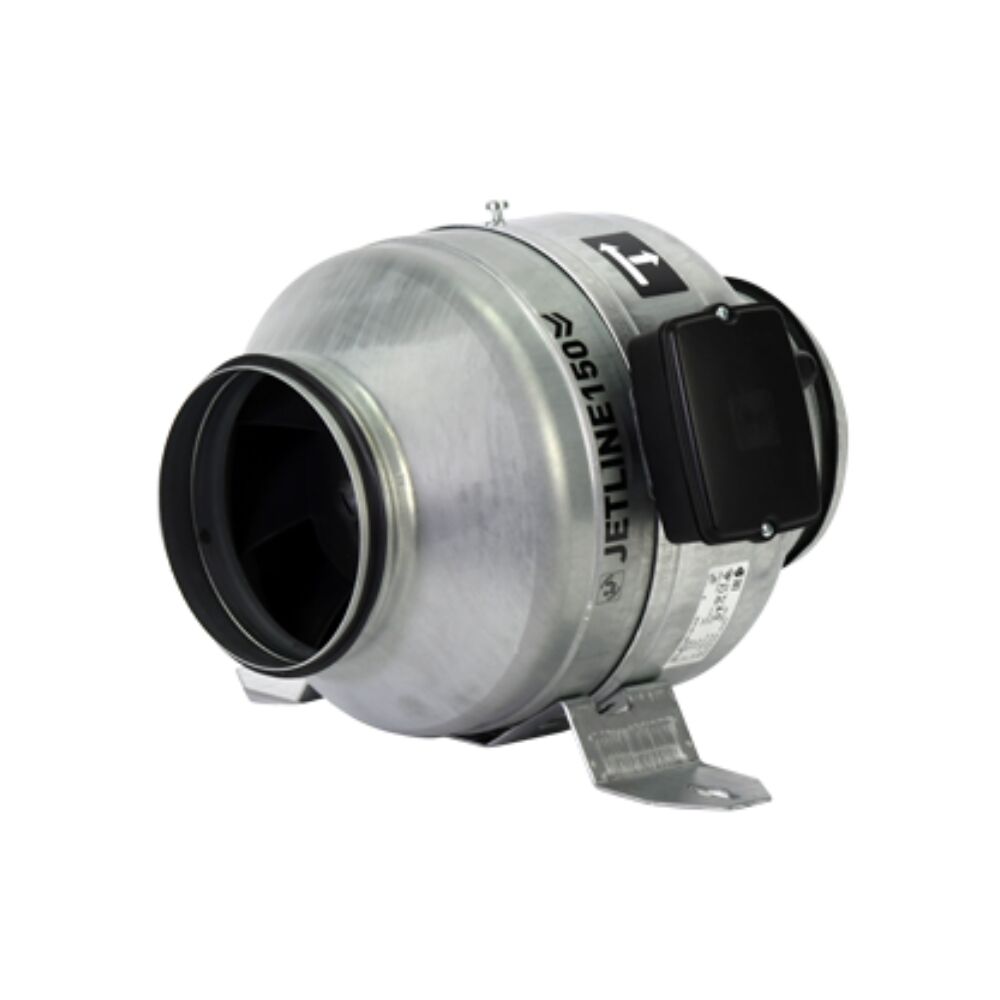

Fantech Jetline Eco In-line Duct Mounted EC Exhaust Fan - 125MM (5" Inch)

The Jetline EcoWatt in-line fan comes equipped with the latest energy efficient EC motor technology. It is speed-controllable via a 0-10V analogue input signal and includes an on-board potentiometer.

It features a low profile design and silent-block motor mounting to reduce vibrations and lower the sound level of operation.

The Jetline EcoWatt has a durable outer casing that is manufactured from long lasting galvanised steel.

• An energy efficient solution with state-of-the-art EC motor technology.
• Speed-controllable via a 0-10V analogue input signal.
• High performance patented centrifugal impeller.
• Designed for direct connection to standard diameter circular ducting.
• Galvanised steel quick fit mounting bracket for fast installations.
• Rubber gasket on spigots improves seal between fan and duct work.
• Can be mounted in any position.
• Please note: requires hard wire installation

• Model Number: JETLINE-125ECO
• m³/h: 390
• L/s: 108
• Fan Speed (rev/sec): 44
• Avg. dB(A) @ 3m: 41
• Watts: 40
• 1PH Amps: 0.2
• Volts: 220–240

• [1] x Fantech Jetline Eco In-line Duct Mounted Fan - 125MM (5" Inch) | 40W | 390 M³/H

• Specification Sheet - Click Here
