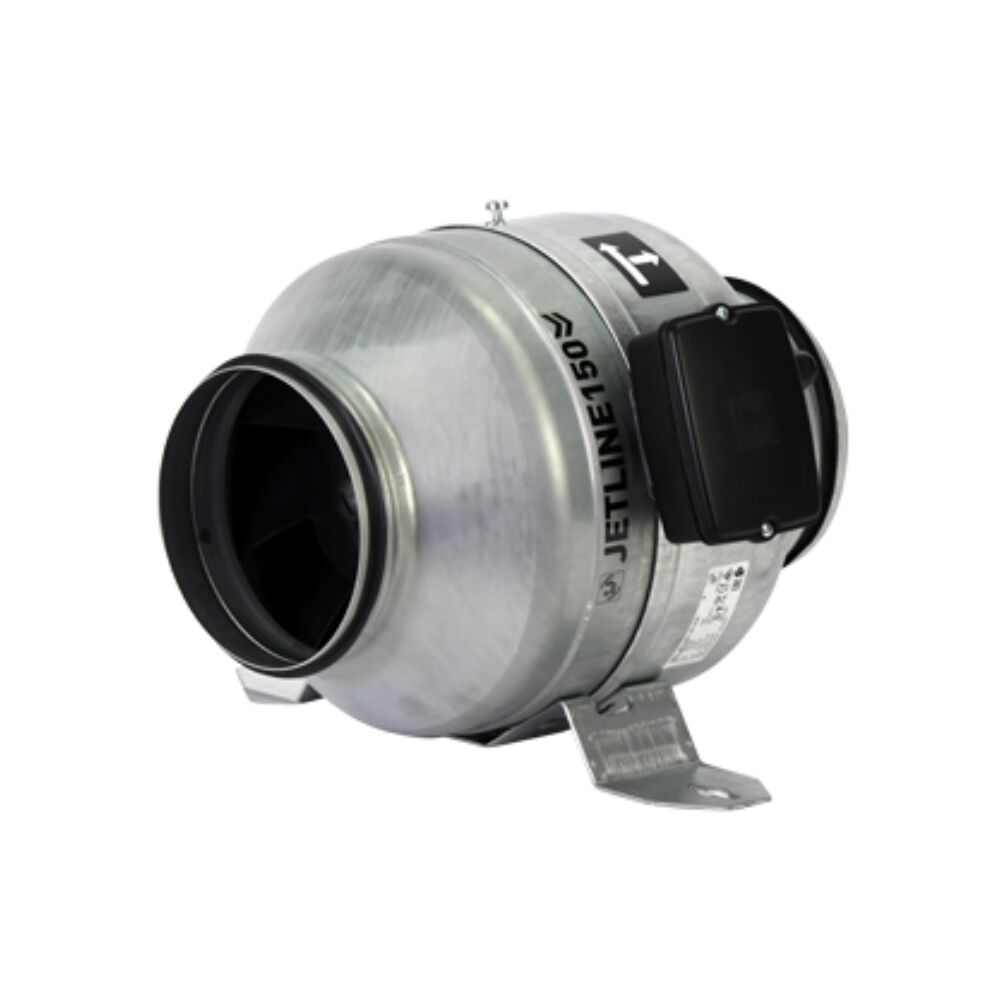

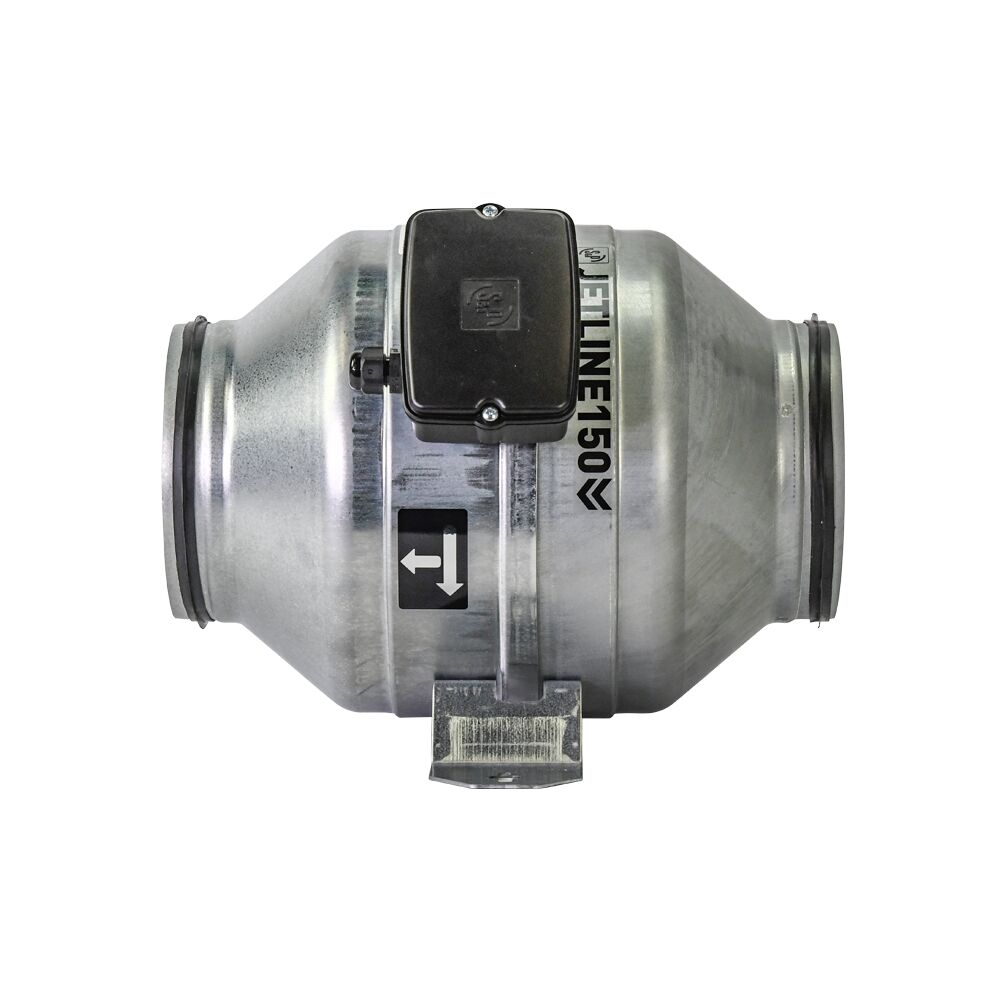

Fantech Jetline In-line Duct Mounted AC Exhaust Fan - 250MM (10" Inch)

The Jetline is a high performance, low profile in-line fan featuring silent-block motor mounting to reduce vibrations and provide low noise operation. The Jetline uses a quick-fit mounting bracket for fast installation and is suitable for mounting in any position.

Jetline is suitable for toilets, bathrooms, ensuites, laundries and kitchens in homes, hotels, apartments, and commercial buildings. There are 6 models in the range matching standard duct sizes from 100 to 315mm diameter.

• High performance patented centrifugal impeller.
• Designed for direct connection to standard diameter circular ducting.
• Low profile, durable outer casing manufactured from galvanised sheet steel.
• Galvanised steel quick fit mounting bracket for fast installations.
• Rubber gasket on spigots improves seal between fan and duct work.
• Can be mounted in any position.
• Includes plug and lead for easy installation.

• Model Number: JETLINE-250
• M³/h: 1280
• L/s: 356
• Fan Speed (rev/sec): 45
• Avg. dB(A) @ 3m: 53
• Watts: 160
• 1PH Amps: 0.7
• Volts: 220–240

• [1] x Fantech Jetline In-line Duct Mounted AC Exhuast Fan - 250MM (10" Inch) | 160W | 1280 M³/H | IP44
