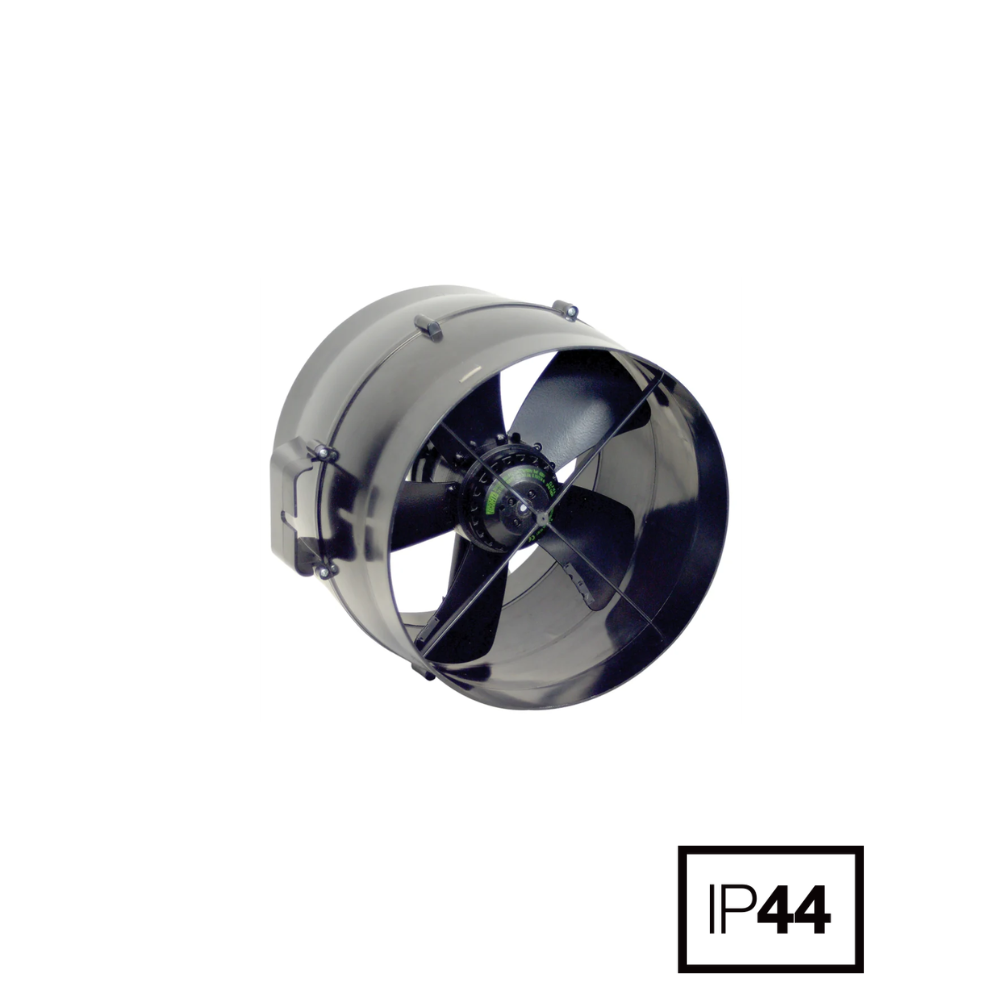

Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTP204 | 4 Phase | Plastic Housing

The Fantech MTP204 Minitube Axial Fan is a high-quality duct-mounted ventilation fan designed for applications requiring reliable airflow performance with lower operating noise. Featuring a durable ABS injection moulded plastic housing and a quieter 4-pole motor design, the MTP204 is ideal for residential, commercial, and industrial ventilation systems where noise reduction is important.

Built to suit standard 200mm ducting systems, the fan is powered by a speed-controllable external rotor squirrel cage induction motor and supplied complete with a convenient flex and plug connection for fast and simple installation. The fan can be mounted in any position, providing maximum flexibility for ducted ventilation projects.

The high-strength powder-coated steel impeller ensures dependable performance, while sealed-for-life ball bearings deliver long-term reliability with minimal maintenance requirements. Integrated manual reset thermal protection further safeguards the motor during operation.

With its low noise output of just 39dB(A) at 3 metres, compact design, and versatile installation options, the Fantech MTP204 Minitube Axial Fan is an excellent solution for exhaust, intake, transfer air, and general ventilation applications.

• 200mm Duct Mounted Axial Fan - Designed to fit standard 200mm ventilation ducting.
• Low Noise 4-Pole Motor - Quieter operation at only 39dB(A) at 3 metres.
• ABS Plastic Housing - Lightweight, corrosion-resistant, and durable construction.
• Flex and Plug Included - Simple plug-and-play installation.
• Speed Controllable - Compatible with speed controllers for adjustable airflow.
• External Rotor Motor - Reliable squirrel cage induction motor technology.
• Flexible Installation - Can be mounted in any position.
• Sealed Ball Bearings - Maintenance-free bearings designed for long service life.
• IP44 Rated Protection - Suitable for a wide range of ventilation environments.
• Integrated Thermal Protection - Manual reset overload protection fitted as standard.

• [1] x Fantech Minitube Duct Mounted Axial Fan 200MM (8" Inch) - MTP204 | 4 Phase | Plastic Housing
