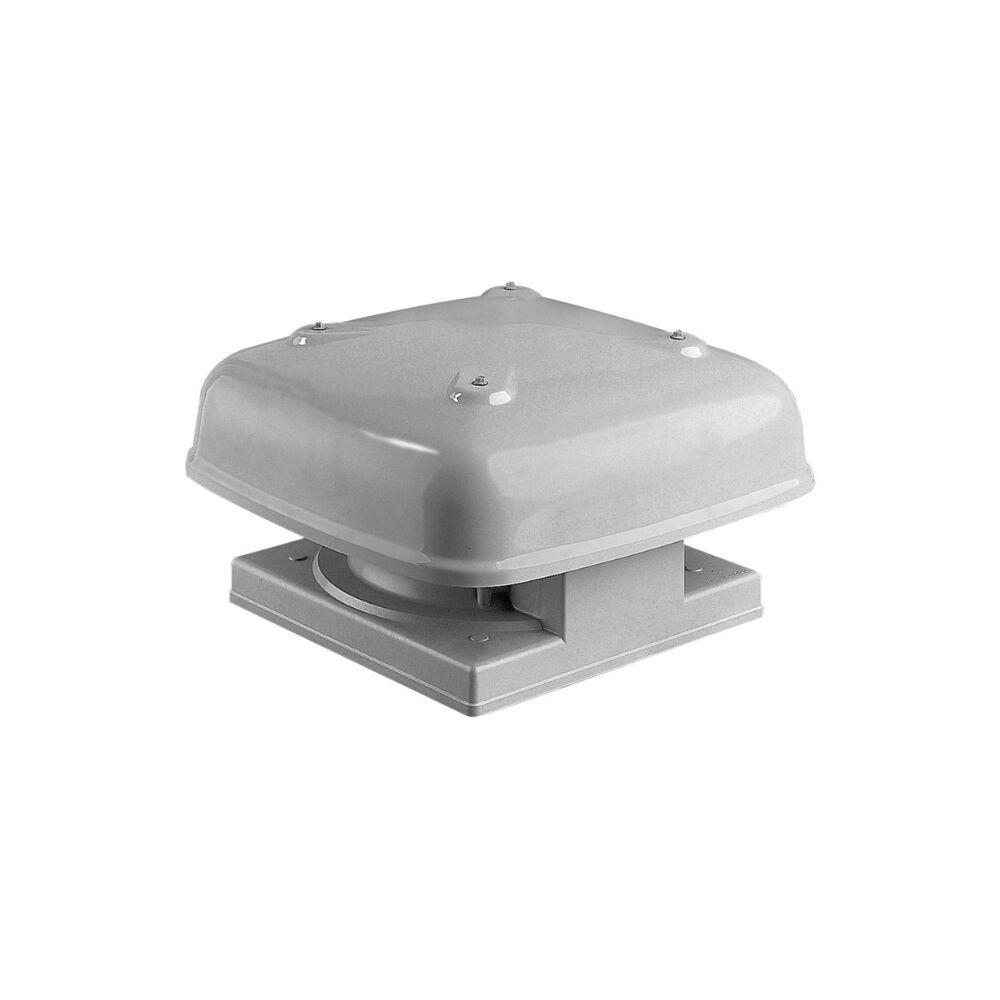

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV202E | 200MM | 2 Pole | 1 Phase

The Fantech Minivent MV202E Roof Mounted Axial Exhaust Fan provides powerful and efficient ventilation for domestic and commercial applications. With an airflow performance of 688 M3/H, it is ideal for areas requiring higher capacity extraction. The fan operates at 52 dB(A), delivering reliable ventilation while maintaining manageable noise levels. Featuring a robust and lightweight design, this unit is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. The MV202E runs on single phase 240V power and is IP44 rated, ensuring protection against dust and moisture, making it a durable solution for long-term use.

• High airflow capacity of 688 M³/H for efficient ventilation.
• Robust and lightweight construction for easy installation.
• Speed controllable motor for flexible performance control.
• Suitable for ducted systems in both residential and commercial settings.
• Mountable at up to 30° angles for versatile positioning.
• Operates on single phase 240V for standard Australian power supply.
• Noise level of 52 dB(A) for balanced performance and quiet operation.
• IP44 rated for resistance to dust and moisture.

• Model: MV202E
• Air Flow: 688 M³/H
• Noise Level: 52 dB(A) @ 3M
• Power Consumption: 70W
• Voltage: 240V

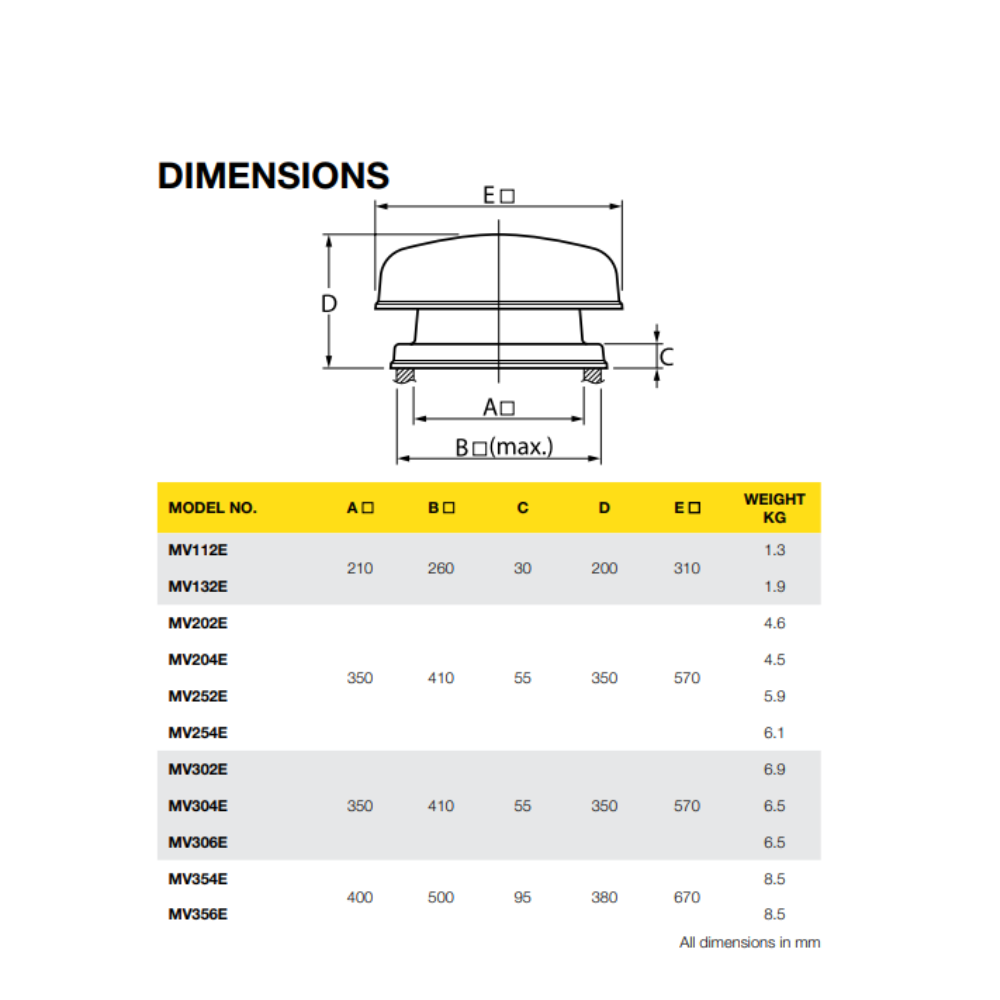

• Flange Size: 200MM (8" Inch)
• Poles: 2 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV202E | 200MM | 2 Pole | 1 Phase

• Specification Sheet - Click Here
