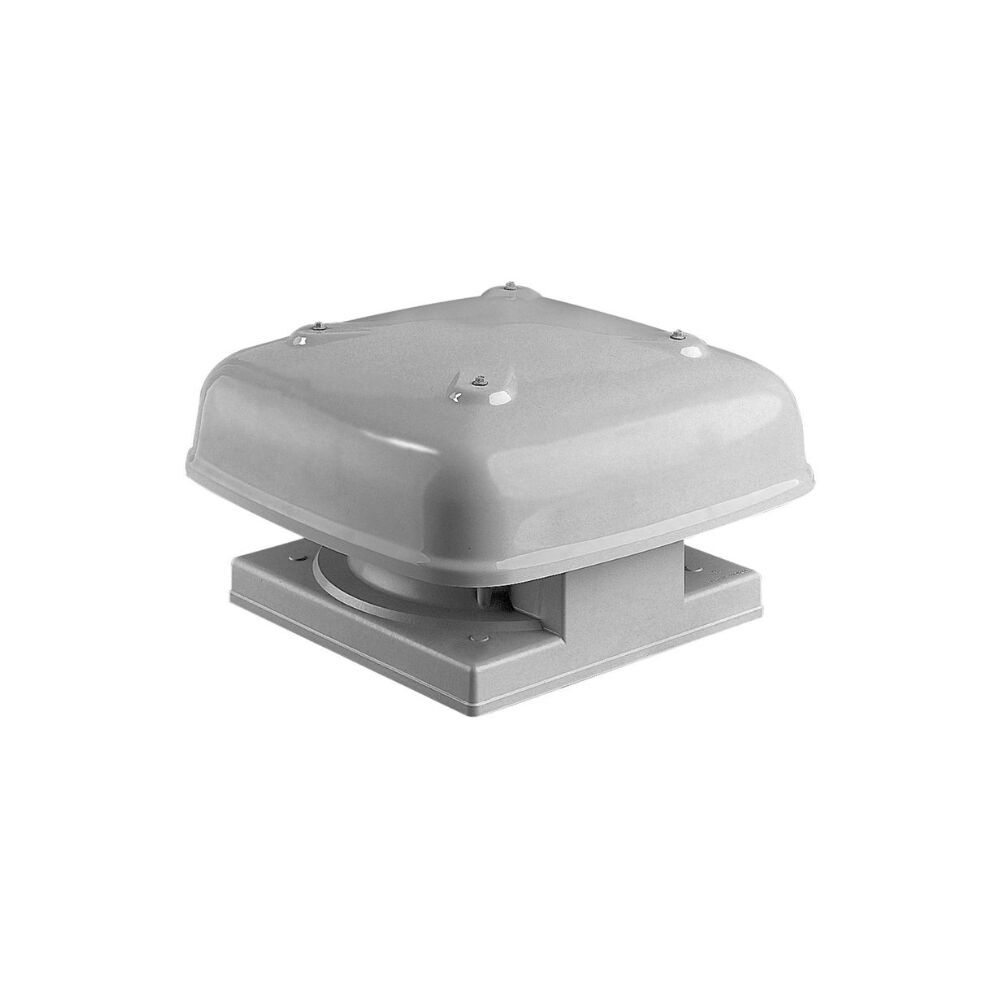

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV354E | 350MM | 4 Pole | 1 Phase

The Fantech Minivent MV354E Roof Mounted Axial Exhaust Fan is a powerful high-capacity ventilation solution designed for large domestic and commercial projects. With an airflow of 1901 M3/H, it provides exceptional extraction performance for big spaces. Operating at 50 dB(A), it balances airflow strength with manageable noise output. The MV354E features a robust lightweight design, is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. Built for single phase 240V operation and rated IP44, this fan ensures durability and long-lasting performance in Australian environments.

• High airflow capacity of 1901 M³/H for large-scale ventilation.
• Robust and lightweight construction for easy handling and installation.
• Speed controllable motor for performance flexibility.
• Compatible with ducted systems for residential or commercial setups.
• Mountable at up to 30° for installation versatility.
• Operates on single phase 240V Australian power supply.
• Noise level of 50 dB(A) for reliable large-volume operation.
• IP44 rated for dust and moisture resistance.

• Model: MV354E
• Air Flow: 1901 M³/H
• Noise Level: 50 dB(A) @ 3M
• Power Consumption: 140W
• Voltage: 240V
• Flange Size: 350MM (14" Inch)
• Poles: 2 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV354E | 350MM | 4 Pole | 1 Phase

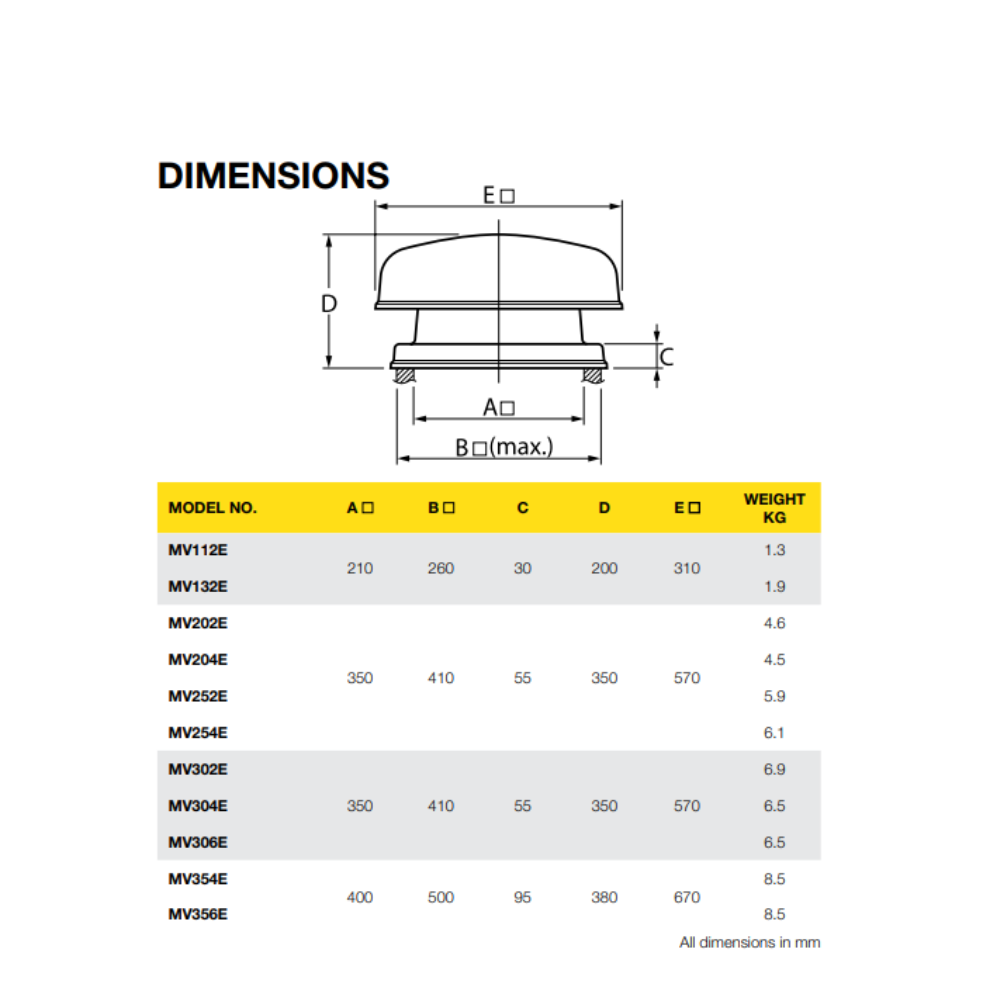

• Specification Sheet - Click Here
