Fantech | SKU:
VEFANS52001

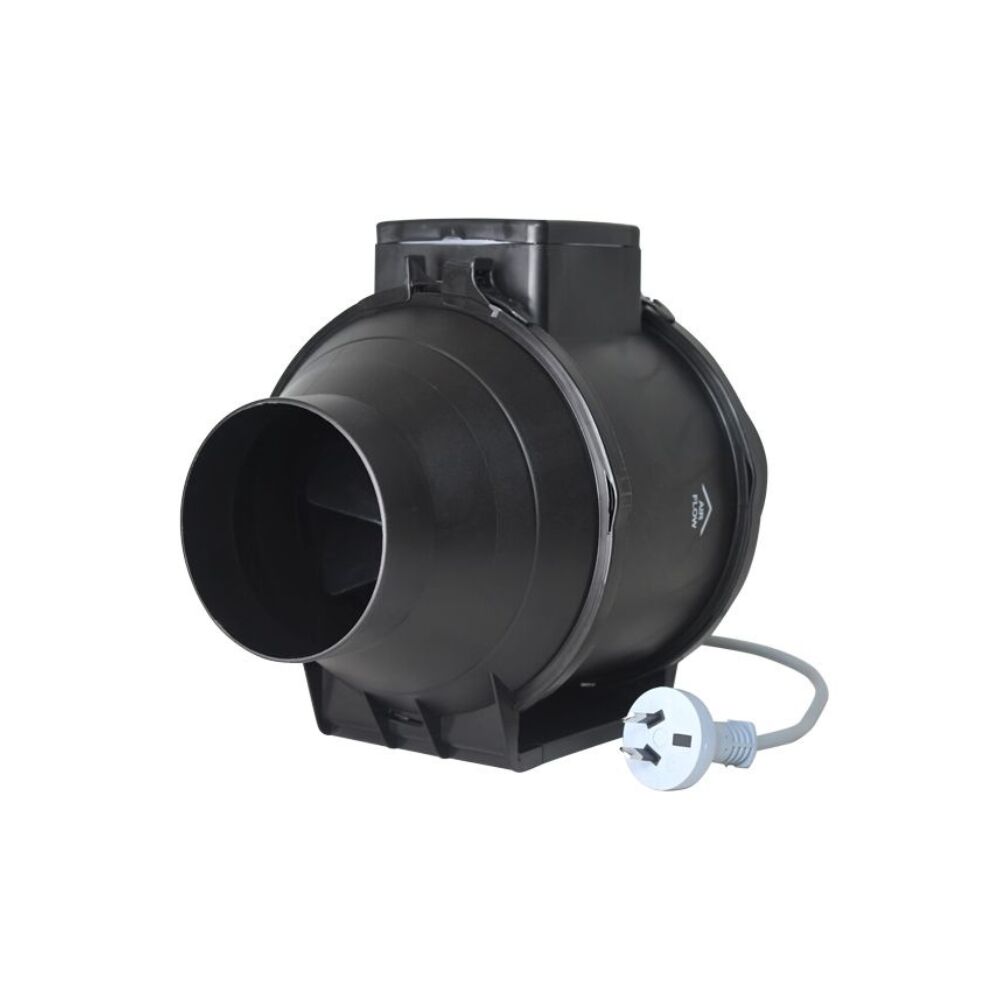

Fantech Provent In-line Duct Mounted AC Exhaust Fan - 100MM (4" Inch)
$189.95
Unit price
/
Unavailable
Air Flow 245 M³/H | Power Consumption 24W | IP44
Stock Availability (LIVE)
Online:
–
Click & Collect
Lidcombe:
–
Fantech Provent In-line Duct Mounted AC Exhaust Fan - 100MM (4"...
$189.95
Unit price
/
Unavailable
Description
Description
The high performance ProVent fans feature a compact design that makes them suitable for applications where space is limited. Their mixed-flow impeller provides powerful air flow making them suitable for homes, apartments and commercial buildings.
Features
- High performance mixed-flow Impeller.
- Models 150SW and 200SW include an external mounted 2-speed switch.
- Fan body can be removed for maintenance or repair without disturbing the duct system via specially designed support brackets.
- Integrated mounting foot makes installation easier.
- All models include plug and lead for easy plug-in installation.
- Suitable for both supply and exhaust air applications.
Features
Features
Specifications
Specifications
| MODEL NO. | SPEED | M³/HR | L/SEC | FAN SPEED RPM | dB(A) @ 3M | WATTS | VOLTS |
|---|---|---|---|---|---|---|---|
| RIL-100 | High | 245 | 68 | 2220 | 37 | 24 | 230-240 |
| Low | 202 | 56 | 1850 | 32 | 18 | 230-240 | |
| RIL-125 | High | 320 | 89 | 2250 | 38 | 30 | 230-240 |
| Low | 252 | 70 | 1900 | 33 | 22 | 230-240 | |
| RIL-150SW / TSW** | High | 562 | 156 | 2500 | 45 | 50 | 230-240 |
| Low | 468 | 130 | 2150 | 38 | 44 | 230-240 | |
| RIL-200SW / TSW** | High | 1040 | 289 | 2500 | 47 | 120 | 230-240 |
| Low | 846 | 235 | 2000 | 42 | 100 | 230-240 | |
| ** Includes a 1–30 minute adjustable run-on timer. † Air flow without duct and fittings |
|||||||
What's in the box
What's in the box
[1] x Fantech Provent In-line Duct Mounted AC Exhaust Fan - 100MM (4" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
