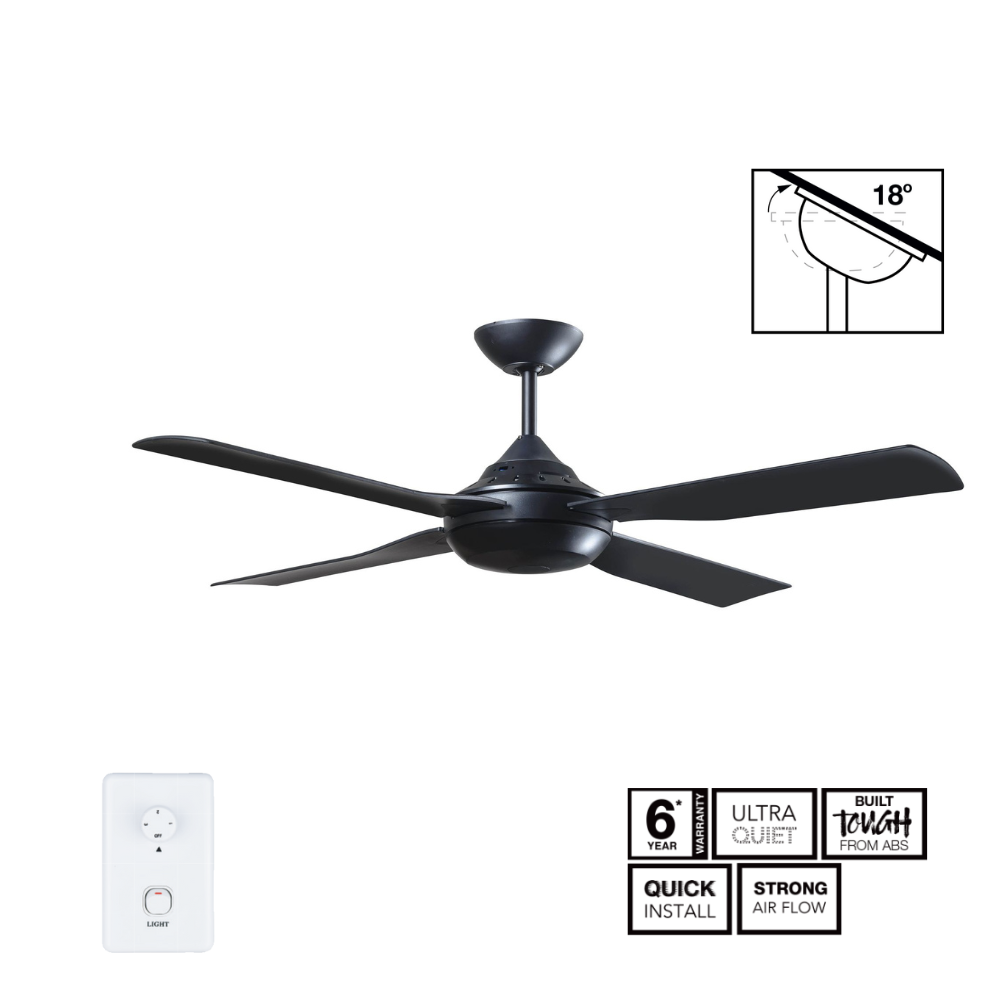

Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | Black | 3 Speed Wall Controller Included
10560 M³/Hr | Indoor & Outdoor | Reversible AC Motor
Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | B...
Product Overview
| Model Number | QTN48BK |
| Airflow (M³/H) | 10560 |
| Motor Type | AC |
| Ceiling Fan Motor Power (W) | 75 |
| Fan Blade Span | 1220MM |
| Blade Material | ABS Plastics |
| Number of Blades | 4 |
| Light | Fan without Light |
| Voltage | 240V - 1 Phase |
| Installation Location | Indoor & Outdoor Undercover |
| Remote Control | No |
| Wall Switch | Yes - 3 Speed Wall Controller with Light Switch |
| Warranty | Fantech - 2 year in home warranty service plus another 4 years on parts. For details visit: fantechtrade.com.au/warranty |
Description
Description
The Fantech Quinton AC 4 Blade Ceiling Fan 1220MM in Black delivers dependable performance with air flow 10560 M3/Hr from a robust 75W AC motor. It comes with a 3-speed wall controller and reversible rotation for summer and winter comfort.
Built from UV-resistant ABS and factory pre-balanced, Quinton runs smoothly and quietly in indoor and covered outdoor areas. Installers save time with quick-connect terminals and a mount suitable for up to 180 ceiling slope. Need more drop or handheld control? Add 90CM or 150CM downrods and the optional remote kit.
Choose Quinton when you want a clean, modern 48-inch ceiling fan that meets spec and goes in fast on site.
Features
Features
- High airflow - 10560 M³/Hr for effective circulation
- Reliable AC motor - 75W with 3 speed wall control
- ABS construction - UV resistant blades and body
- Quiet operation - pre balanced to reduce wobble
- Indoor and covered outdoor - versatile site applications

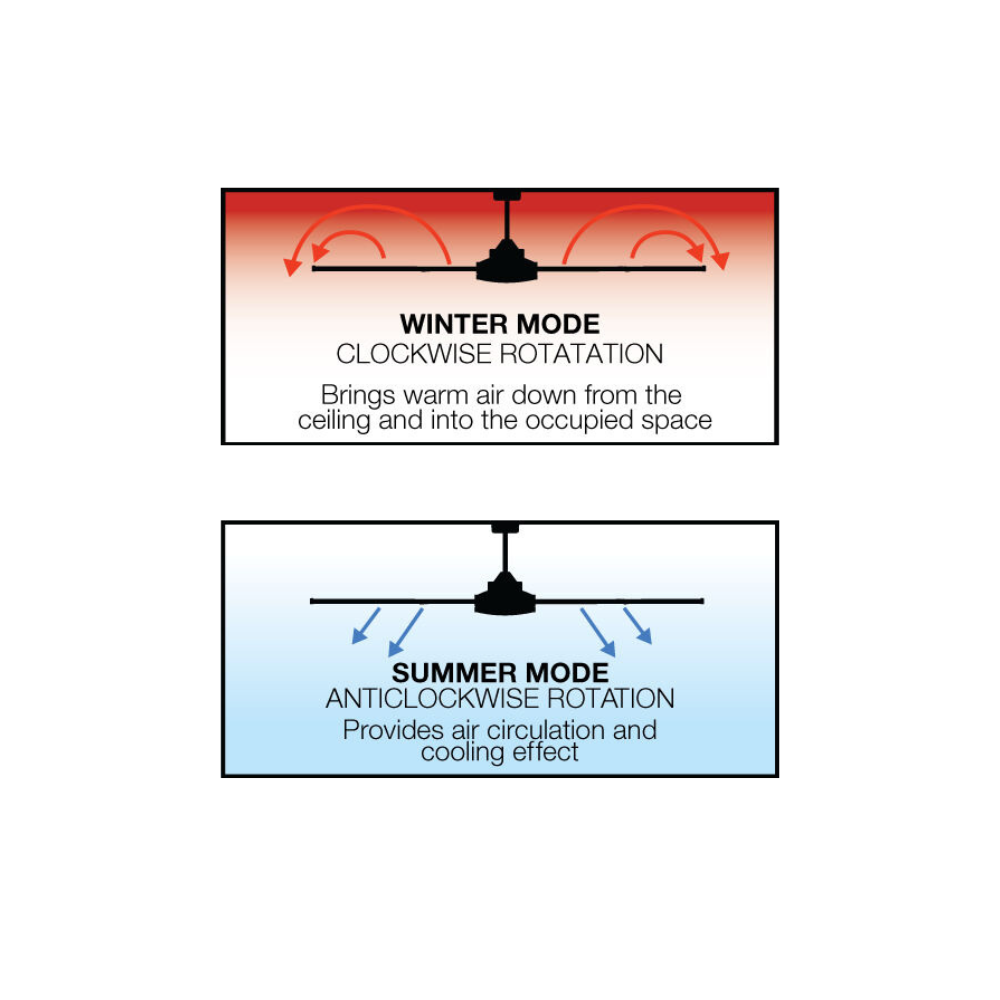

- Reversible rotation - summer and winter modes
- Installer friendly - quick connect terminals simplify wiring
- Slope capable - suits ceilings up to 18°
- Accessory ready - optional 90CM or 150CM downrods and remote
Specifications
Specifications
- Model: QTN48BK
- Fan Size: 122CM (48" Inch)
- Max Air Flow: 10560 M³/Hr
- Motor Type: AC
- Power: 75W
- Supply: 220-240V 50Hz
- Speeds: 3 Speed Wall Controller Included
- Reverse Function: Yes
- Construction: ABS Blades and Body, UV Resistant
- Location: Indoor and Covered Outdoor

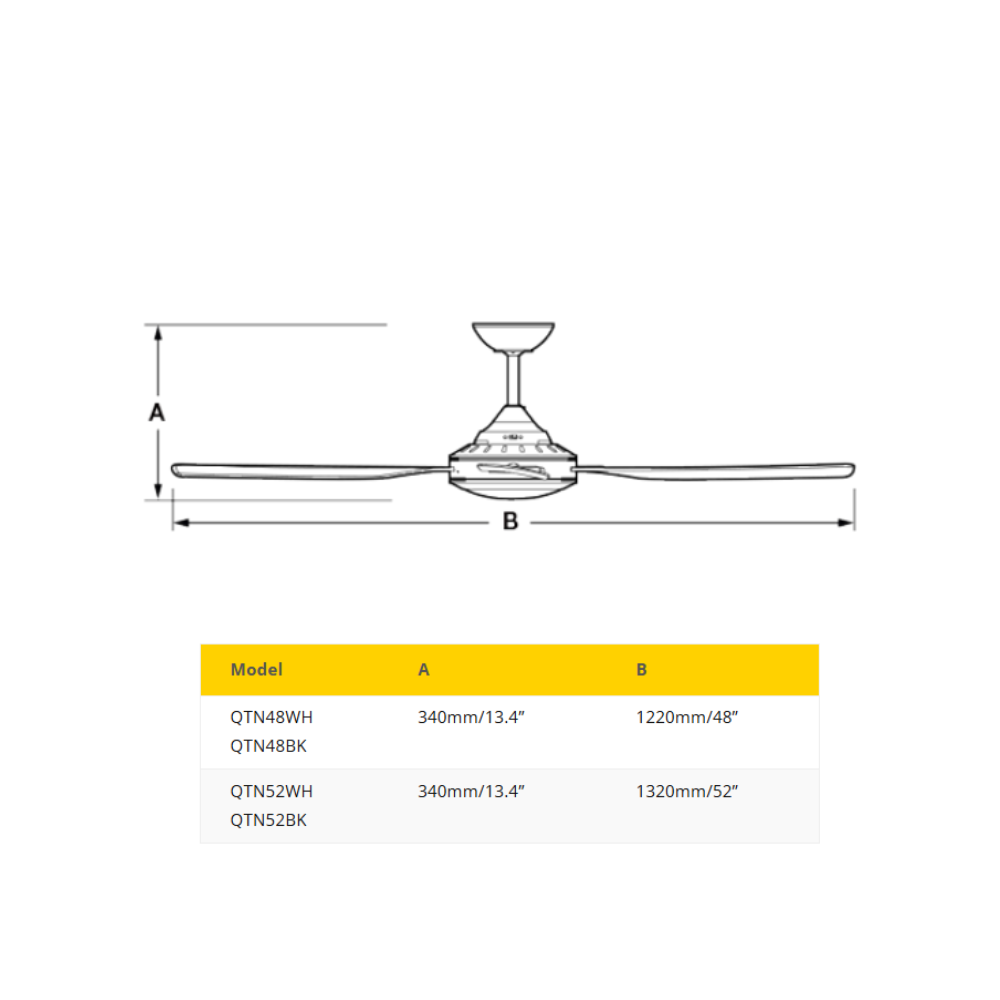

- Dimensions: A 34CM drop, B 122CM sweep
- Ceiling Slope: Up to 18°
- Colour: Black
- Optional Accessories: Downrods 90CM ROD900WH, 150CM ROD1500WH; Remote SFREMOTE
- Light Compatibility: Choose Quinton 48 Inch LED variants if light is needed
What's in the box
What's in the box
- [1] x Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | Black | 3 Speed Wall Controller Included
