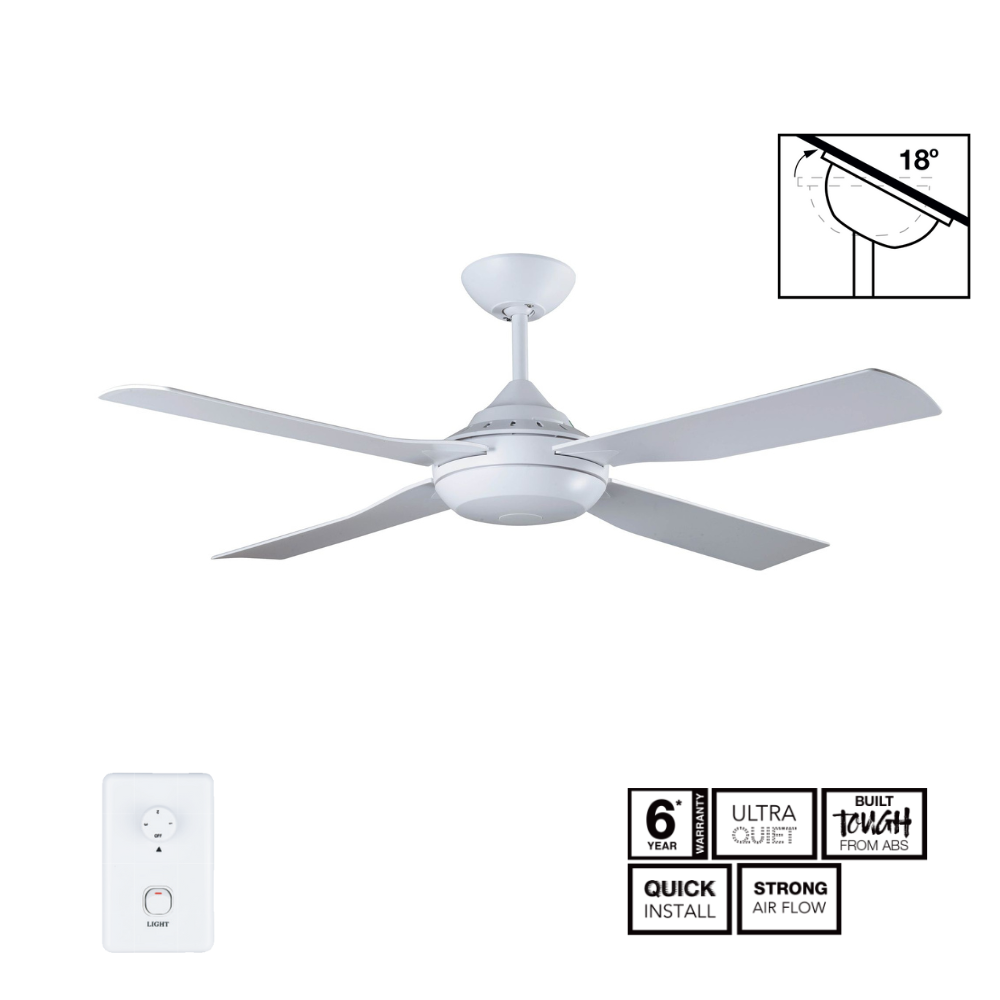

Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | White | 3 Speed Wall Controller Included
10560 M³/Hr | Indoor & Outdoor | Reversible AC Motor
Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | W...
Product Overview
| Model Number | QTN48WH |
| Airflow (M³/H) | 10560 |
| Motor Type | AC |
| Ceiling Fan Motor Power (W) | 75 |
| Fan Blade Span | 1220MM |
| Blade Material | ABS Plastics |
| Number of Blades | 4 |
| Light | Fan without Light |
| Voltage | 240V - 1 Phase |
| Installation Location | Indoor & Outdoor Undercover |
| Remote Control | No |
| Wall Switch | Yes - 3 Speed Wall Controller with Light Switch |
| Warranty | Fantech - 2 year in home warranty service plus another 4 years on parts. For details visit: fantechtrade.com.au/warranty |
Description
Description
The Fantech Quinton AC 4 Blade Ceiling Fan 1220MM (48" Inch) delivers strong air flow 10560 M3/Hr with a reliable AC motor and 3-speed wall controller included. Built from UV-resistant ABS and factory pre-balanced, it runs smoothly and quietly for long service life in indoor and covered outdoor areas.
Tradies and builders will appreciate fast installs thanks to quick-connect terminals and a hangsure style mount. Year-round comfort is simple with reversible rotation for summer cooling and winter recirculation. Optional downrods 90CM or 150CM are available for higher ceilings. For projects needing light, select the matching Quinton 48 Inch LED variant.
Choose the Quinton when you need a tough, tidy-looking 48-inch ceiling fan that hits the airflow spec without fuss on site.
Features
Features
- High airflow - 10560 M³/Hr for effective room circulation
- Reliable AC motor - proven performance with 3 speed wall control
- ABS construction - UV resistant blades and body for durability
- Quiet operation - pre balanced for smooth running
- Indoor and covered outdoor - versatile site applications

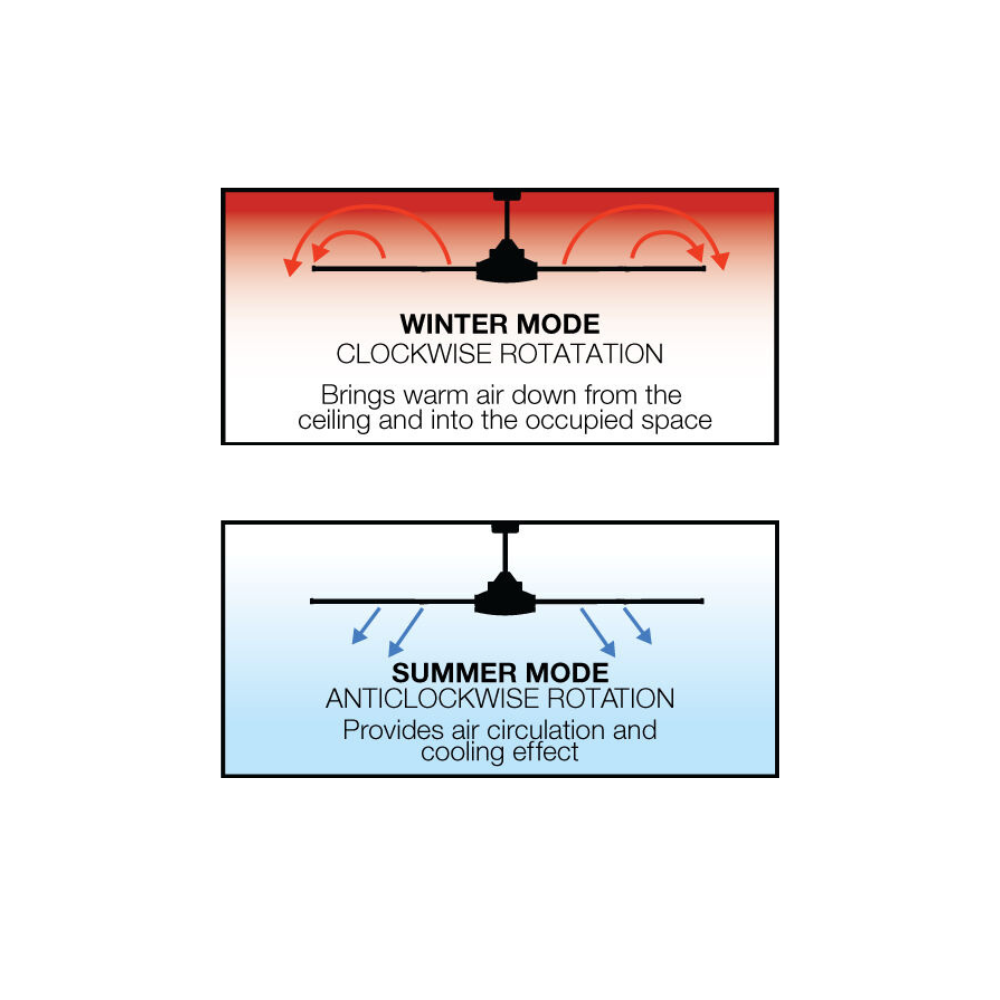

- Reversible rotation - summer and winter modes
- Installer friendly - quick connect terminals simplify wiring
- Downrod ready - optional 90CM or 150CM downrods
- Optional remote - add SFREMOTE for handheld control
Specifications
Specifications
- Model: QTN48WH
- Fan Size: 122CM (48" Inch)
- Max Air Flow: 10560 M³/Hr
- Motor Type: AC
- Power: 75W
- Supply: 220-240V 50Hz
- Speeds: 3 Speed Wall Controller Included
- Reverse Function: Yes
- Construction: ABS Blades and Body, UV Resistant
- Location: Indoor and Covered Outdoor

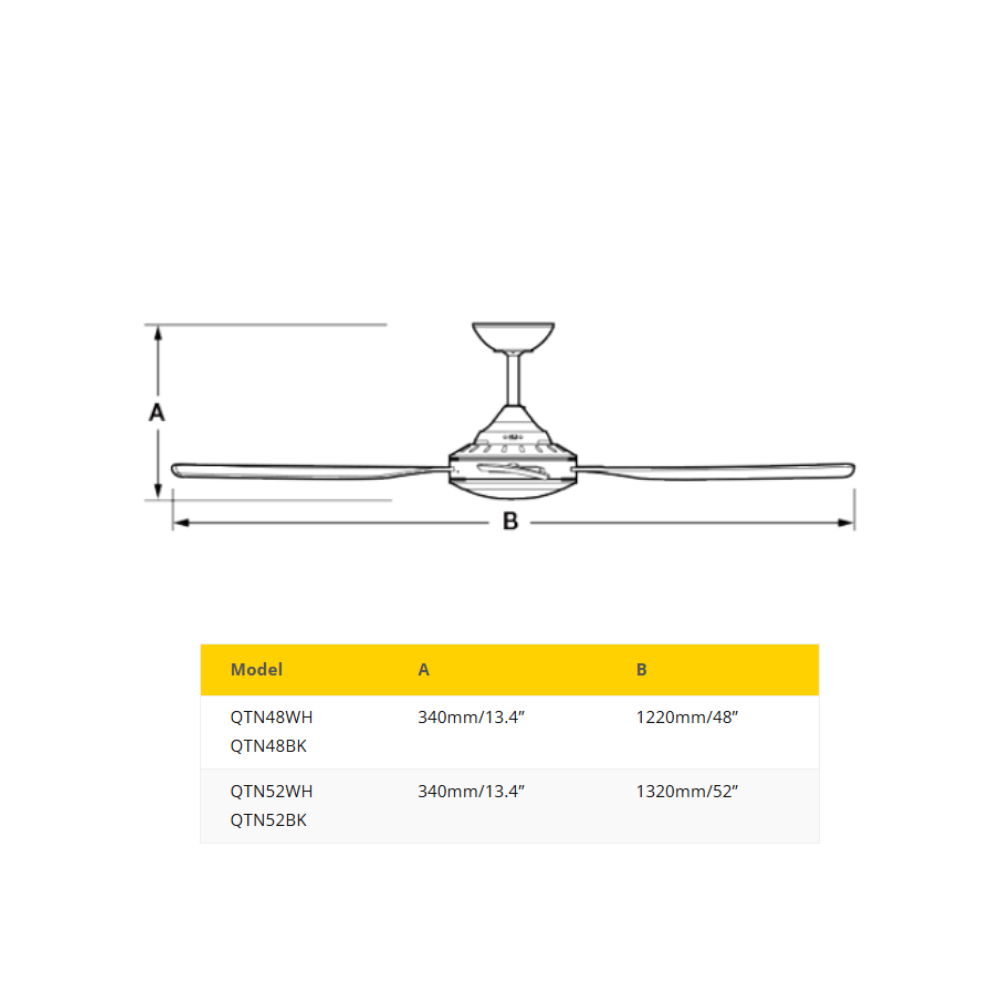

- Dimensions: A 34CM drop, B 122CM sweep
- Ceiling Slope: Up to 18°
- Colour: White
- Optional Accessories: Downrods 90CM ROD900WH, 150CM ROD1500WH; Remote SFREMOTE
- Light Compatibility: Choose Quinton 48 Inch LED variants if light is needed
What's in the box
What's in the box
- [1] x Fantech Quinton AC 4 Blade Ceiling Fan - 1220MM (48" Inch) | White | 3 Speed Wall Controller Included
