Fantech  |  SKU: CFAN10207

Fantech Quinton AC 4 Blade Ceiling Fan w/ 18W LED Light - 1220MM (48" Inch) | White | 3 Speed Wall Controller Included

10560 M³/Hr | Indoor & Outdoor | Reversible AC Motor

$324.95
Stock Availability (LIVE)

Online:
Click & Collect

Lidcombe:

Product Overview
Model Number QTN48BK
Airflow (M³/H) 10560
Motor Type AC
Ceiling Fan Motor Power (W) 75
Fan Blade Span 1220MM
Blade Material ABS Plastics
Number of Blades 4
Light Fan with Light
Light Wattage (W) 18
Voltage 240V - 1 Phase
Installation Location Indoor & Outdoor Undercover
Remote Control No
Wall Switch Yes - 3 Speed Wall Controller with Light Switch
Warranty Fantech - 2 year in home warranty service plus another 4 years on parts. For details visit: fantechtrade.com.au/warranty

Description

The Fantech Quinton AC 4 Blade Ceiling Fan 1220MM with 18W LED light delivers air flow 10560 M3/Hr from a dependable 75W AC motor. Its tri-colour LED lets you select 3000K, 4000K or 5700K to match the space.

Built from UV-resistant ABS and factory pre-balanced, it runs smoothly and quietly in indoor and covered outdoor areas. Installers get quick-connect terminals, a 3-speed wall controller with light switch, and mounting for up to 180 ceiling slope. For higher ceilings, add 90CM or 150CM downrods, or fit the optional SFREMOTE kit.

Choose Quinton when you want a clean-looking 48-inch ceiling fan that meets airflow specs, includes a bright 18W LED, and goes in fast on site.

Features

  • High airflow - 10560 M³/Hr for effective circulation
  • 18W tri colour LED - switchable 3000K, 4000K, 5700K
  • Reliable AC motor - 75W with 3 speed wall control
  • ABS construction - UV resistant blades and body
  • Quiet operation - pre balanced to reduce wobble
  • Indoor and covered outdoor - versatile site applications

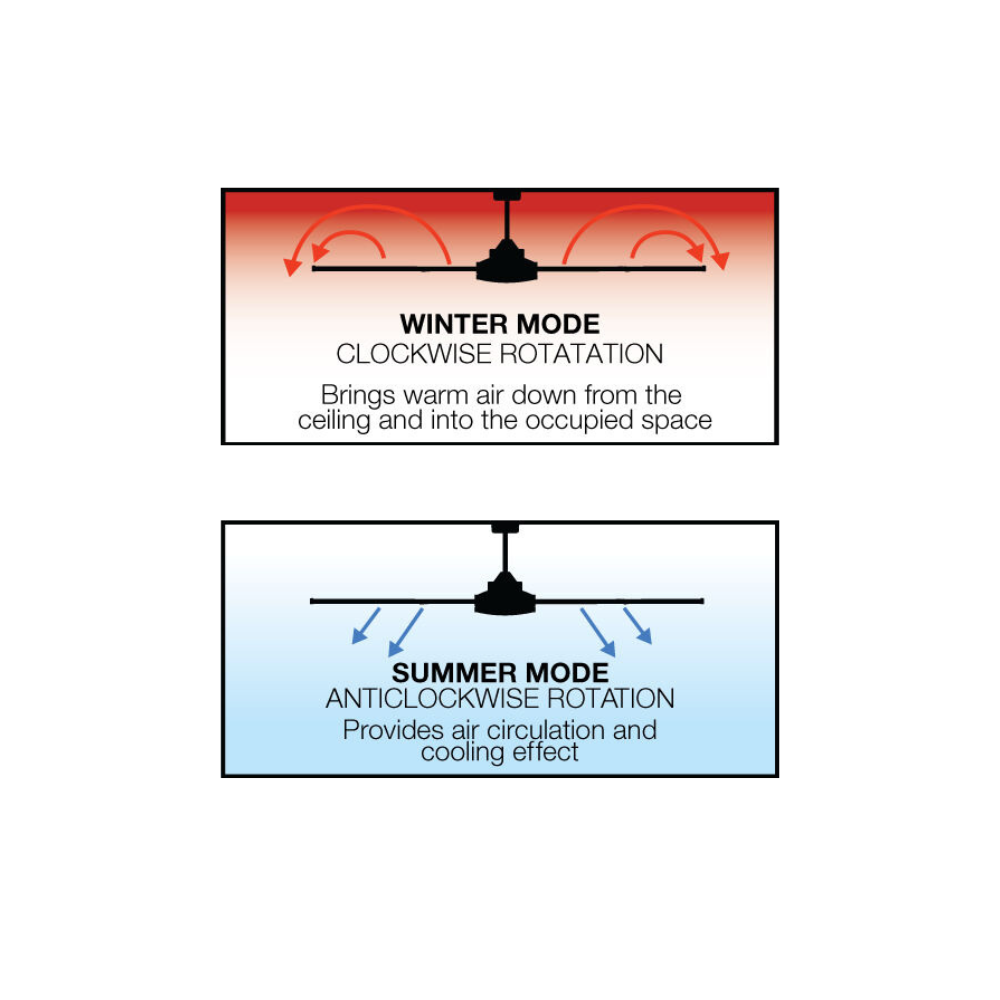

  • Reversible rotation - summer and winter modes
  • Installer friendly - quick connect terminals simplify wiring

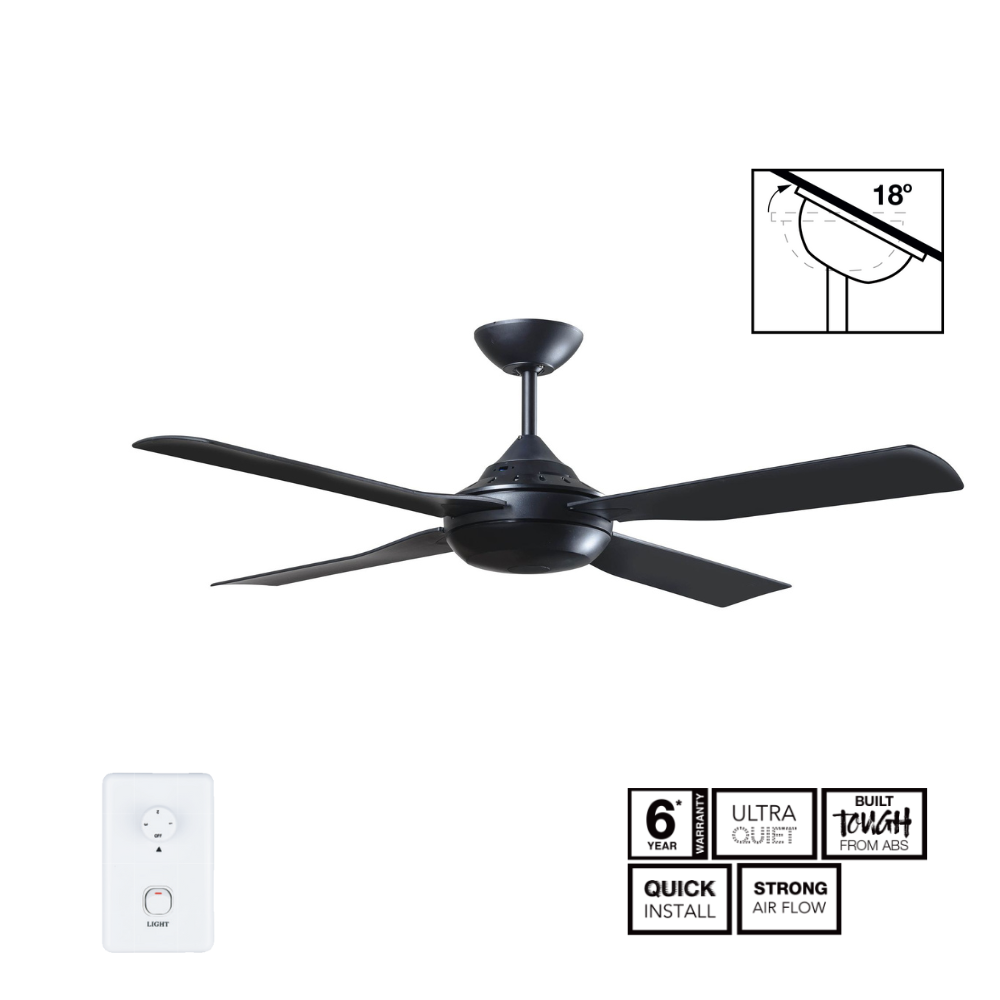

  • Slope capable - suits ceilings up to 18°
  • Accessory ready - optional 90CM or 150CM downrods and SFREMOTE

Specifications

  • Model: QTN48BK-LED
  • Fan Size: 122CM (48" Inch)
  • Max Air Flow: 10560 M³/Hr
  • Motor Type: AC
  • Power: 75W
  • Supply: 220-240V 50Hz
  • Speeds: 3 Speed Wall Controller Included
  • Reverse Function: Yes
  • Construction: ABS Blades and Body, UV Resistant
  • Location: Indoor and Covered Outdoor

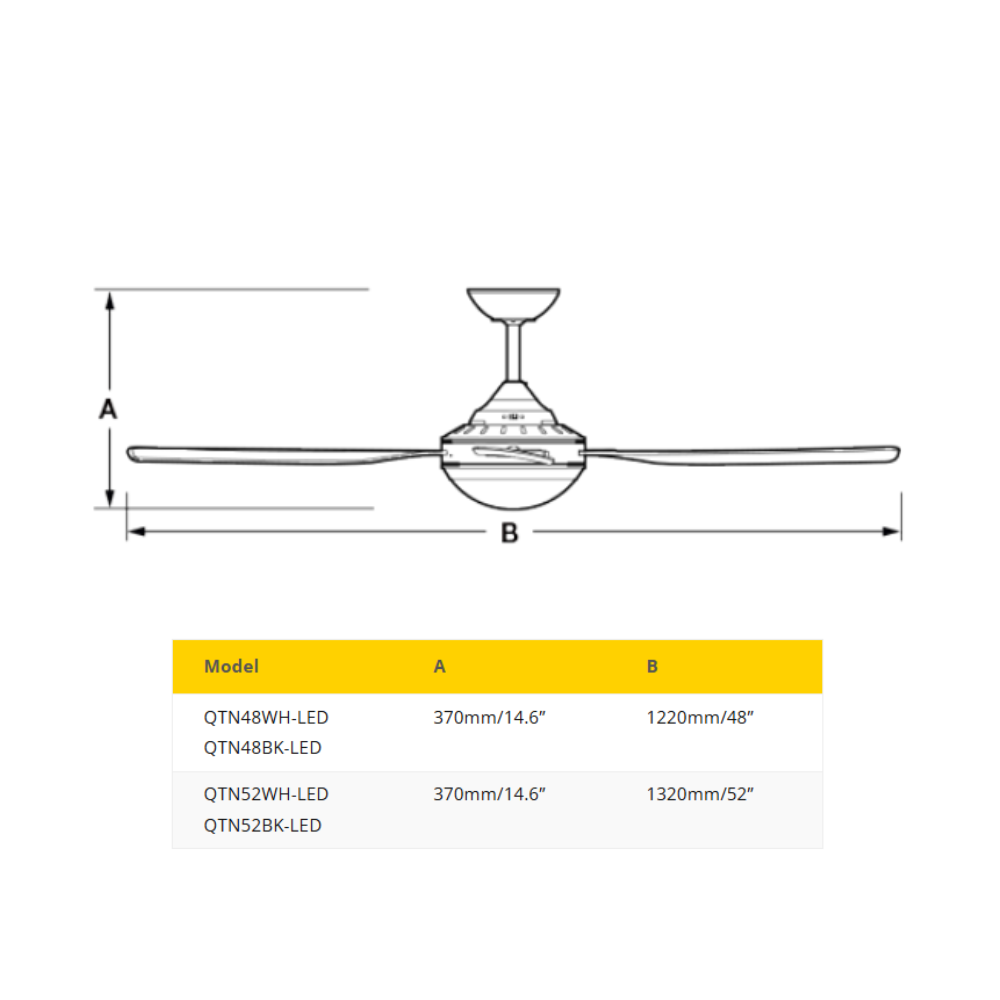

  • Dimensions: A 37CM drop, B 122CM sweep
  • Ceiling Slope: Up to 18°
  • Colour: Black
  • LED Light: 18W Tri Colour 3000K / 4000K / 5700K
  • LED Output: 1225 lm / 1450 lm / 1350 lm
  • Optional Accessories: ROD900WH, ROD1500WH, SFREMOTE

What's in the box

  • [1] x Fantech Quinton AC 4 Blade Ceiling Fan w/ 18W LED Light - 1220MM (48" Inch) | Black | 3 Speed Wall Controller Included
