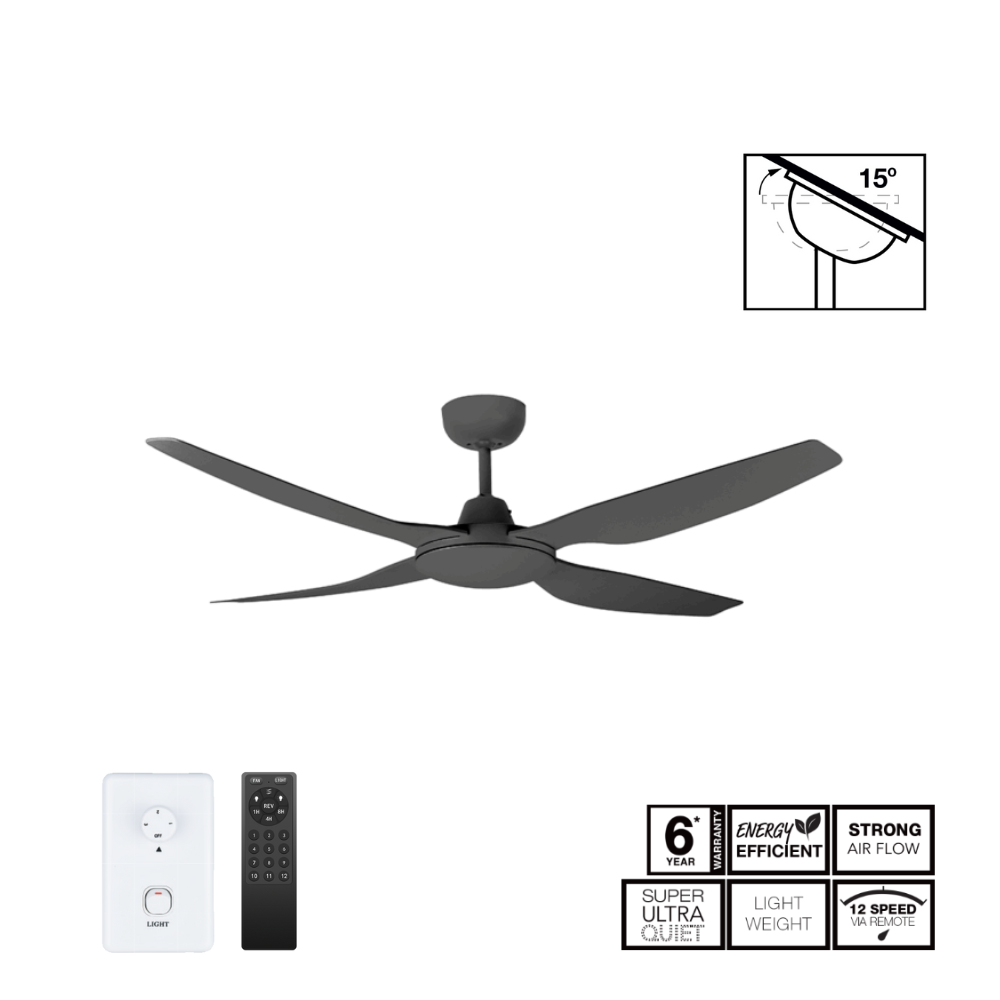

Fantech Quinton DC 4 Blade Ceiling Fan - 1220MM (48" Inch) | Black | w/ Wall Switch & Remote Control

Fantech Quinton DC 4 Blade Ceiling Fan 1220MM delivers high-performance 13200 M3/H airflow with an energy-efficient DC motor. Supplied with both a 12-speed remote and a 3-speed wall controller for flexible installs, it suits indoor and covered outdoor areas across Australian homes and light commercial spaces.

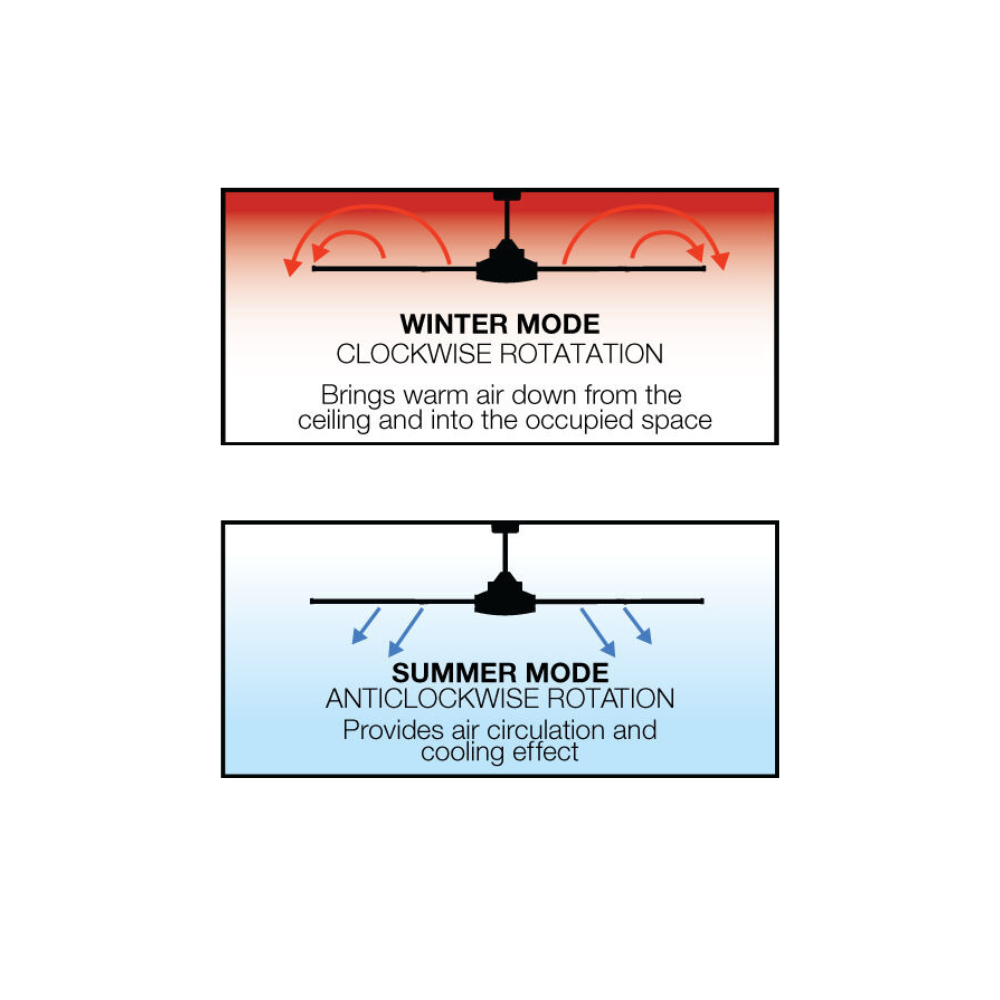

Built with durable ABS blades and engineered for quiet operation, Quinton DC is pre-balanced for smoother running and faster commissioning. The fan includes forward and reverse for summer and winter use, quick-connect terminals for time-saving installation, and can be mounted on ceilings up to 150 pitch. An optional 20W CCT LED light kit is available when you need integrated lighting.

Ideal for tradies, builders, and maintenance teams who want a reliable, low power draw ceiling sweep fan that moves serious air and keeps callbacks to a minimum.

Note: The wall controller and remote are supplied, but cannot be used together at the same time. Choose one control method per install.

• High airflow 13200 M³/H from optimised blade geometry.
• Energy efficient DC motor with super quiet operation.
• 12 speed remote with on off, timer, dimming for light kit, natural wind, and reverse.
• 3 speed wall controller with light switch included for simple installs.
• Indoor and covered outdoor application ready with durable ABS construction.
• Quick connect terminals for fast wiring and commissioning.
• 15° max ceiling pitch mounting capability.
• Optional 20W CCT LED light kit warm, cool, daylight, dimmable via remote.

• Brand: Fantech Trade
• Model: QTNDC48BK
• Colour: Black

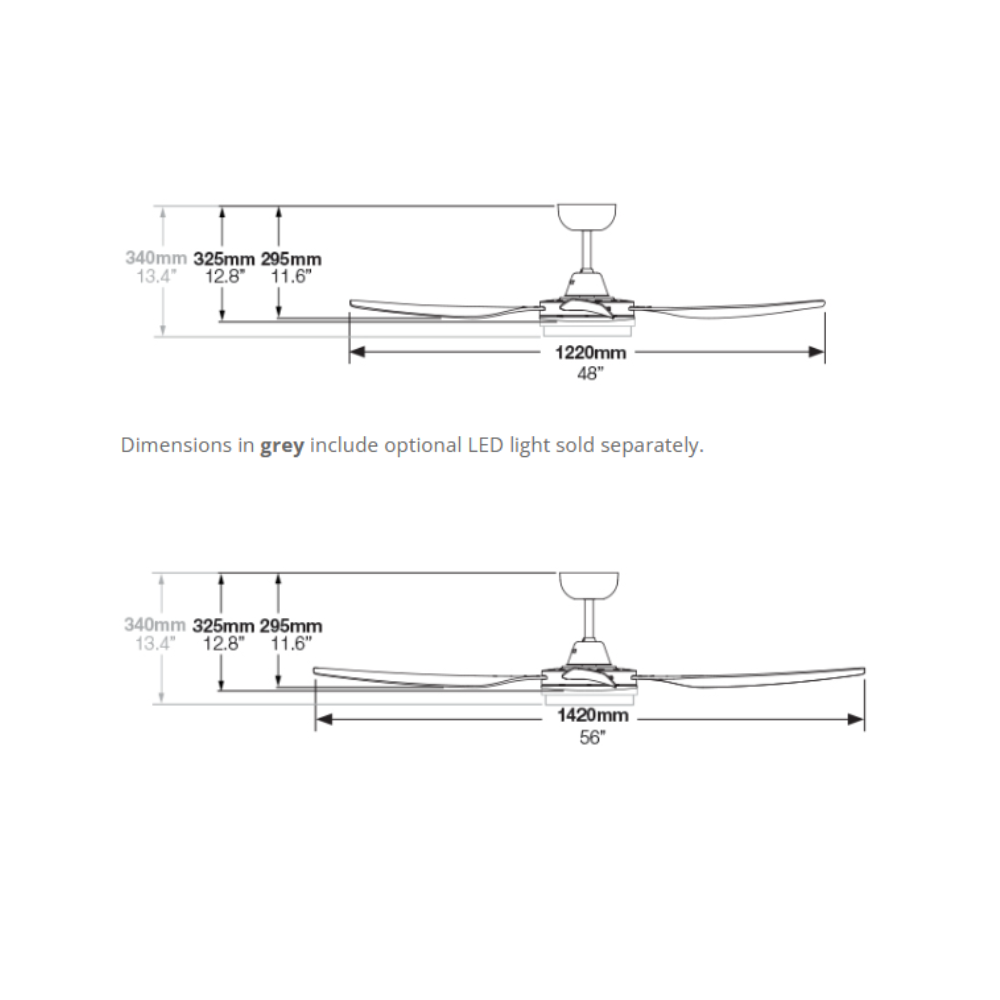

• Sweep Size: 1220MM (48" Inch) ≈ 122 cm
• Max Airflow: 13200 M³/H
• Motor: DC
• Power Consumption: 40W (max)
• Voltage Frequency: 220-240V 50Hz
• Speed Settings: Remote 12 | Wall 3
• Controls Included: Remote or wall controller (one method only)
• Reversible: Yes
• Blade Material: ABS
• Mounting: Max ceiling angle 15°
• Location Rating: Indoor and covered outdoor
• Light Kit: Optional 20W CCT LED (3000K 4000K 5000K) dimmable via remote
• Optional Downrods: 900 cm and 150 cm lengths available in white or black

• [1] x Fantech Quinton DC 4 Blade Ceiling Fan  - 1220MM (48" Inch) | Black | w/ Wall Switch & Remote Control
