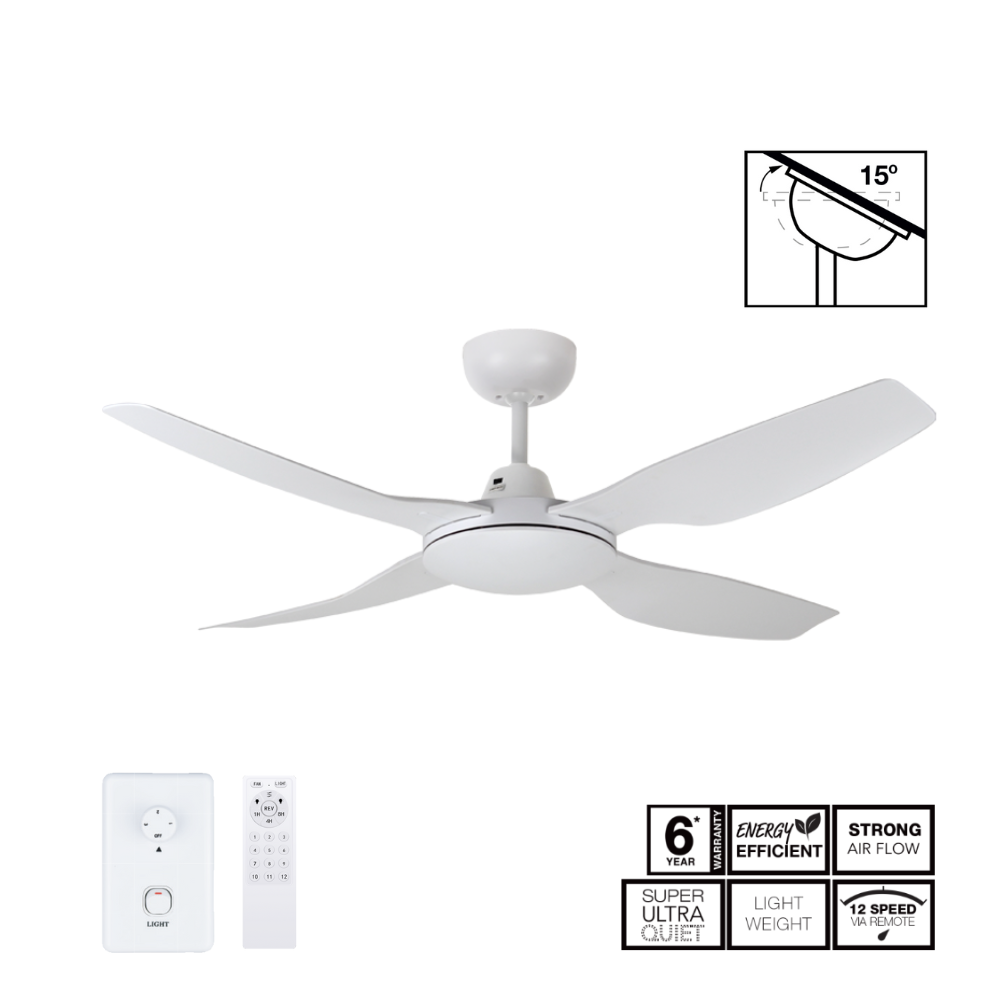

Fantech Quinton DC 4 Blade Ceiling Fan - 1420MM (56" Inch) | White | w/ Wall Switch & Remote Control

Fantech Quinton DC 4 Blade Ceiling Fan 1420MM moves a serious 14580 M3/H while drawing just 40W at max. The high-quality DC motor and optimised blade geometry deliver strong air movement with super quiet operation in indoor and covered outdoor areas.

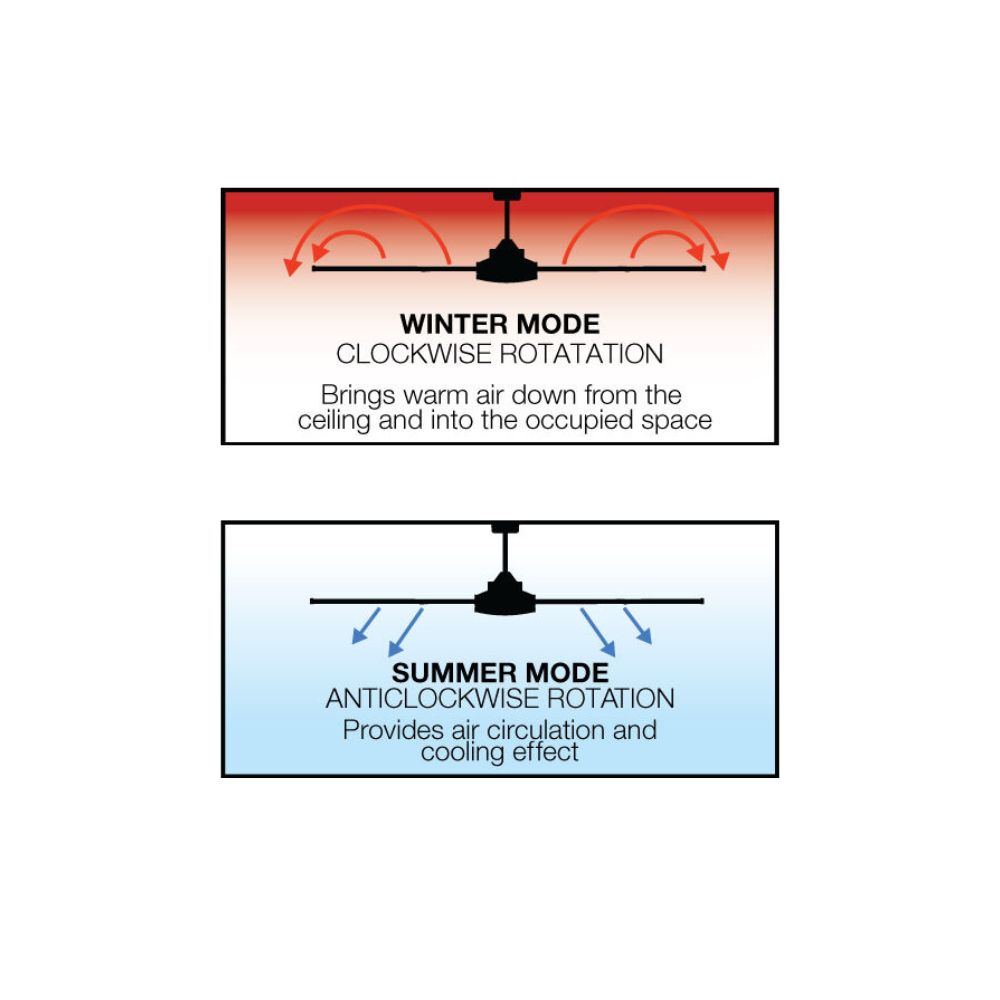

Each fan ships with a 12-speed remote and a 3-speed wall controller to suit different installs. The unit is reversible for summer and winter use, includes quick-connect terminals for faster wiring, and can be installed on ceilings up to 150 pitch. An optional 20W CCT LED light kit is available when integrated lighting is required.

Install note: The wall controller and remote are supplied, but cannot be used at the same time. Select one control method per install.

• High airflow 14580 M³/H for large rooms and alfresco areas.
• Energy efficient DC motor with super quiet operation.
• 12 speed remote with on off, timer, natural wind and reverse.
• 3 speed wall controller with light switch included.
• Indoor and covered outdoor ready with durable ABS blades.
• Quick connect terminals to speed up commissioning.
• 15° max ceiling pitch mounting capability.
• Optional 20W CCT LED light kit warm, cool, daylight and dimmable via remote.

• Brand: Fantech Trade
• Model: QTNDC56WH
• Colour: White

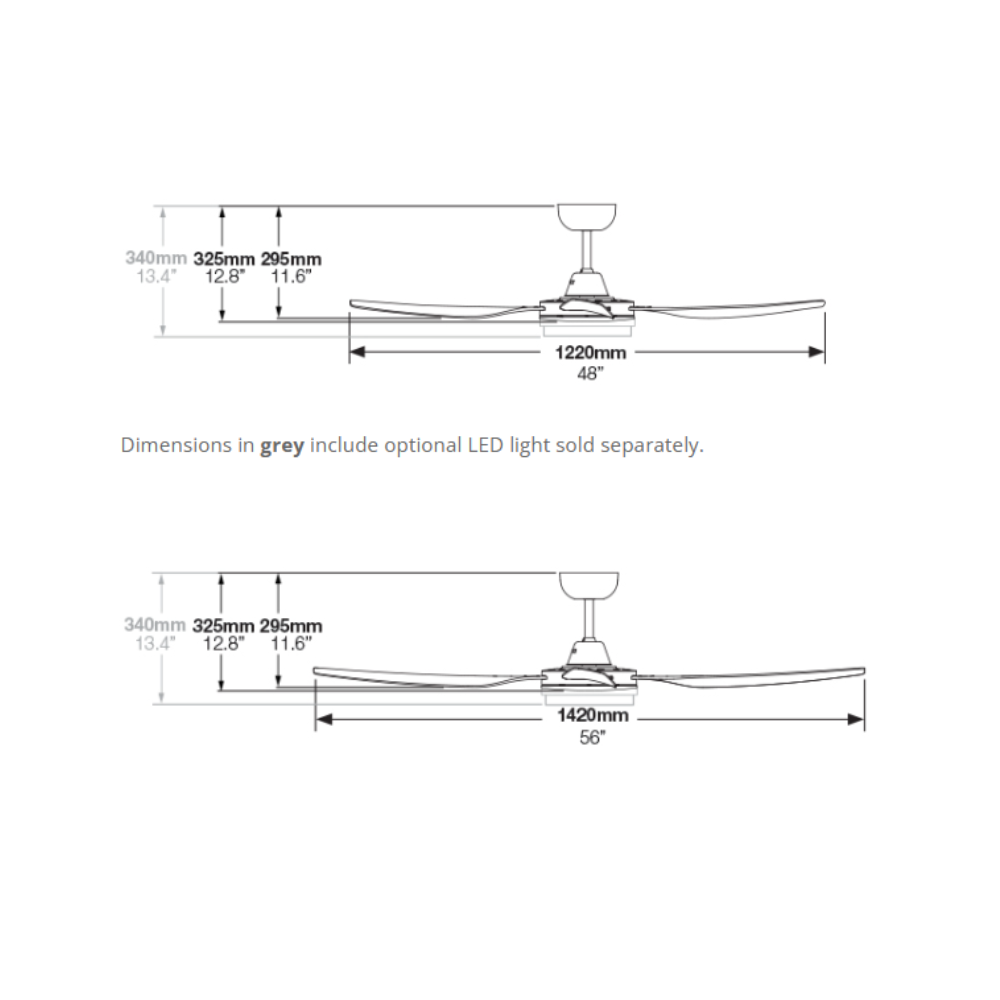

• Sweep Size: 1420MM (56" Inch)
• Max Airflow: 14580 M³/H
• Motor: DC
• Power Consumption: 40W (max)
• Voltage Frequency: 220-240V 50Hz
• Speed Settings: Remote 12 | Wall 3
• Controls Included: Remote or wall controller
• Reversible: Yes
• Blade Material: ABS
• Mounting: Max ceiling angle 15°
• Location Rating: Indoor and covered outdoor
• Light Kit: Optional 20W CCT LED 3000K 4000K 5000K
• Optional Downrods: 900mm and 1500mm in white or black
