Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan
Air Flow 216 M³/H | Power Consumption 30W | IPX4
Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan
Description
Description
The Fantech Rapid Response 200 is a premium, ultra-quiet ceiling exhaust fan designed for effective removal of odours, steam, and damp air in small spaces like toilets, powder rooms, laundries, and cupboards. Engineered with advanced impeller and housing technology, this compact unit delivers powerful airflow while maintaining whisper-quiet performance at just 29 dB(A).
With the ability to retrofit into standard 8 round fan cut-outs, it is ideal for both renovations and new installations. The low-resistance backdraft damper ensures maximum airflow efficiency, while the sealed-for-life ball bearings offer long-lasting, maintenance-free performance.

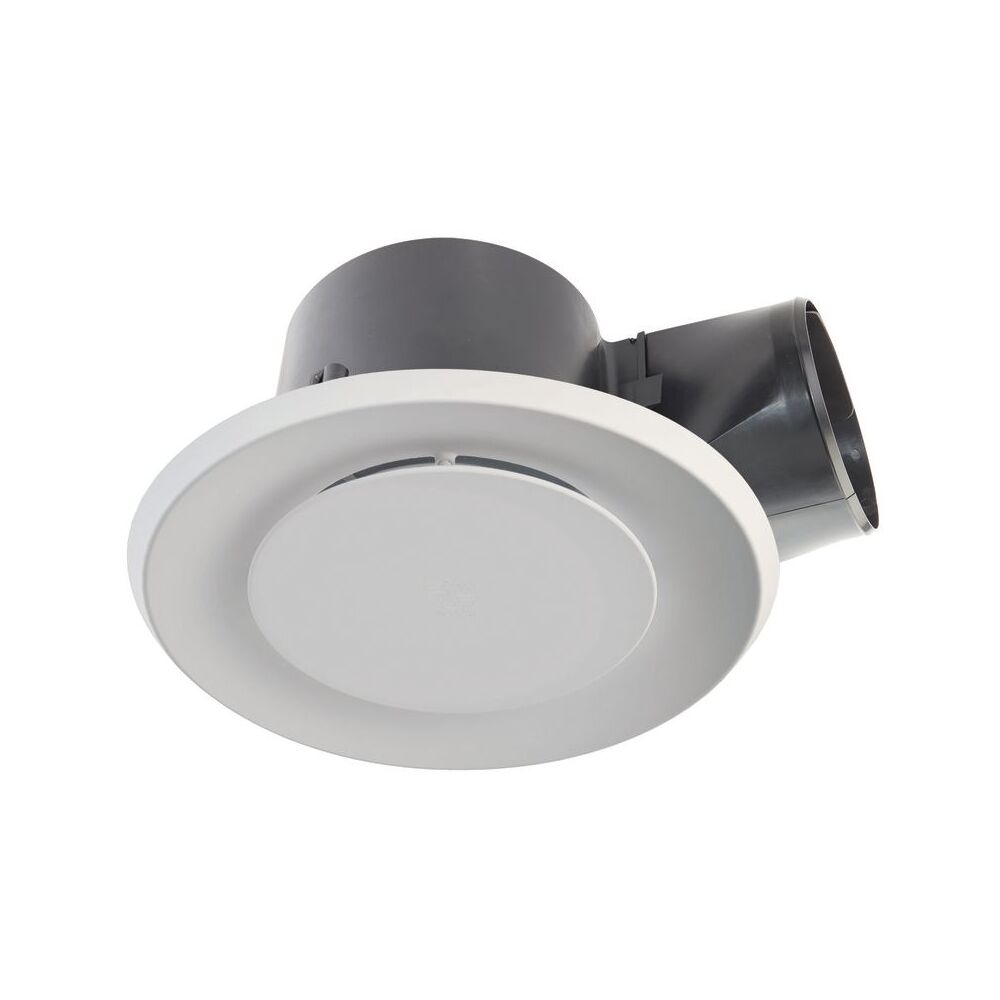

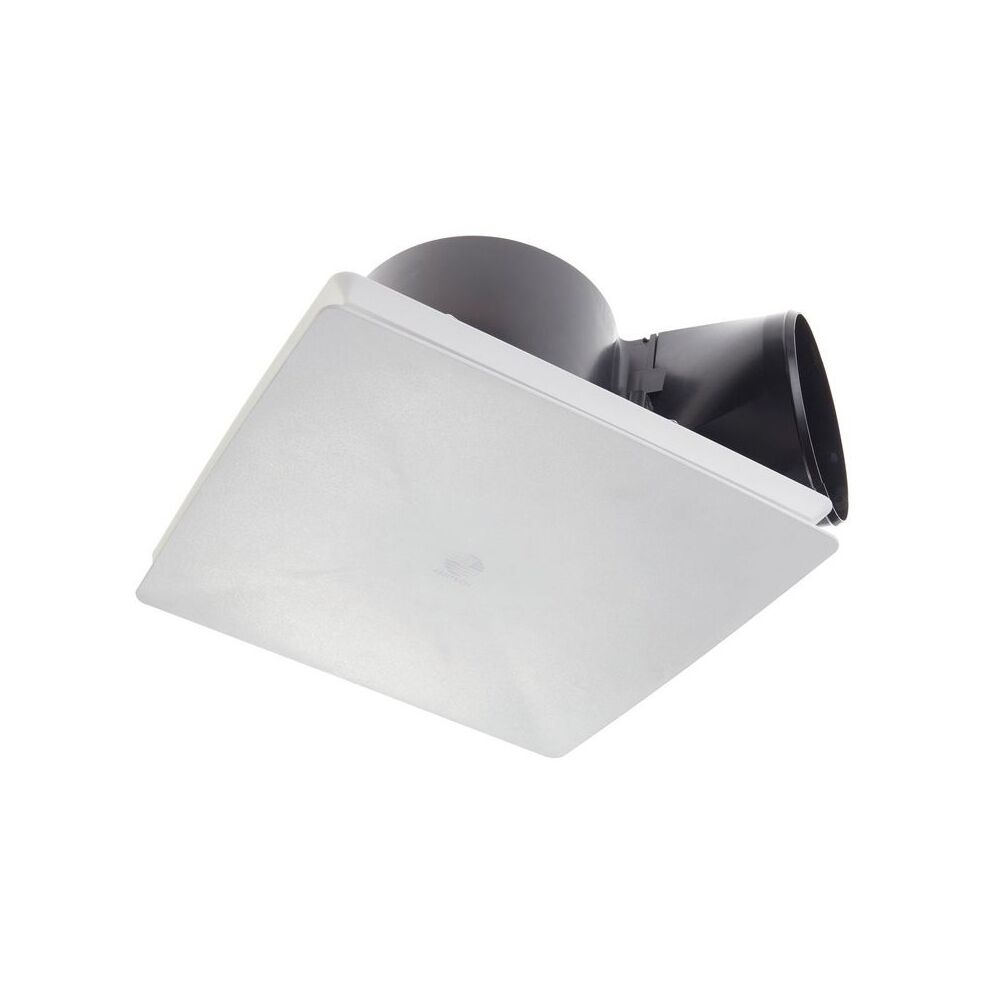

Choose between modern square or round grilles, available in stylish black or white finishes to perfectly complement your interior decor. The square grille can be easily rotated for wall alignment, adding to its installation flexibility.
The integrated LED light offers tri-colour temperature settings-warm white (3000K), neutral white (4200K), and cool white (6000K)-allowing customisation to match your interior lighting.
The Rapid Response 200 is available with or without a 3-15 minute adjustable run-on timer (Model RESPF8-T), making it compliant with the latest NCC 2022 building regulations for continuous ventilation.

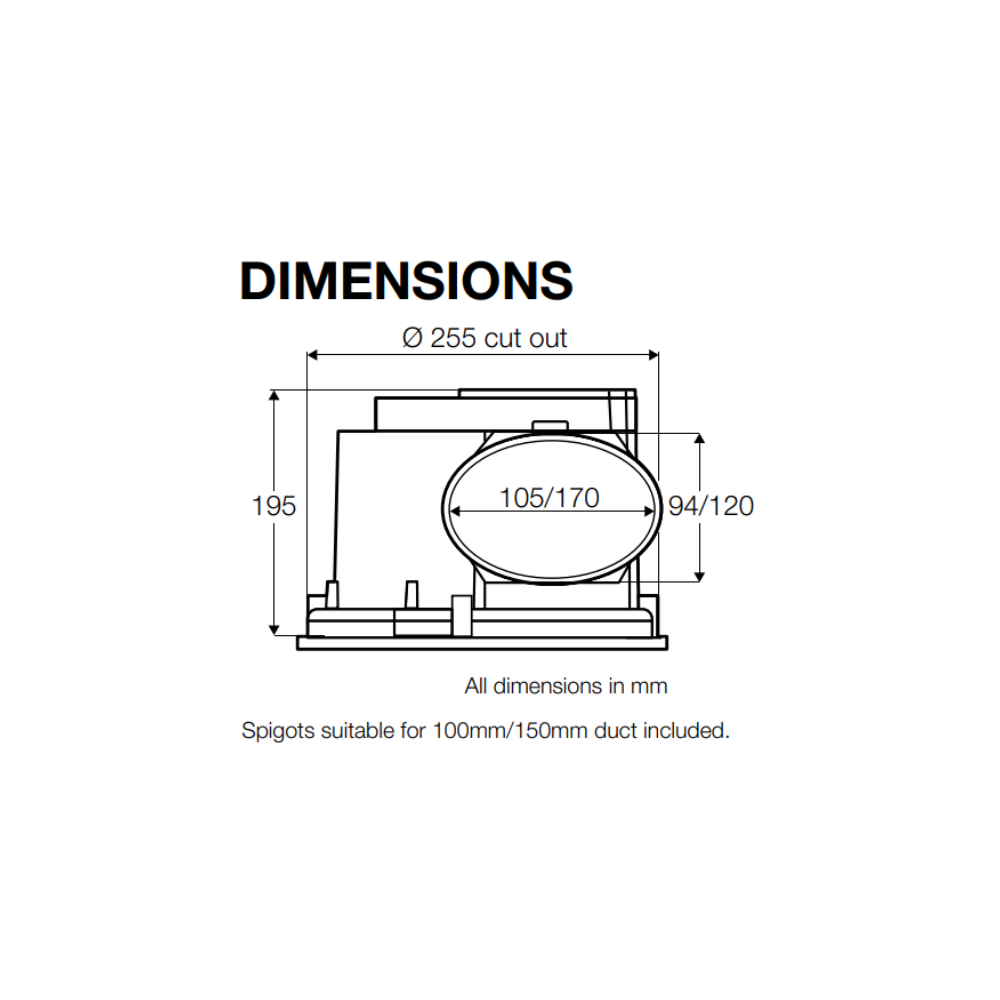

Dimesions
All dimensions in mm
Features
- Ultra Quiet Operation - Low noise level at only 29 dB(A)
- High Airflow Efficiency - Delivers 216 m3/h airflow
- Advanced Impeller & Housing Design - Powerful performance with minimal noise
- Retrofit Compatible - Fits standard 8 round cut-outs
- Integrated Non-Return Backdraft Damper - Prevents air backflow

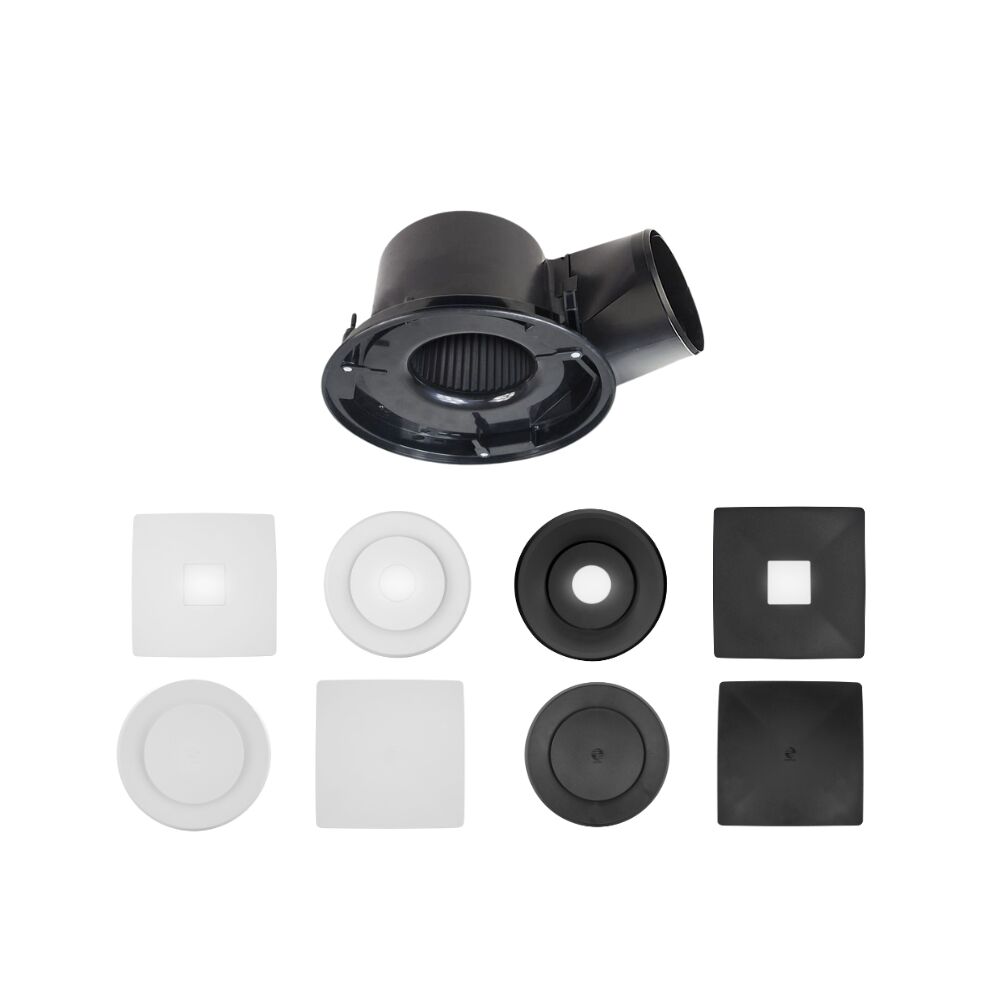

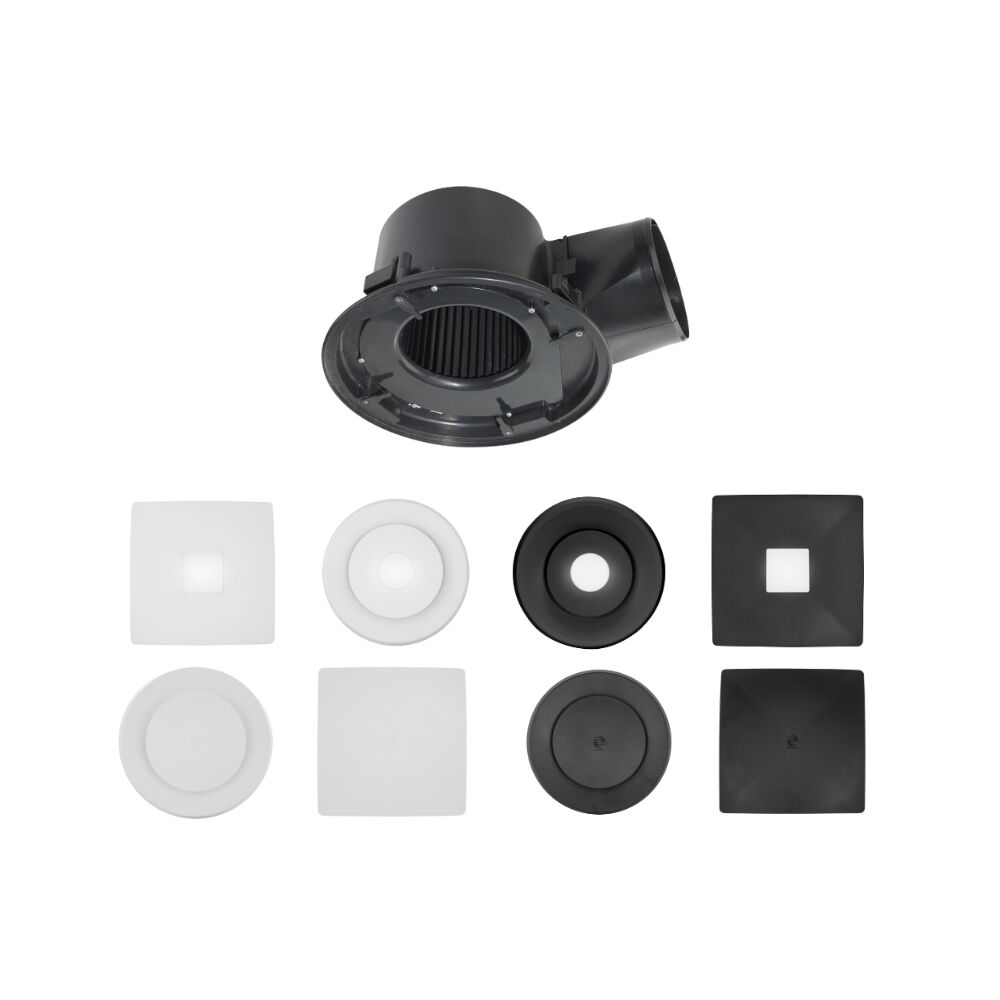

- Flexible Grille Options - Round or square grilles in black or white
- Tri-Colour LED Lighting - Warm (3000K), Neutral (4200K), Cool (6000K)
- Easy Installation - High-strength swing clips & removable spigot
- Suits 100mm and 150mm Duct Sizes
- Rated for Continuous Run
Installation

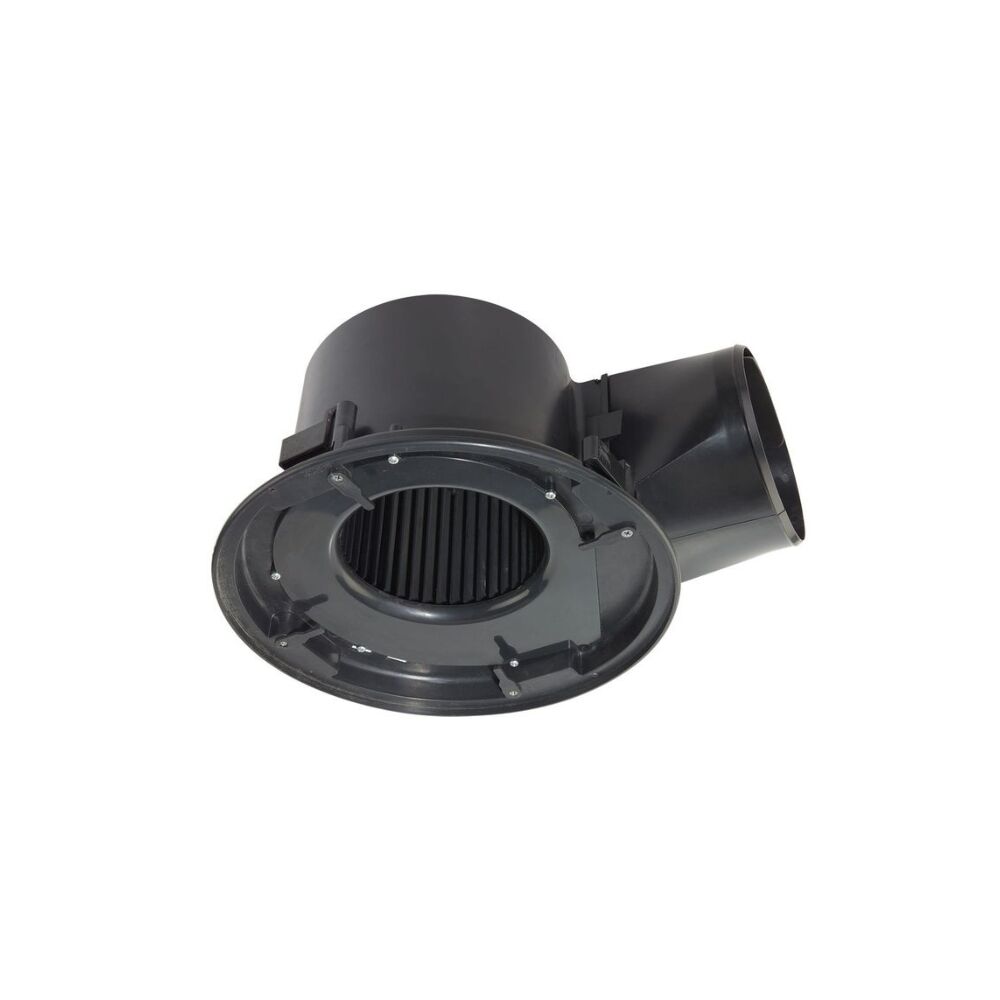

Fan Body
1. Rotate swing clips to hold the fan body in place.
2. Tighten screws so clips clamp onto ceiling board.
Long clip-in spigot makes installation & duct connection easier.
Features
Features
Specifications
Specifications
| Model No. | Description | Air Flow (m³/hr) | Air Flow (L/sec) | Fan Speed (RPM) | Noise @ 3m dB(A) | Power (W) | LED Power (W) | Voltage (V) | Run-On Timer |
|---|---|---|---|---|---|---|---|---|---|
| RESPF8 | Fan Body | 216 | 60 | 950 | 29 | 30 | - | 230-240 | No |

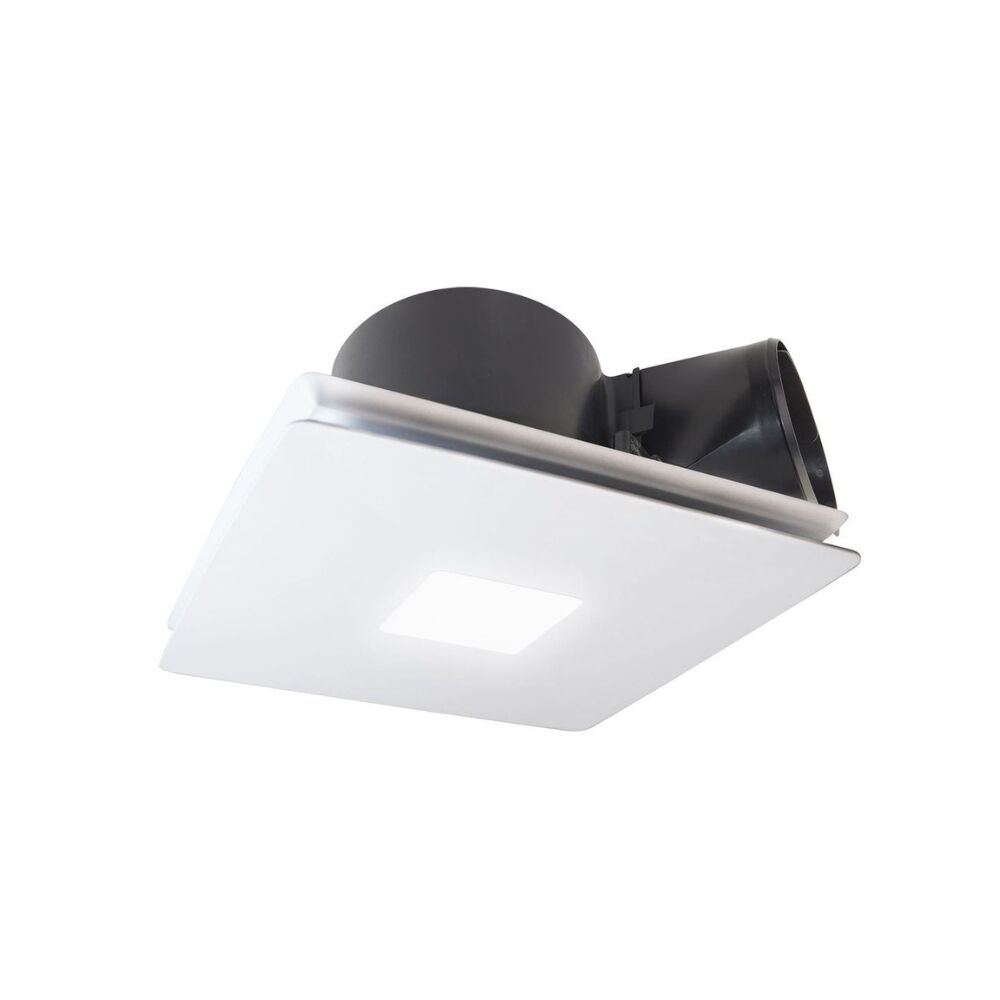

| RESPF8 + RESPG8-SQWH-TRILED | Fan Body with Square LED Grille | 216 | 60 | 950 | 29 | 30 | 12 | 230-240 | No |

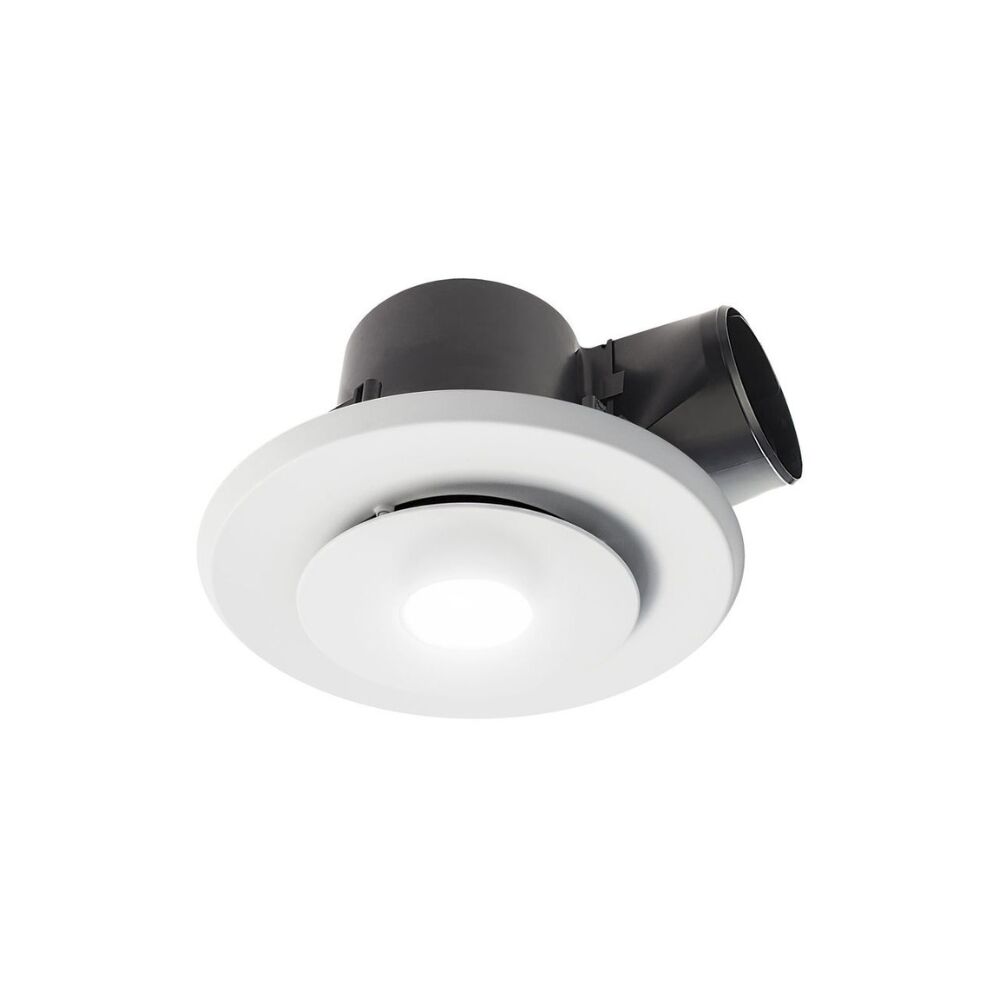

| RESPF8 + RESPG8-RNWH-TRILED | Fan Body with Round LED Grille | 216 | 60 | 950 | 29 | 30 | 9 | 230-240 | No |
Special Note:
- The timer model RESPF8-T includes a 4-pin plug and lead compatible with HPM 33 or Clipsal 413/4P-WE bases (4-pin sockets).
What's in the box
What's in the box
[1] x Fantech Rapid Response 200 Ultra Quiet Ceiling Exhaust Fan
Downloads
Downloads
- Specification Sheet - Click Here
