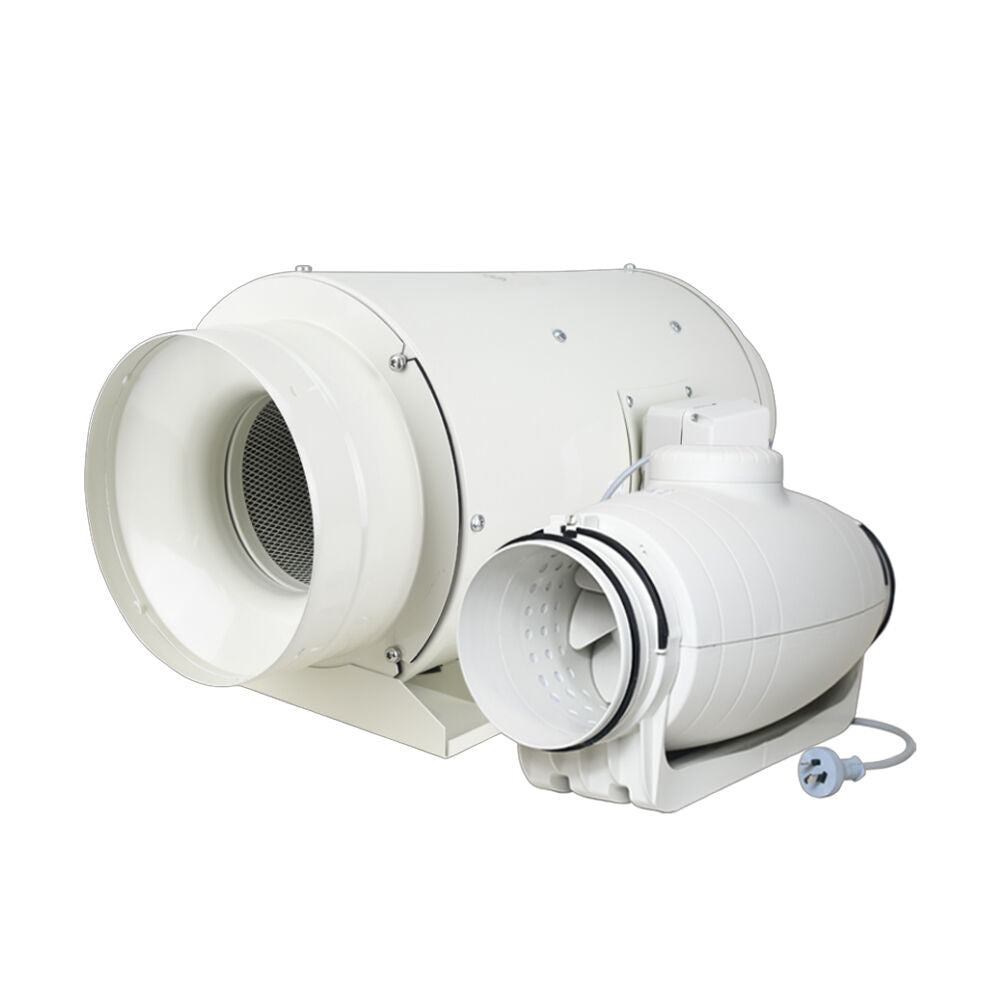

Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 100MM (4" Inch)

The Fantech TD Silent 100MM In-Line Duct Mounted AC Exhaust Fan is engineered with advanced mixed-flow technology to deliver high-performance air extraction with minimal noise output. Designed for apartments, hotels, offices, and noise-sensitive areas, this compact fan ensures efficient ventilation without disturbing the comfort of surrounding rooms.

With vibration absorbing elements, an innovative aerodynamic body, and rubber gaskets to reduce air leakage, the TD Silent series is widely recognised as one of the quietest in-line fans in its class. The fan includes a convenient 2-speed motor (factory set to high speed), a plug and lead for simple installation, and a 3600 rotating junction box for easy wiring access. Its integral mounting foot provides fast installation, while the fan body can be removed without disturbing ductwork for hassle-free maintenance.

Perfect for domestic and light commercial ventilation applications across Australia, this fan combines low noise, energy efficiency, and long-term durability to provide a reliable solution for fresh and healthy indoor air.

• High Performance Mixed-Flow Impeller: Delivers powerful airflow while maintaining quiet operation.
• Low Noise Design: Integrated vibration-absorbing elements reduce sound levels.

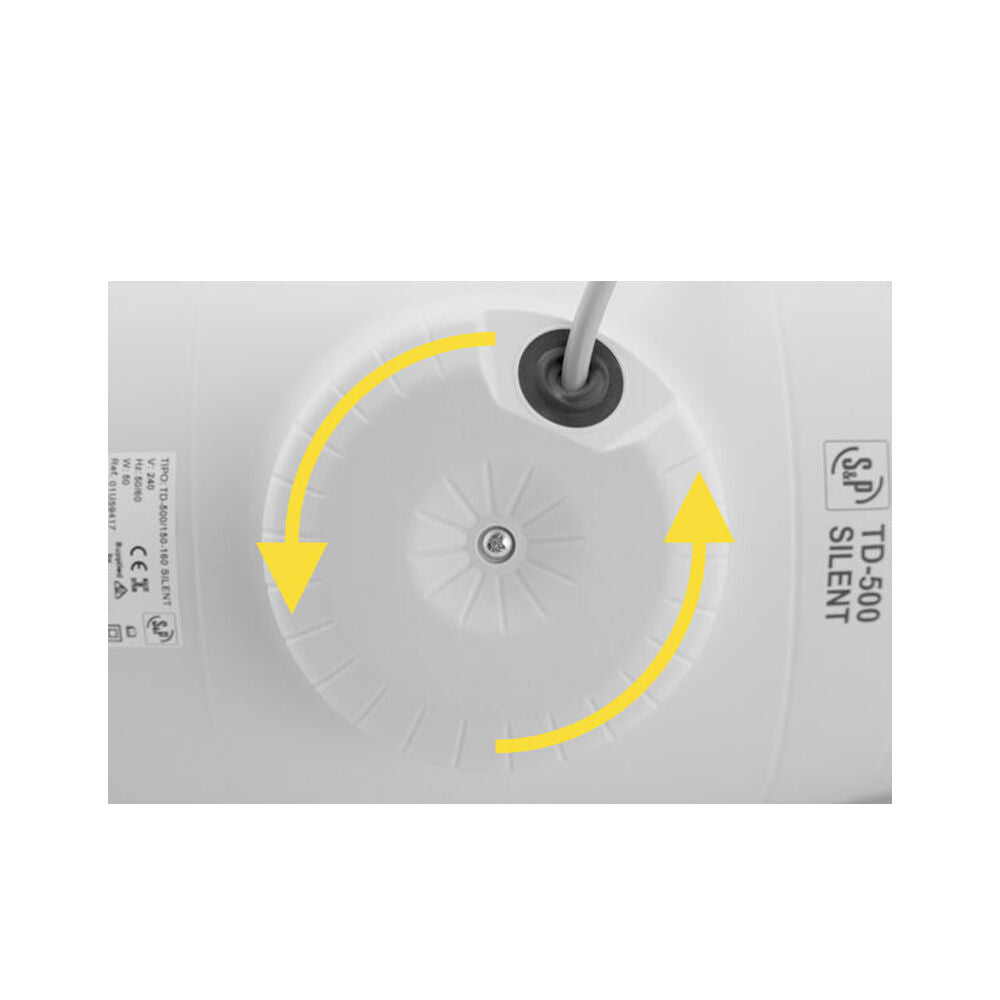

• 360° Rotating Junction Box: Simplifies power cable connection (100–200mm models only).
• Integral Mounting Foot: Easy and secure installation.
• Plug and Lead Included: Saves time and effort during installation.
• 2-Speed Motor: Factory set to high speed for maximum efficiency.
• Service Friendly: Fan body can be removed without disturbing ductwork.

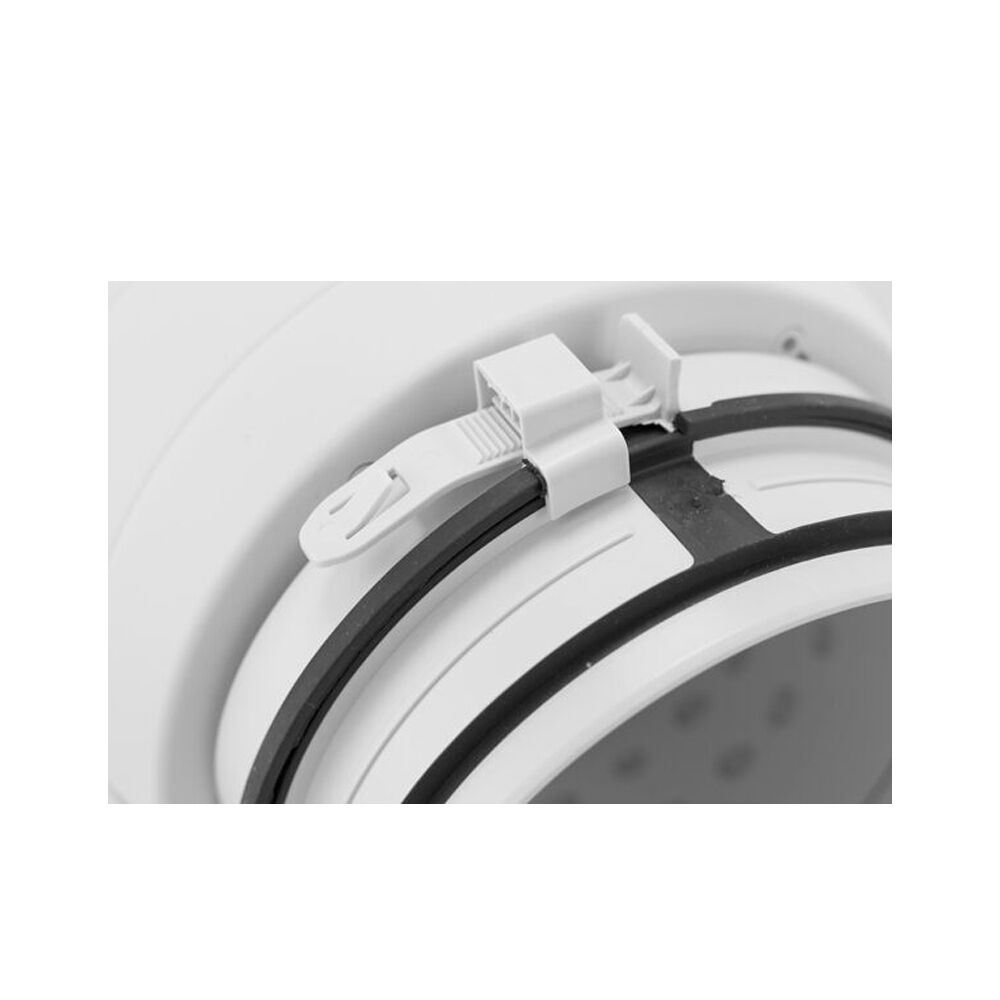

• Durable Build: Rubber gaskets help reduce air leakage and absorb vibration.

• Model Number: TD-EVO-100VAR
• Airflow: 240 m³/h (66 L/s)
• Fan Speed: 2200 RPM
• Average Noise @ 3m: 36 dB(A)
• Power: 24 W
• Max Ambient Temp: 60 °C
• Voltage: 220 - 240 V

• [1] x Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 100MM (4" Inch)

• Specification Sheet - Click Here
