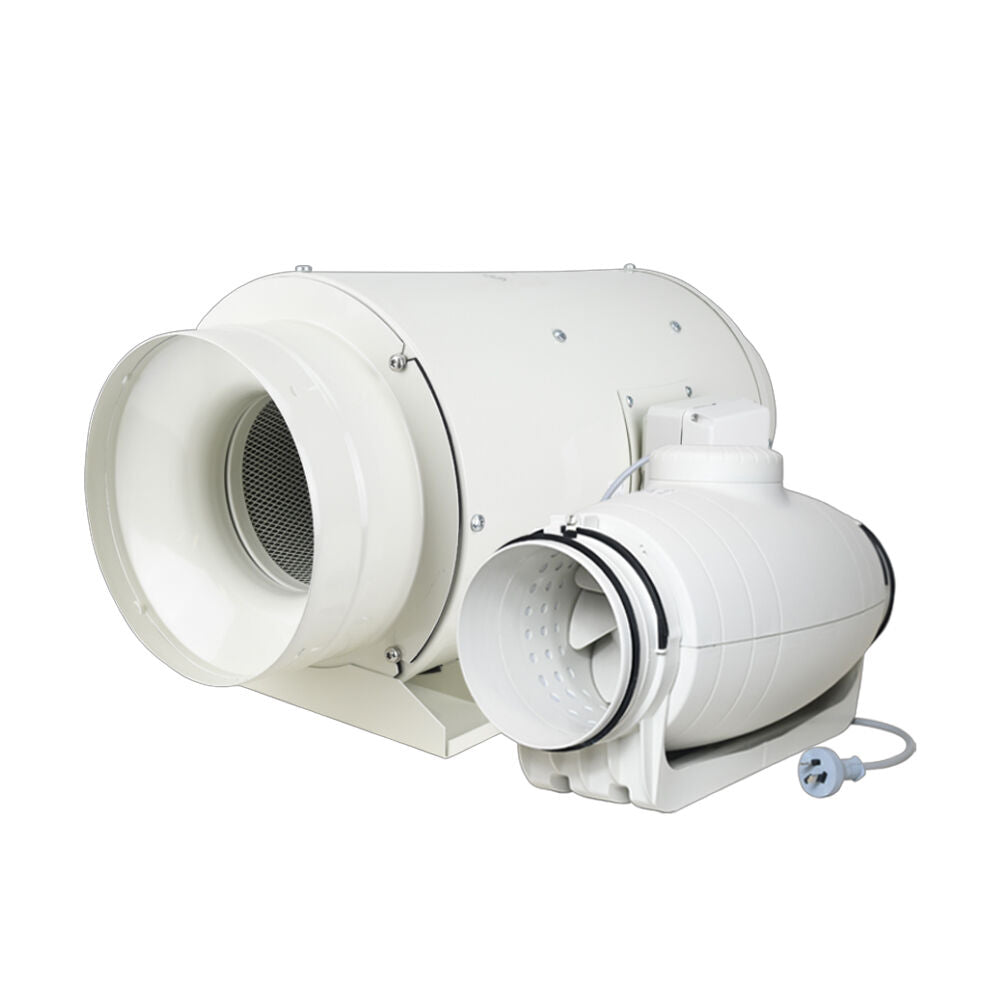

Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 200MM (8" Inch)

The Fantech TD Silent 200MM In-Line Duct Mounted AC Exhaust Fan combines advanced mixed-flow technology with innovative noise-reduction design, making it one of the quietest high-performance duct fans on the market. Perfect for apartments, hotels, offices, and noise-sensitive areas, it provides strong and efficient air extraction while keeping operation levels discreet.

With vibration-absorbing elements, rubber gaskets to reduce leakage, and a precision-engineered body, this fan delivers exceptional airflow with minimal noise. It features a convenient 2-speed motor (factory set to high), plug and lead for easy installation, and a 3600 rotating junction box for flexible wiring access. The integral mounting foot simplifies installation, while the fan body can be removed without disturbing ductwork for easy servicing.

Designed for domestic and light commercial applications across Australia, this fan provides a balance of quiet operation, energy efficiency, and durability, making it a trusted solution for fresh indoor air.

• High Performance Mixed-Flow Impeller: Ensures efficient airflow with quiet operation.
• Low Noise Design: Vibration absorbing elements reduce sound transfer.

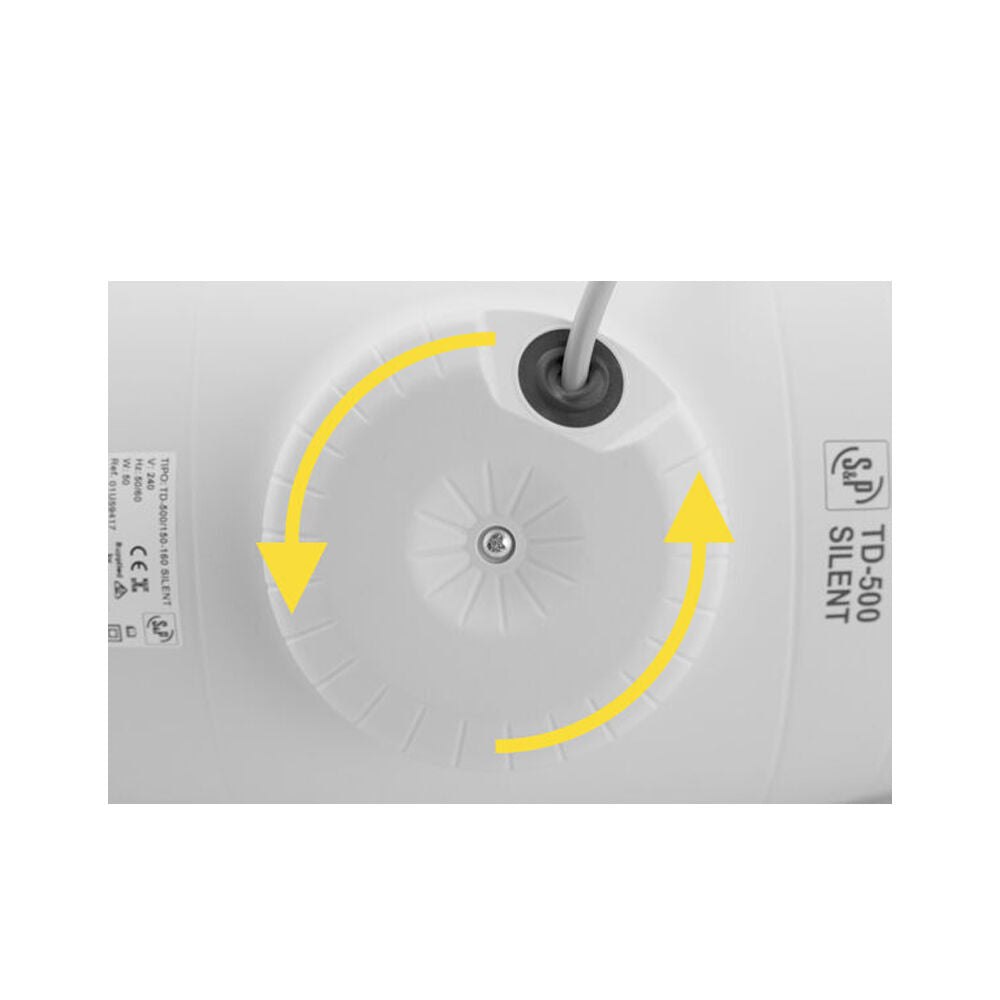

• 360° Rotating Junction Box: Simplifies electrical connection (100–200mm models only).
• Integral Mounting Foot: Makes installation stable and quick.
• Plug and Lead Included: Easy plug-and-play installation.
• 2-Speed Motor: Factory set to high speed for maximum performance.
• Service-Friendly Design: Fan body can be removed without disturbing connected ductwork.

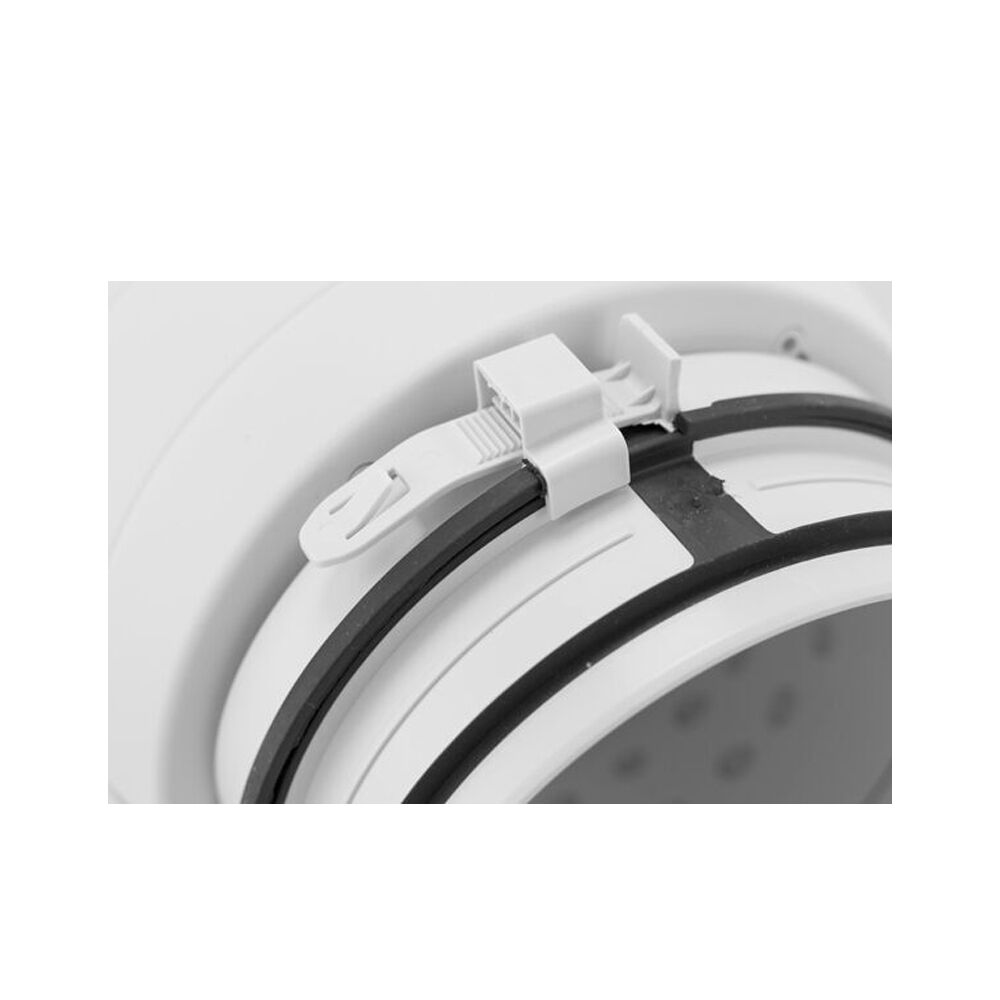

• Durable Rubber Gaskets: Reduce vibration and minimise air leakage.

• Model Number: TD-EVO-200VAR
• Airflow: 900 m³/h (249 L/s)
• Fan Speed: 2780 RPM
• Average Noise @ 3m: 42 dB(A)
• Power: 95 W
• Max Ambient Temp: 60 °C
• Voltage: 220 - 240 V

• [1] x Fantech TD Silent In-Line Duct Mounted AC Exhaust Fan - 200MM (8" Inch)

• Specification Sheet - Click Here
