Fantech | SKU:
VEFANS81901
Fantech Trade Ezifit in-Wall External Wall Mounted Fan - 3 Speed
Air Flow 558 M3/H | Power Consumption 75W | IP44
$539.95
Unit price
/
Unavailable
Stock Availability (LIVE)
Online:
–
Click & Collect
Lidcombe:
–
Fantech Trade Ezifit in-Wall External Wall Mounted Fan - 3 Speed
$539.95
Unit price
/
Unavailable
Product Overview
| Model Number | EIE150 |
| Airflow (M³/H) | 558 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 75 |
| Noise Level | 49 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | Yes |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 3-Speed |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | Optional |
| Warranty | Fantech - 5 Years Warranty* |
Description
Description

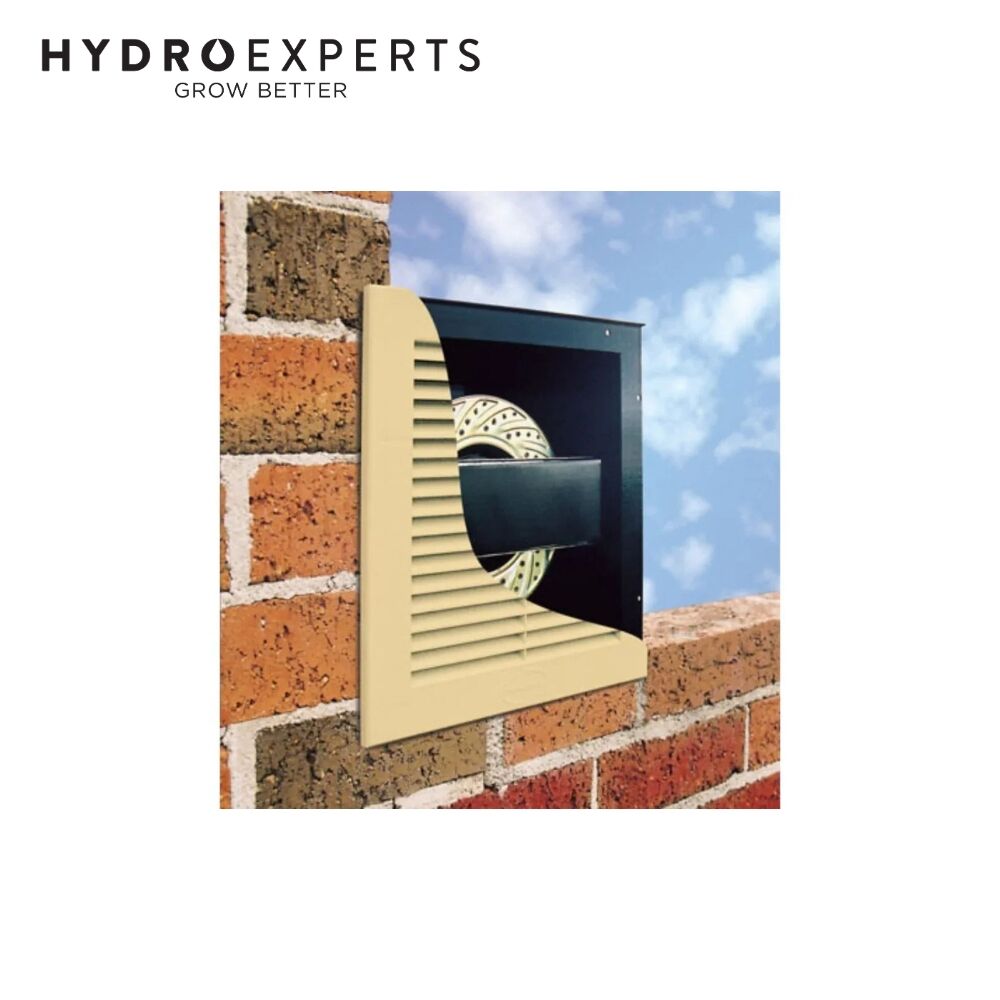

The Fantech Trade Ezifit In-Wall External Wall Mounted Fan (Model EIE150) is a premium ventilation solution designed for Australian homes, particularly effective for exhausting air from downstairs rooms in two-storey residences. Its flush-mounted design ensures a discreet appearance, seamlessly blending with most brick colours, and can be painted to match specific aesthetics.
Features
Features
- High Performance: Offers three selectable speeds—Low (295 m³/h), Medium (425 m³/h), and High (558 m³/h)—to cater to various ventilation needs.
- Energy Efficient: Operates at 50W, 60W, or 75W depending on the selected speed, ensuring optimal energy consumption.
- Quiet Operation: Designed for minimal noise, producing only 31 dB(A) at low speed and 49 dB(A) at high speed, measured at 3 meters.
- Durable Construction: Features an IP44-rated, UV-stabilised plastic grille and housing, suitable for outdoor installations.
- Safety First: Equipped with a “continuous rated” motor fitted with thermal protection to prevent overheating.
- Easy Installation: Comes pre-wired at medium speed for straightforward setup, with the option to adjust to high or low speeds.
- Versatile Application: Ideal for ventilating bathrooms, laundries, kitchens, and powder rooms, especially in two-storey homes where ducting between floors is required.
- Additional Accessories: Compatible with optional accessories like the DSS1-16 3-speed switch for convenient speed control, backdraft dampers for improved efficiency, and ducting kits for extended installations.
Specifications
Specifications
- Model: EIE150
- Airflow Rates:
- Low: 295 m³/h (82 L/sec)
- Medium: 425 m³/h (118 L/sec)
- High: 558 m³/h (155 L/sec)
- Fan Speeds:
- Low: 1273 rpm
- Medium: 1939 rpm
- High: 2418 rpm
- Noise Levels:
- Low: 31 dB(A)
- Medium: 44 dB(A)
- High: 49 dB(A)
- Power Consumption:
- Low: 50W
- Medium: 60W
- High: 75W
- Voltage: 220-240V AC

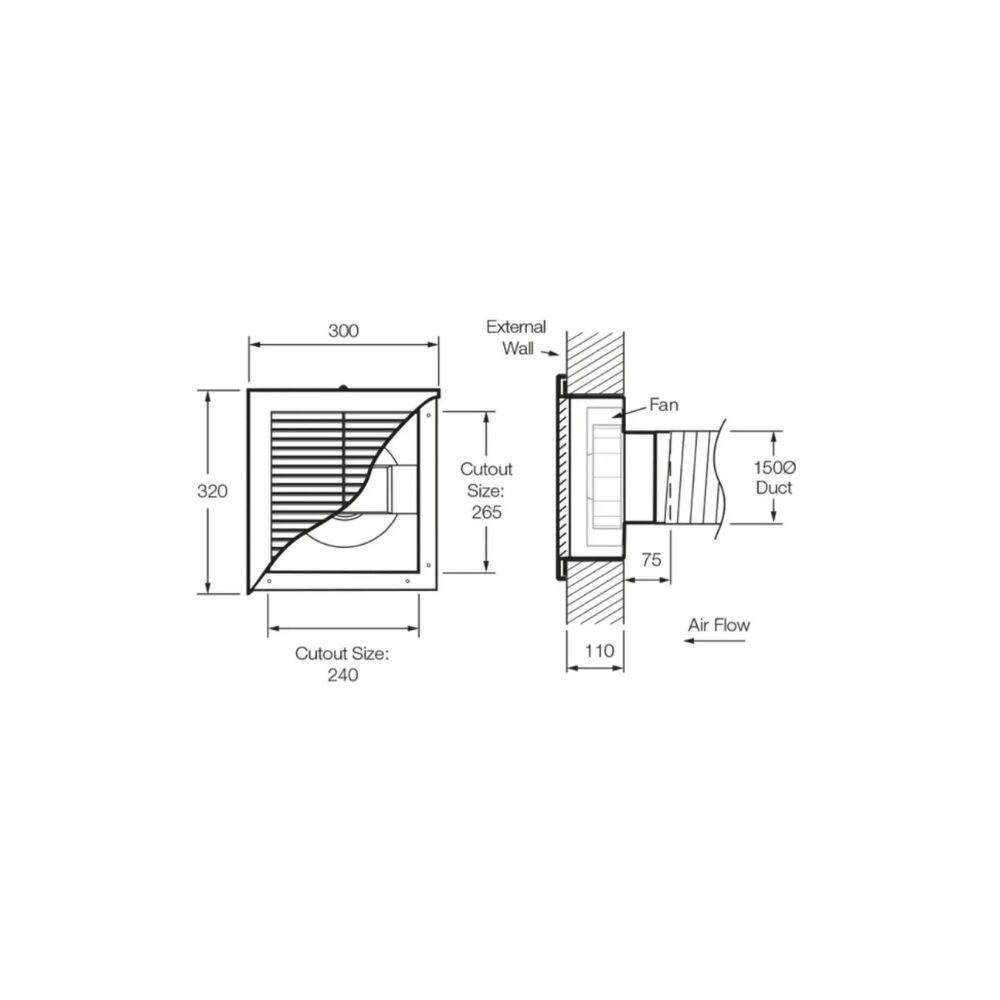

- Dimensions:
- Grille: 300mm x 300mm
- Cutout Size: 240mm x 265mm
- Depth: 110mm
- Weight: Approximately 2.8 kg
- Duct Compatibility: Suitable for 150mm diameter ducts
What's in the box
What's in the box
- [1] x Fantech Trade Ezifit in-Wall External Wall Mounted Fan - 3 Speed
