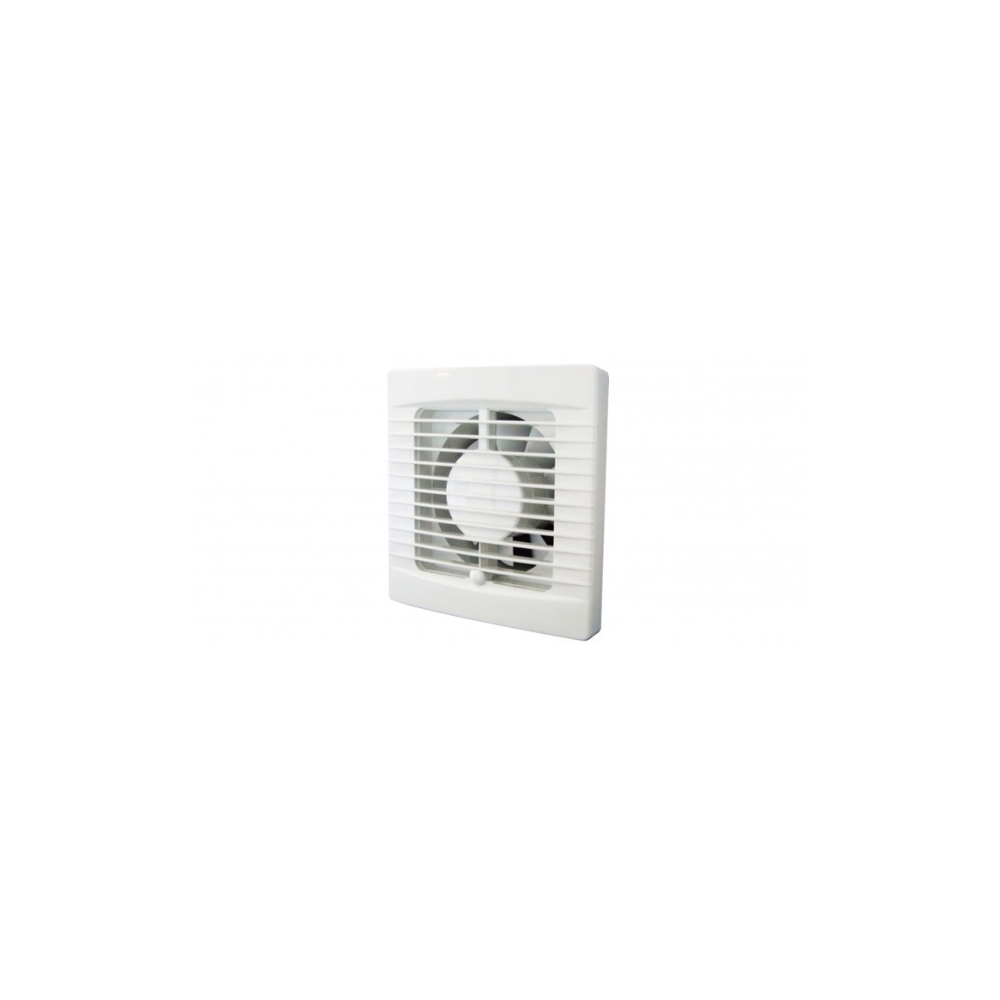

Manrose Low Voltage (SELV) Wall / Ceiling Mounted Fan - 125MM | 125MM (5" Inch) | w/ 12VAC Transformer
Air Flow 130 M³/H | Power Consumption 20W | IPX4
Product Overview
| Model Number | FAN5890 |
| Airflow (M³/H) | 130 |
| Duct Flange Size | 125MM (5" Inch) |
| Hole Size | 135MM Diameter |
| Motor Type | 12V AC |
| Exhaust Fan Power (W) | 20 |
| Noise Level | 41 dBA |
| IP Rating | IPX4 |
| Power Cord | Yes |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | No |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vent Air - 5 Years Warranty |
Description
Description
The Manrose Low Voltage SELV Exhaust Fan 125MM is a reliable and safe ventilation solution designed for bathrooms, laundries, ensuites, and other damp environments. Featuring Safety Extra Low Voltage (SELV) operation, this exhaust fan is engineered to provide enhanced electrical safety while delivering efficient airflow performance.
Suitable for both wall and ceiling mounting, the unit offers flexible installation options for residential and light commercial applications. The included 12VAC transformer allows safe operation in moisture-prone areas while maintaining dependable ventilation performance.
Powered by a durable ball bearing axial motor, this low voltage exhaust fan is built for long-term reliability and quiet operation. Delivering airflow up to 130m3/h, it efficiently removes excess humidity, stale air, and condensation to help reduce mould and moisture build-up.
With an IPX4 moisture protection rating, compact fascia design, and easy installation setup, the Manrose Low Voltage SELV Exhaust Fan 125MM is an ideal choice for Australian homes requiring safe and effective low voltage ventilation in bathrooms and wet areas.
Features
Features
- Safety Extra Low Voltage Operation - Enhanced electrical safety for damp and wet area installations.
- Wall Or Ceiling Mounting - Flexible installation options for various room layouts.
- 12VAC Transformer Included - Ready for safe low voltage operation in humid environments.
- Efficient Axial Airflow - Delivers reliable extraction performance for moisture control.
- Ball Bearing Motor - Provides long-lasting durability and extended motor lifespan.
- Ideal For Damp Areas - Suitable for bathrooms, laundries, ensuites, and wet zones.
- IPX4 Rated Protection - Designed for safe operation in moisture-prone conditions.
- Compact Fascia Design - Clean and modern appearance for residential interiors.
- 125MM Duct Compatibility - Fits standard 125mm ventilation duct systems.
- Quiet Ventilation Performance - Helps maintain comfortable indoor air quality.
Specifications
Specifications
- Model Number - FAN5890
- Fan Type - Safety Extra Low Voltage Exhaust Fan
- Colour - White
- Exhaust Motor Power - 20W
- Air Delivery - 130m³/h (36L/sec)
- Noise Level - 41dB(A)
- Cut Out Size - Ø135mm
- Fascia Size - 168mm x 168mm
- Duct Outlet Size - Ø125mm
- IP Rating - IPX4
- Installation - Qualified Electrician Required
- Power Input - 12V AC~ 50Hz
- Warranty - 5 Years
What's in the box
What's in the box
- [1] x Manrose Low Voltage (SELV) Wall / Ceiling Mounted Fan - 125MM | 125MM (5" Inch) | w/ 12VAC Transformer
