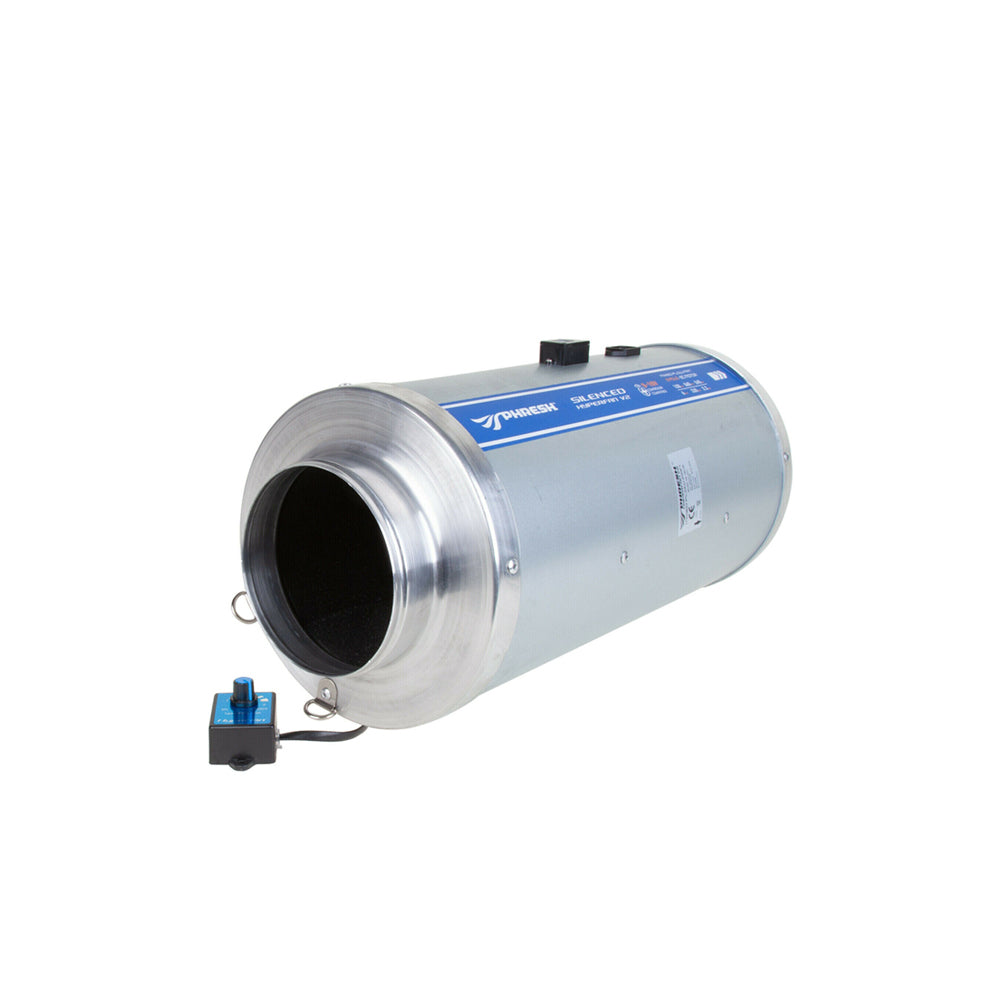

Phresh Silenced EC Hyperfan v2 w/ Controller - 125MM (5" Inch)

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade. Silenced Hyperfans have a reduced dB of up to 70% over standard Hyperfans. Our unique spring-mounted housing further reduce vibration and help deliver some of the quietest fans in the industry (m3/h per Watt).

Features

• New 9 pole digital EC "Brush-Less" motors
• High fan efficiency @7.85CFM per watt
• Higher linear airflow output than other fans
• Higher static pressure output than outer fans
• Detachable, fully variable speed controller included
• Sturdy, steel housing and Abec 7 ball bearings
• 0-10V controller compatible via RJ9 or RJ11 cable

The importance of pressure (pa):

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

Size: 125MM (5" Inch)

• Max Air Flow: 206 cfm – 350 m3/h – 97 Lps
• RPM: 5700
• Watts: 27W
• Noise: 51 dB A
• Amps: 0.25
• Weight: 0.25
• Fan Pressure: 475 Pa / iwg 1.92"
• Diameter: Ø 5" / 125 mm
• Width: 8.39" / 213 mm (including mounting bracket)
• Length: 19" / 480 mm
• Housing: Available in stainless or powder coated steel
• Blade Design: Mixed flow - laminar blade
• Climate Rating: T
• IPX Rating: IPX2

[1] x Phresh Silenced EC Hyperfan v2 w/ Controller - 125MM (5" Inch)
