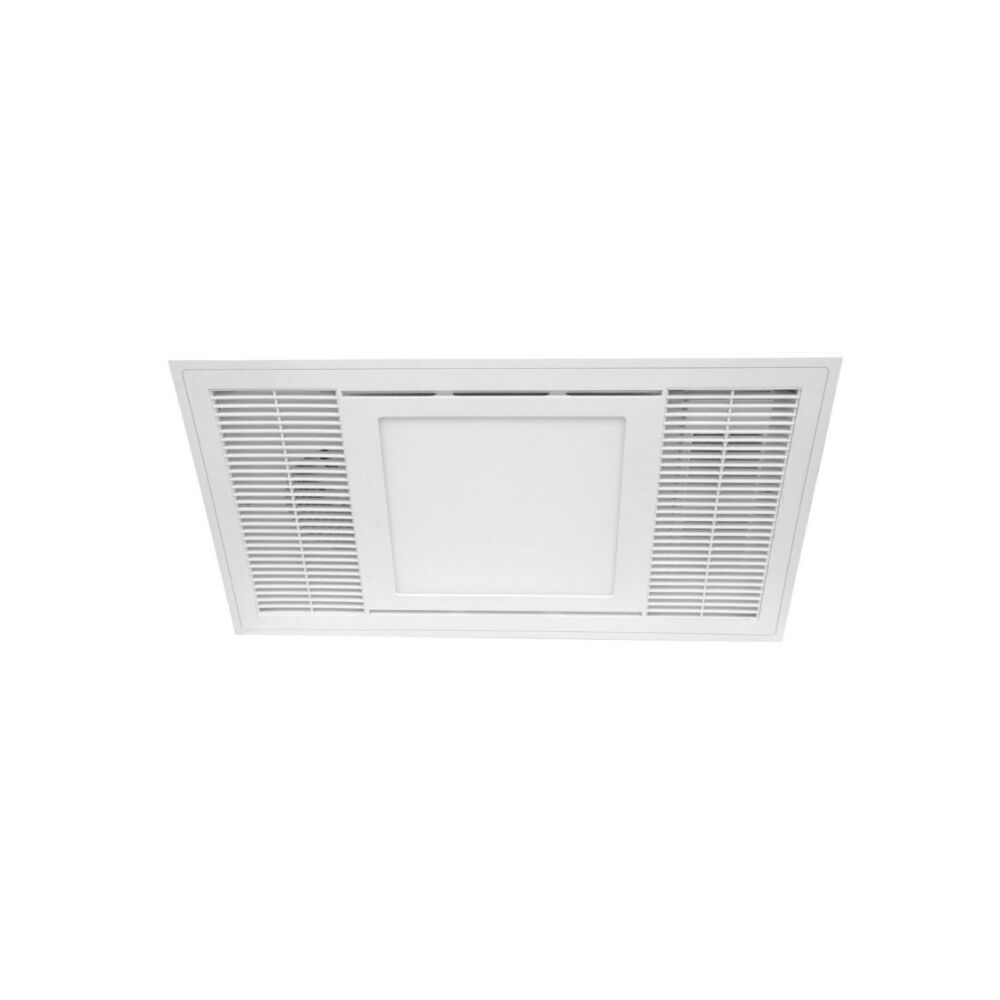

Ventair Madrid 3-in-1 - White | Bathroom Heater | Exhaust Fan | LED Light

Upgrade your bathroom with the Ventair Madrid 3-in-1, a high-performance, energy-efficient unit that combines a powerful exhaust fan, fast-acting fan heater, and bright LED light into one sleek, modern fixture. Designed to meet the needs of Australian homes, this integrated solution ensures a more comfortable and moisture-free bathroom environment all year round.

Featuring a stylish ultra-slim profile, the Madrid 3-in-1 is equipped with a dedicated high-performance exhaust fan capable of moving up to 330 m3/h, efficiently removing steam and odours. The two-level self-regulating fan heater delivers rapid warmth at either 1400W or 2000W, ideal for cooler mornings. Meanwhile, the 20W natural white LED panel emits a high 1900 lumens outputperfect for consistent, shadow-free lighting.

Installation is straightforward for licensed electricians, with a compact design that fits ceiling cut-outs of 590 x 320mm. Engineered for reliability and long-term performance, the Madrid comes backed by a 5-year warranty (conditions apply), making it a durable choice for both residential and commercial applications.

Features:

• Ultra-slim modern design suitable for all bathroom styles
• Two heat settings (1400W/2000W) via self-regulating fan heater
• High airflow exhaust fan (330 m3/h) for effective moisture control
• Bright 20W LED panel with 1900 lumens at 4000K (natural white)
• Quiet operation with ball bearing motor and 49.5 dB(A) noise level
• IPX2 rated for bathroom safety and moisture protection
• Easy ceiling installation with side outlet duct (O125mm)

Model Number	MAD31FHLX
Airflow	330 m³/h (92 L/sec)
Heat Wattage	1400W / 2000W
Light	20W LED, 4000K, 1900Lm
Exhaust Fan Power	50W
Noise Level	49.5 dB(A)

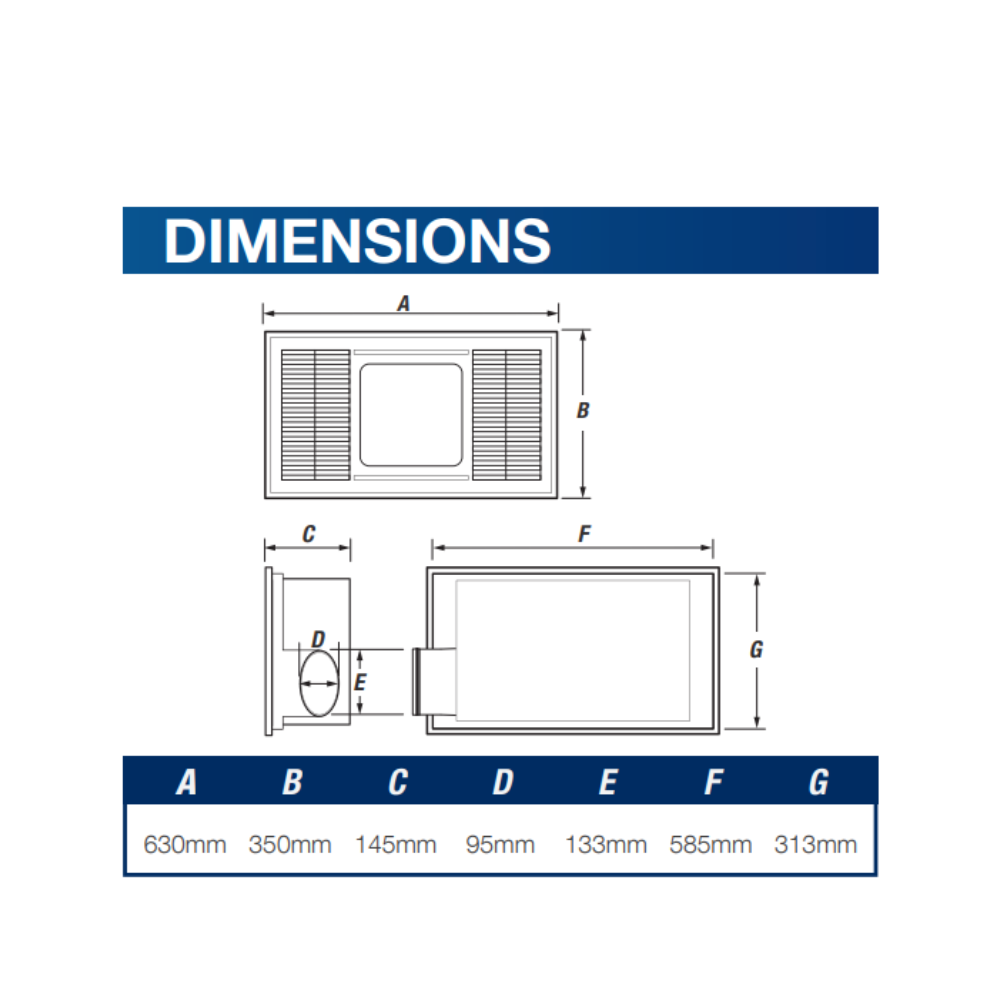

Cut-out Size	590 x 320 mm
Min. Install Depth	200 mm
IP Rating	IPX2
Warranty	5 years (limited)

[1] x Ventair Madrid 3-in-1 – White | Bathroom Heater | Exhaust Fan | LED Light

Specification Sheet - Click Here

Product Manual - Click Here
