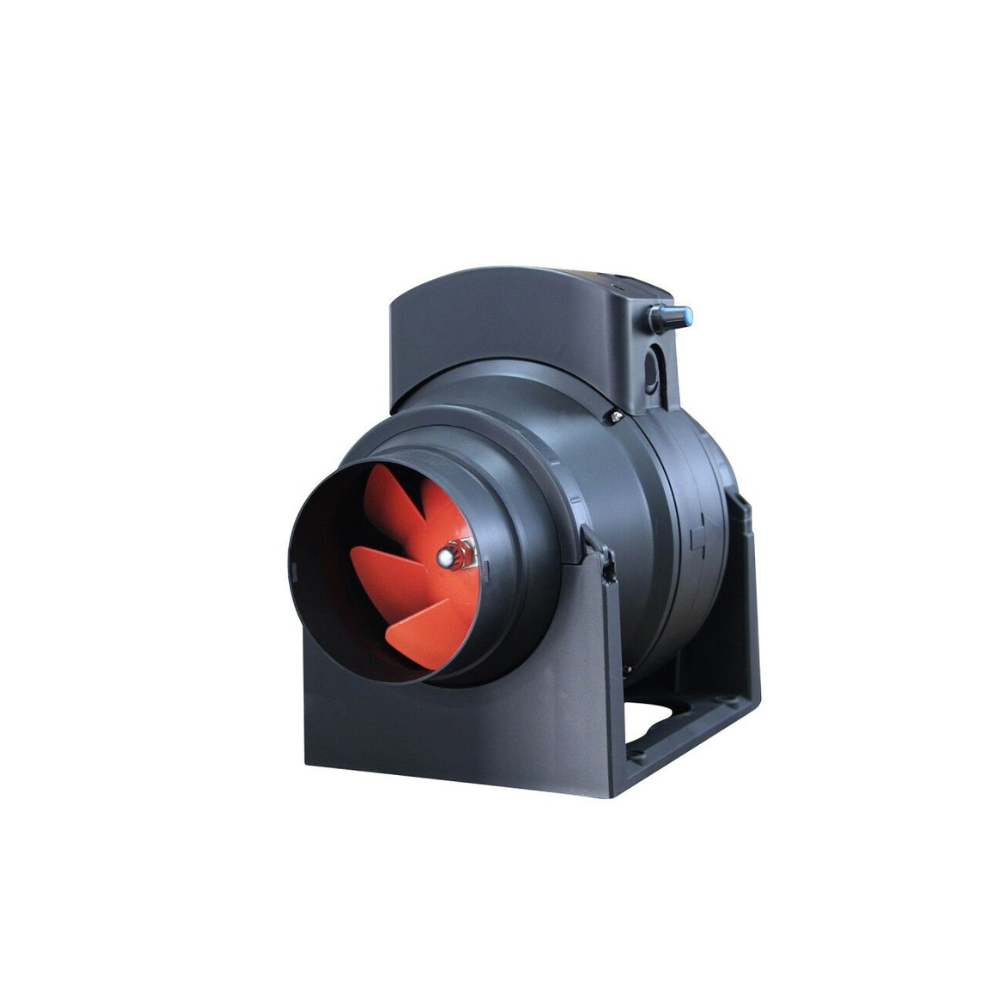

Ventair Torpedo DC Mixed Flow Inline Exhaust Fan - Inline 100 | w/ Speed Control | w/ 10 Minute Run-On Timer
Air Flow 240 M³/H | Power Consumption 28W | IPX4
Product Overview
| Model Number | TORPDC100 |
| Airflow (M³/H) | 240 |
| Duct Flange Size | 100MM (4" Inch) |
| Motor Type | DC |
| Exhaust Fan Power (W) | 28 |
| Noise Level | 37 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | Yes |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Yes |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | Yes |
| Warranty | Vent Air - 3 Years Warranty |
Description
Description
The Torpedo DC 100 Mixflow Inline Exhaust Fan is a premium high-performance ventilation solution designed for larger rooms and extended duct installations. Built with advanced mixflow fan technology and an energy-efficient DC motor, this inline exhaust fan delivers strong extraction airflow while maintaining quiet and efficient operation.
Perfect for bathrooms, laundries, tiled ensuites, and moisture-prone environments, the Torpedo DC 100 effectively helps reduce condensation, excess humidity, and mould build-up. Its integrated variable speed control dial allows airflow adjustment directly on the unit, giving users complete control over ventilation performance based on room size and humidity levels.
Designed to perform where standard exhaust fans struggle, the Torpedo DC 100 maintains reliable airflow through longer duct runs and larger spaces. The inline motor placement significantly reduces in-room noise, creating a quieter and more comfortable indoor environment without sacrificing extraction power.
With airflow performance reaching up to 240m3/h, durable ball bearing motor construction, and low energy consumption, this premium inline fan is an excellent choice for Australian homes requiring dependable and efficient ventilation in high-condensation areas.
Features
Features
- Premium Mixflow Technology - Delivers strong airflow performance for extended duct systems.
- High Capacity DC Motor - Provides energy-efficient operation with powerful extraction airflow.
- Variable Speed Dial - Easily adjust airflow levels directly on the unit.
- Designed For Larger Rooms - Ideal for bathrooms, laundries, ensuites, and humid areas.
- Long Duct Performance - Maintains effective airflow through longer ventilation duct runs.
- Quiet Inline Design - Inline motor placement reduces noise transfer into living spaces.
- Ball Bearing Motor - Ensures long-lasting durability and reliable operation.
- Moisture And Mould Reduction - Helps control humidity and improve indoor air quality.
- IPX4 Rated - Suitable for installation in humid and wet environments.
- 100MM Duct Compatibility - Compatible with standard 100mm ducting systems.
Specifications
Specifications
- Model Name - Torpedo DC 100
- Model Number - TORPDC100
- Motor Type - DC Motor
- Ball Bearing Motor - Yes
- Exhaust Motor Power - 24/7 Mode: 10W - Standard Mode: 10W-28W
- Air Delivery - 24/7 Mode: 68m³/h - Standard Mode: 68-240m³/h
- Noise Level - 24/7 Mode: 29dB(A) - Standard Mode: 29-37dB(A)
- Duct Outlet Size - 100mm
- IP Rating - IPX4
- Installation - Qualified Electrician Required
- Minimum Install Depth - 238mm
- Input Power - 220-240V~ 50Hz
- Warranty - 3 Years
What's in the box
What's in the box
- [1] x Ventair Torpedo DC Mixed Flow Inline Exhaust Fan - Inline 100 | w/ Speed Control | w/ 10 Minute Run-On Timer
