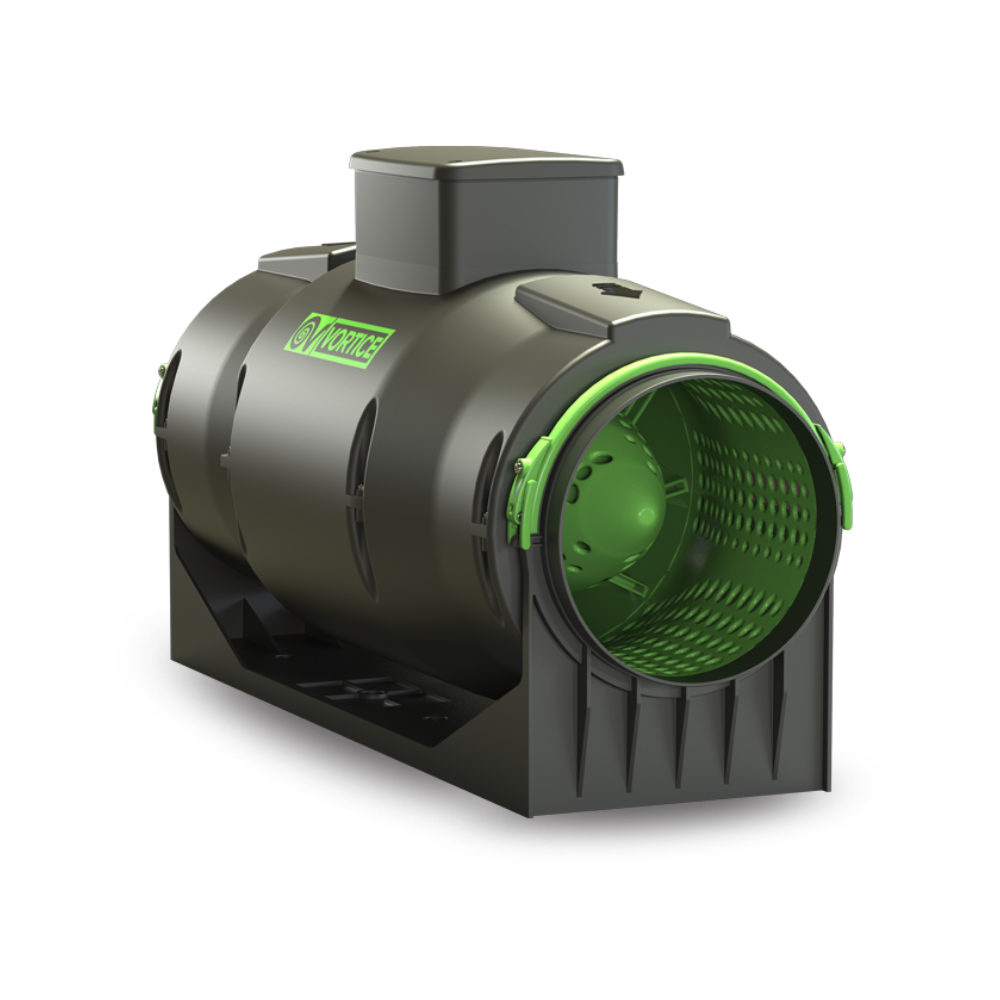

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)
Air Flow 515 M³/H | Power Consumption 31W | IP45
Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150M...
Product Overview
| Model Number | Lineo Quiet ES 150 |
| Airflow (M³/H) | 515 |
| Duct Flange Size | 150MM (6" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 31 |
| Noise Level | 31 dBA at 3M |
| IP Rating | IP45 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 2-Speed & PWM (0-10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vortice - 2 Years replacement warranty* |
Description
Description
The Vortice Lineo Quiet ES 150 is a premium mixed-flow inline EC fan, designed for whisper-quiet air extraction and ideal for high-demand residential and commercial applications in Australia. With advanced acoustic insulation and energy-efficient EC motor technology, this fan delivers up to 515 m3/h of airflow at just 31 watts.
Constructed from fire-resistant E2-class resin and equipped with IP45 ingress protection, this model is perfect for moisture-prone areas like bathrooms, kitchens, and laundry spaces when installed within ductwork. The casing features a sound-absorbing coating to reduce radiated and duct-transmitted noise significantly, while the centrifugal impeller and ball-bearing motor ensure durability and smooth operation.
Designed for intelligent ventilation, the fan supports 0 - 10V variable speed control or 2-speed switch configuration, enabling optimal airflow management across multiple ducted zones or building automation systems.
Applications
- Silent bathroom and toilet exhaust
- Laundry room moisture extraction
- Kitchen rangehood exhaust (ducted)
- Apartment/office inline ducting
- Air handling systems in ceiling voids
Features
Features
- High Airflow Capacity: Up to 515 m³/h for powerful extraction
- Low Power Consumption: Only 31W at maximum speed
- Quiet Operation: Integrated sound insulation, only 31 dB(A) at 3m
- Advanced EC Motor: Thermally protected, ball-bearing supported
- Flexible Speed Control: 0 -10V potentiometer or 2-speed switch
- IP45 Protection: Water-resistant when installed in-duct
- Fire-Resistant Housing: Made to ISO EN 11925-2:2010 standards
- Compact 150MM Duct Compatibility: Ideal for space-constrained installs
- Certified Safe: CE, UKCA, and CB certifications
Specifications
Specifications
- Air Flow Rate - Max 515 m³/h
- Power Consumption - Max 31W
- Voltage - 220 - 240V
- Frequency - 50 - 60Hz
- Motor Type - Brushless EC Motor (Thermally Protected)
- IP Rating - IPX5 (if installed in-duct)
- Nominal Diameter - 150MM (6" Inch)
- Weight - 5.4 kg
- Noise Level @ 3m - 31 dB(A) at full speed
- Max Pressure - 237.3 Pa
- Max Temp - 60°C (Continuous)
- Control Options - 0 - 10V Potentiometer or 2-Speed Switch
What's in the box
What's in the box
- [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)
