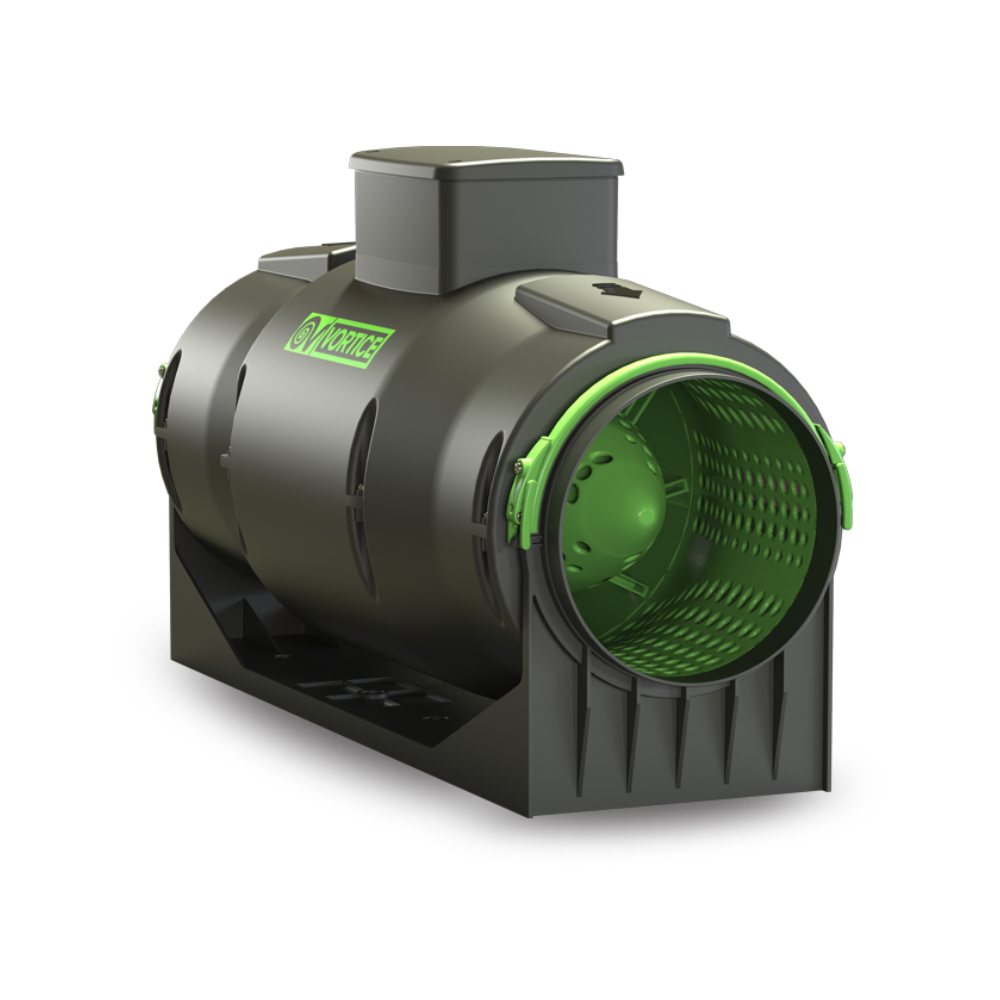

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)
Air Flow 1145 M³/H | Power Consumption 88W | IPX5
Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200M...
Product Overview
| Model Number | Lineo Quiet ES 200 |
| Airflow (M³/H) | 1145 |
| Duct Flange Size | 200MM (8" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 88 |
| Noise Level | 35.8 dBA at 3M |
| IP Rating | IP45 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 2-Speed & PWM (0-10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vortice - 2 Years replacement warranty* |
Description
Description
The Vortice Lineo Quiet ES 200 EC Inline Fan is engineered for high-capacity extraction with silent operation, making it ideal for commercial buildings, large-scale residential applications, and ducted air systems requiring robust airflow and noise control. This premium 200MM mixed-flow fan features an EC (electronically commutated) motor paired with a centrifugal impeller and ball bearing support for enhanced reliability and long-term performance.
Delivering up to 1145 m3/h airflow at just 88W, the Lineo Quiet ES 200 is encased in fire-resistant E2-class resin and internally coated with acoustic insulation to suppress airborne and duct-transmitted sound.
Designed to meet IP45 water resistance standards (when duct-installed), it provides safe, adaptable operation via 010V potentiometer control or a two-speed switch, making it a great fit for automation systems or variable air volume environments.
Features
- Ventilation for large residential and commercial ducted systems
- Silent operation in theatres, restaurants, server rooms
- High airflow zones requiring minimal noise transfer
- Ceiling, roof space, or utility room installs
Features
Features
- High Airflow Delivery: Up to 1145 m³/h – perfect for demanding ducted applications
- Efficient EC Motor: Quiet, thermally protected, brushless operation
- IP45 Rated: High water resistance when installed in duct
- Advanced Soundproof Housing: Minimises breakout and duct noise
- Fire-Resistant Casing: Certified E2 plastic resin (ISO EN 11925-2:2010)
- Speed Adjustment: Via 0–10V potentiometer or two-speed switch
- High Static Pressure: Max pressure up to 329.5 Pa for long duct runs
- CE, UKCA & CB Certified for safety and compliance
- Ideal for Australian commercial and industrial ventilation systems
Specifications
Specifications
- Air Flow Rate - Max 1145 m³/h (318.1 L/s)
- Power Consumption - Max 88W
- Voltage - 220-240V
- Frequency - 50-60Hz
- Motor Type - EC Brushless Motor (Thermally Protected)
- IP Rating - IP45 (Duct Installed)
- Nominal Diameter - 200MM (8" Inch)
- Weight - 8.6 kg
- Noise Level @ 3m - 35.8 dB(A)
- Max Static Pressure - 329.5 Pa
- Operating Temperature - Max 50°C
- Speed Control Options - 0-10V Potentiometer or 2-Speed Switch
What's in the box
What's in the box
- [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)
