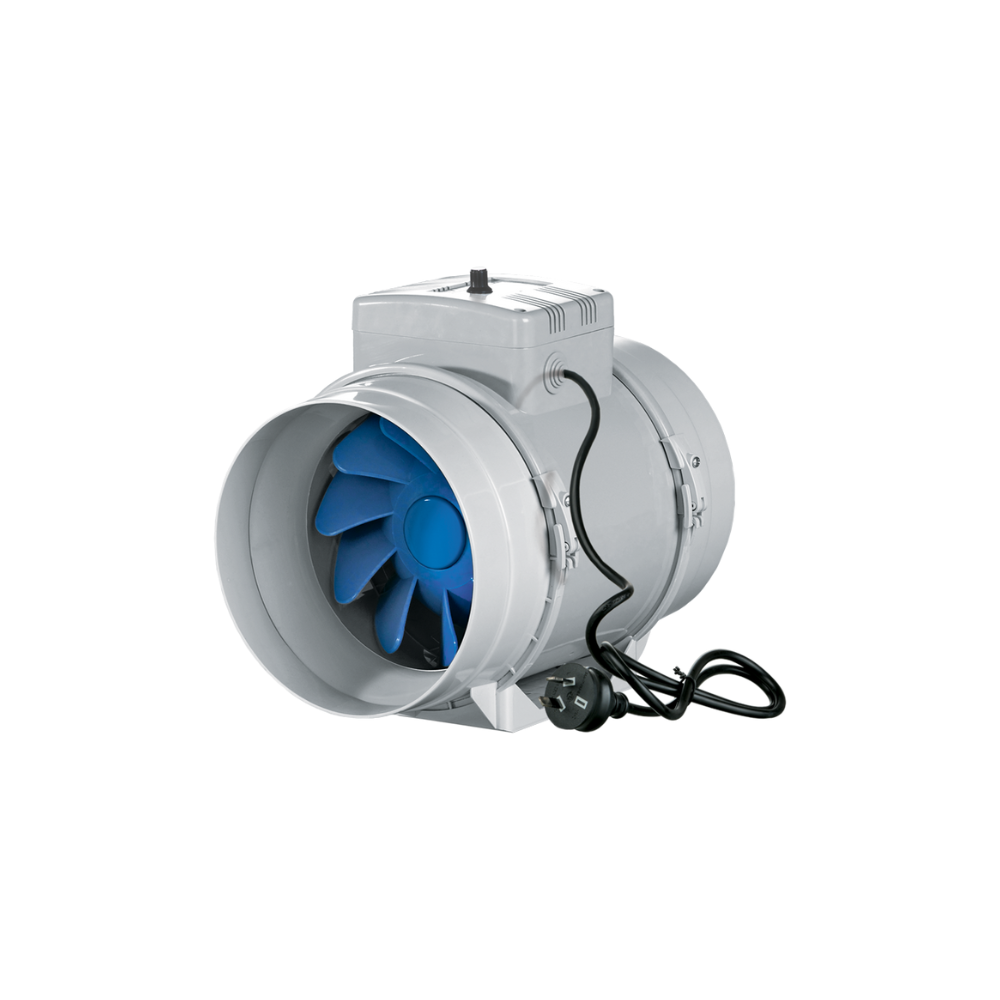

Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug
Air Flow 1970 M³/H | Power Consumption 284W | IPX4
Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed...
Description
Description
The Blauberg Turbo EC 315 is the most powerful model in the Turbo EC range, delivering an impressive 1970 m3/h airflow while maintaining quiet operation and high energy efficiency. Designed for large-scale commercial, industrial, and hydroponic environments, it uses an electronically commutated (EC) motor that offers precise speed control and significant power savings.
With its hybrid mixed-flow impeller, the Turbo EC 315 ensures high static pressure and smooth airflowideal for long duct runs or resistance-heavy setups. It supports 010V speed control for integration with environmental sensors and building management systems (BMS). The fans smart modular design includes a removable motor core and mounting plate for quick servicing and flexible installation at any angle.
Specifications
Specifications
| Parameter | Value | Unit |
|---|---|---|
| Voltage | 230 | V |
| Phase | 1 | ~ |
| Frequency | 50/60 | Hz |
| Current | 1.25 | A |
| Power | 284 | W |
| RPM | 2826 | min⁻¹ |
| Max Air Flow | 1970 | m³/h |
| Max Air Flow | 547 | l/s |
| Sound Pressure (3m) | 55 | dBA |
| Connecting Piece Diameter | 315 | mm |
| Transported Air Temperature | -25 to +55 | °C |
| Ingress Protection Rating | IPX4 | - |
| Motor Type | EC Motor | - |
| Weight | 11.95 | kg |
| Design | Axial / Centrifugal | - |
| SEC Class | B | - |
| Mounting | Inline | - |
| ErP Compliance | 2018 | - |
What's in the box
What's in the box
[1] x Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
