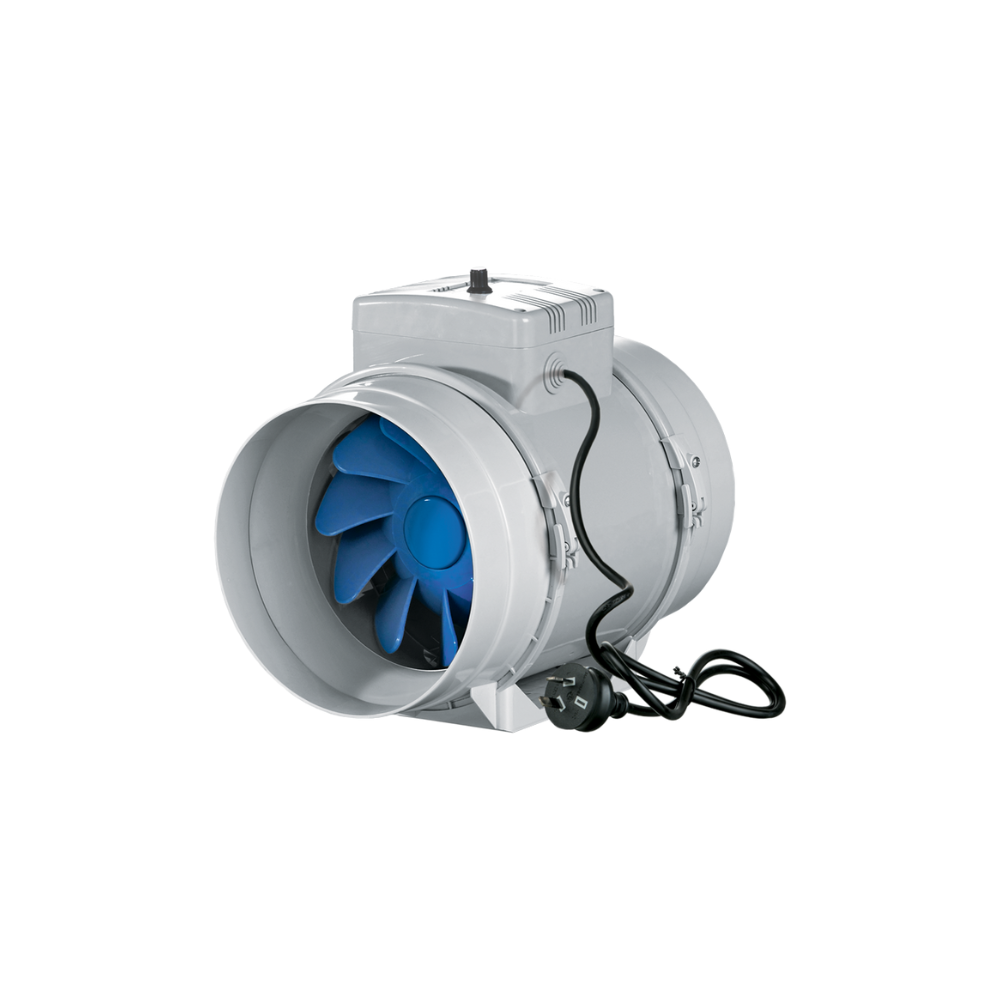

Blauberg Turbo EC Mixed Flow Fan - 315MM (12" Inch) | w/ Speed Controller & Lead and Plug

The Blauberg Turbo EC 315 is the most powerful model in the Turbo EC range, delivering an impressive 1970 m3/h airflow while maintaining quiet operation and high energy efficiency. Designed for large-scale commercial, industrial, and hydroponic environments, it uses an electronically commutated (EC) motor that offers precise speed control and significant power savings.

With its hybrid mixed-flow impeller, the Turbo EC 315 ensures high static pressure and smooth airflow-ideal for long duct runs or resistance-heavy setups. It supports 010V speed control for integration with environmental sensors and building management systems (BMS). The fans smart modular design includes a removable motor core and mounting plate for quick servicing and flexible installation at any angle.

• High Airflow Performance: Moves up to 1970 m³/h to ventilate large or multi-room areas.
• Energy-Saving EC Motor: Up to 35% more efficient than traditional AC motors with full speed range control.
• Smart Control Integration: Accepts 0-10V input for BMS, sensors, or controllers.
• Quiet Mixed-Flow Operation: Balanced axial and centrifugal impeller minimises turbulence and noise.
• Tool-Free Maintenance: Removable motor/impeller cartridge simplifies servicing.
• Wall or Inline Mounting: Secure flat-plate installation at any angle in 315mm ducting.
• Moisture Resistant: Suitable for high-humidity environments with IPX4 rating.
• Fire-Safe Housing: Built from low-combustible polypropylene for safety in industrial settings.

• Voltage: 230 V
• Phase: 1 ~
• Frequency: 50/60 Hz
• Current: 1.38 A
• Power: 169 W
• RPM: 2870 min⁻¹
• Max Air Flow: 1285 m³/h (357 l/s)
• Sound Pressure (3m): 53 dBA
• Connecting Piece Diameter: 250 mm
• Transported Air Temperature: -25 to +55 °C
• Ingress Protection Rating: IPX4
• Motor Type: EC Motor
• Weight: 7.80 kg
• Design: Axial / Centrifugal
• SEC Class: B
• Mounting: Inline
• ErP Compliance: 2018
