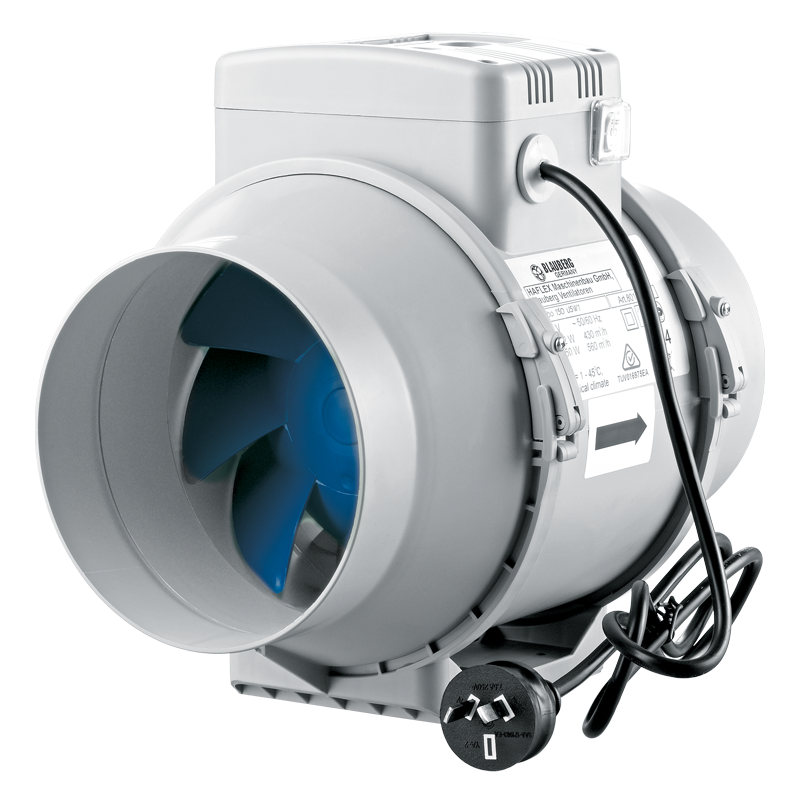

Blauberg Turbo Mixed Flow AC Exhaust Fan - 200MM (8" Inch) | 2 Speed

The Blauberg Turbo 200MM Mixed Flow Exhaust Fan is designed for powerful air extraction in spaces where high airflow, compact size, and quiet operation are essential. With a maximum capacity of 1080 m3/h, this fan is perfect for kitchens, bathrooms, laundries, workshops, and other humid or high-demand environments requiring reliable ventilation.

Built from low-flammable polypropylene, the Turbo fan features a robust AC motor with ball bearings, delivering long service life and quiet operation (as low as 44 dBA). The 2-speed motor provides flexibility for varying airflow demands, and thermal overload protection ensures safe performance under continuous use.

The smart casing design allows the motor and impeller block to be removed without disconnecting ductwork, making maintenance fast and easy. Designed for round ducting from O100mm to O315mm, the Blauberg Turbo fan is a versatile solution for both residential and commercial projects across Australia.

Features

• 2-speed motor for variable airflow control (8051080 m3/h)
• Quiet operation: 4452 dBA noise level
• Durable polypropylene casing low flammability and corrosion-resistant
• Tool-free servicing motor block can be removed without duct disconnection
• Compact design ideal for tight installations
• Ball bearing AC motor with thermal overload protection
• Compatible with 200MM round ducts
• IPX4 rated safe for humid or damp environments

Specification	Low Speed	High Speed
Airflow (m³/h)	805	1080
Power (W)	76	108
RPM	1915	2380
Noise Level (dBA)	44	52
Ingress Protection	–	IPX4

Physical Dimensions (mm):

• Width: 239
• Height: 261
• Depth: 296
• Material: Polypropylene
• Duct Size: 200MM

[1] x Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 200MM (8" Inch) | 2 Speed

Specification Sheet - Click Here

Product Manual - Click Here
