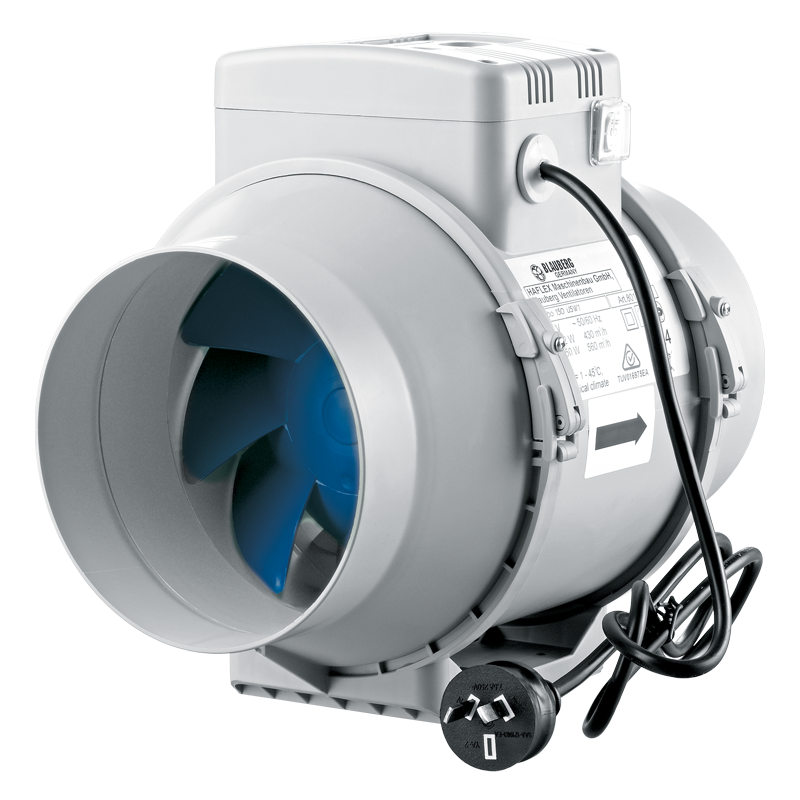

Blauberg Turbo Mixed Flow AC Exhaust Fan - 200MM (8" Inch) | 2 Speed
Air Flow 1035 M³/H | Power Consumption 110W | IPX4
Description
Description
The Blauberg Turbo 200MM Mixed Flow Exhaust Fan is designed for powerful air extraction in spaces where high airflow, compact size, and quiet operation are essential. With a maximum capacity of 1080 m3/h, this fan is perfect for kitchens, bathrooms, laundries, workshops, and other humid or high-demand environments requiring reliable ventilation.
Built from low-flammable polypropylene, the Turbo fan features a robust AC motor with ball bearings, delivering long service life and quiet operation (as low as 44 dBA). The 2-speed motor provides flexibility for varying airflow demands, and thermal overload protection ensures safe performance under continuous use.
The smart casing design allows the motor and impeller block to be removed without disconnecting ductwork, making maintenance fast and easy. Designed for round ducting from O100mm to O315mm, the Blauberg Turbo fan is a versatile solution for both residential and commercial projects across Australia.
Features
- 2-speed motor for variable airflow control (8051080 m3/h)
- Quiet operation: 4452 dBA noise level
- Durable polypropylene casing low flammability and corrosion-resistant
- Tool-free servicing motor block can be removed without duct disconnection
- Compact design ideal for tight installations
- Ball bearing AC motor with thermal overload protection
- Compatible with 200MM round ducts
- IPX4 rated safe for humid or damp environments
Specifications
Specifications
Specification | Low Speed | High Speed |
---|---|---|
Airflow (m³/h) | 805 | 1080 |
Power (W) | 76 | 108 |
RPM | 1915 | 2380 |
Noise Level (dBA) | 44 | 52 |
Ingress Protection | – | IPX4 |
Physical Dimensions (mm):
- Width: 239
- Height: 261
- Depth: 296
- Material: Polypropylene
- Duct Size: 200MM
What's in the box
What's in the box
[1] x Blauberg Turbo Mixed Flow Inline AC Exhaust Fan - 200MM (8" Inch) | 2 Speed
Downloads
Downloads
Specification Sheet - Click Here
Product Manual - Click Here
