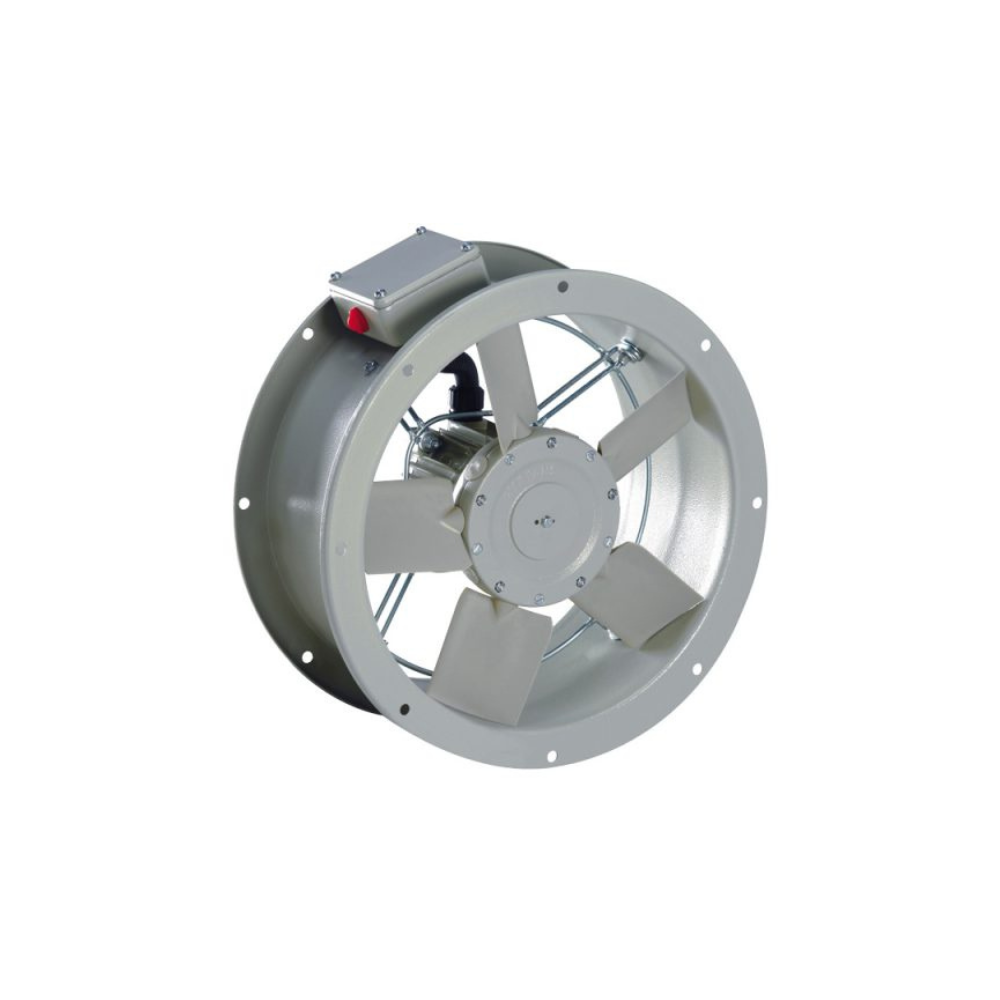

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD254 | 250MM (10" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Axial Fan SCD254 is a high-performance ventilation solution designed for ducted systems in commercial and industrial environments. This 250MM (10" Inch) 4 Pole 3 Phase axial fan delivers an impressive airflow of 983 M3/H while maintaining quiet operation at only 39 dB(A) at 3 metres. Built with a galvanised steel casing and polyester epoxy finish, it ensures long-lasting durability in harsh environments.

The Short Case Axial Series offers a light-weight yet robust design, suitable for ambient temperatures from -200C to +700C. It can be mounted in any position and is equipped with integral thermal protection for safe, continuous operation. The SCD254 also features sealed-for-life ball bearings and is compliant with ISO 5801:2004 airflow testing and BS848 noise standards.

Ideal for applications in factories, workshops, warehouses, and commercial ventilation systems, the Fantech SCD254 is a reliable, compact, and energy-efficient solution for both exhaust and supply air installations.
