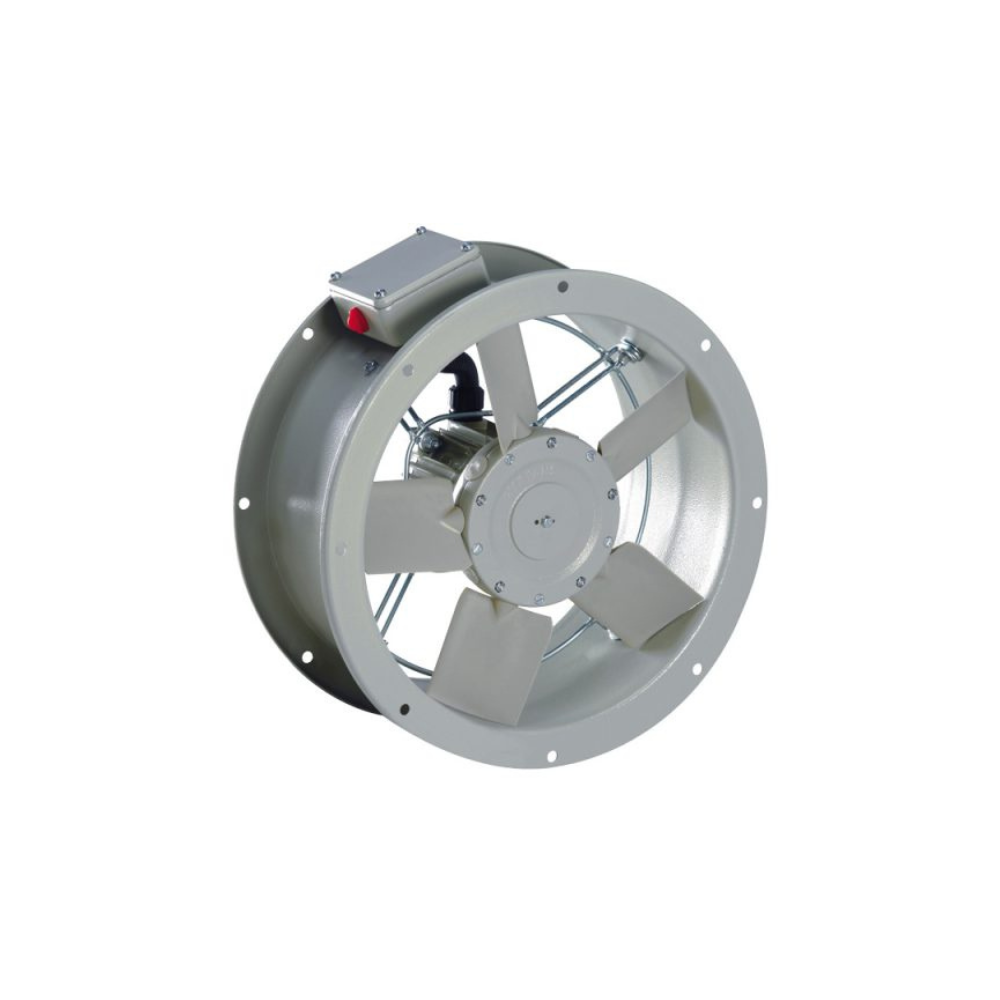

Fantech Short Case In-Line Duct Mounted Axial Fan - SCD254 | 250MM (10" Inch) | 4 Pole | 3 Phase

The Fantech Short Case In-Line Axial Fan SCD254 is a high-performance ventilation solution designed for ducted systems in commercial and industrial environments. This 250MM (10" Inch) 4 Pole 3 Phase axial fan delivers an impressive airflow of 983 M3/H while maintaining quiet operation at only 39 dB(A) at 3 metres. Built with a galvanised steel casing and polyester epoxy finish, it ensures long-lasting durability in harsh environments.

The Short Case Axial Series offers a light-weight yet robust design, suitable for ambient temperatures from -200C to +700C. It can be mounted in any position and is equipped with integral thermal protection for safe, continuous operation. The SCD254 also features sealed-for-life ball bearings and is compliant with ISO 5801:2004 airflow testing and BS848 noise standards.

Ideal for applications in factories, workshops, warehouses, and commercial ventilation systems, the Fantech SCD254 is a reliable, compact, and energy-efficient solution for both exhaust and supply air installations.

• Compact design - Short case design allows easy installation in ducted systems.
• Light-weight but robust construction - Built with galvanised steel casing and GRP impeller blades.
• Wide operating range - Suitable for temperatures between -20°C and +70°C.
• 2-speed star/delta motor - Standard on most 415V 3-phase models.
• IP55 protection - Ensures dust and water resistance for reliable operation.
• Integral thermal protection - Prevents motor overheating and ensures safe use.
• Mountable in any position - Ideal for flexible ducted system installations.
• Noise tested to BS848 standards - Ensures low operational sound levels.

• Model: SCD254
• Air Flow: 983 M³/H
• Power Consumption: 120W
• Motor Type: 3 Phase, 4 Pole
• Sound Level: 39 dB(A) @ 3m
• Operating Temperature: -20°C to +70°C

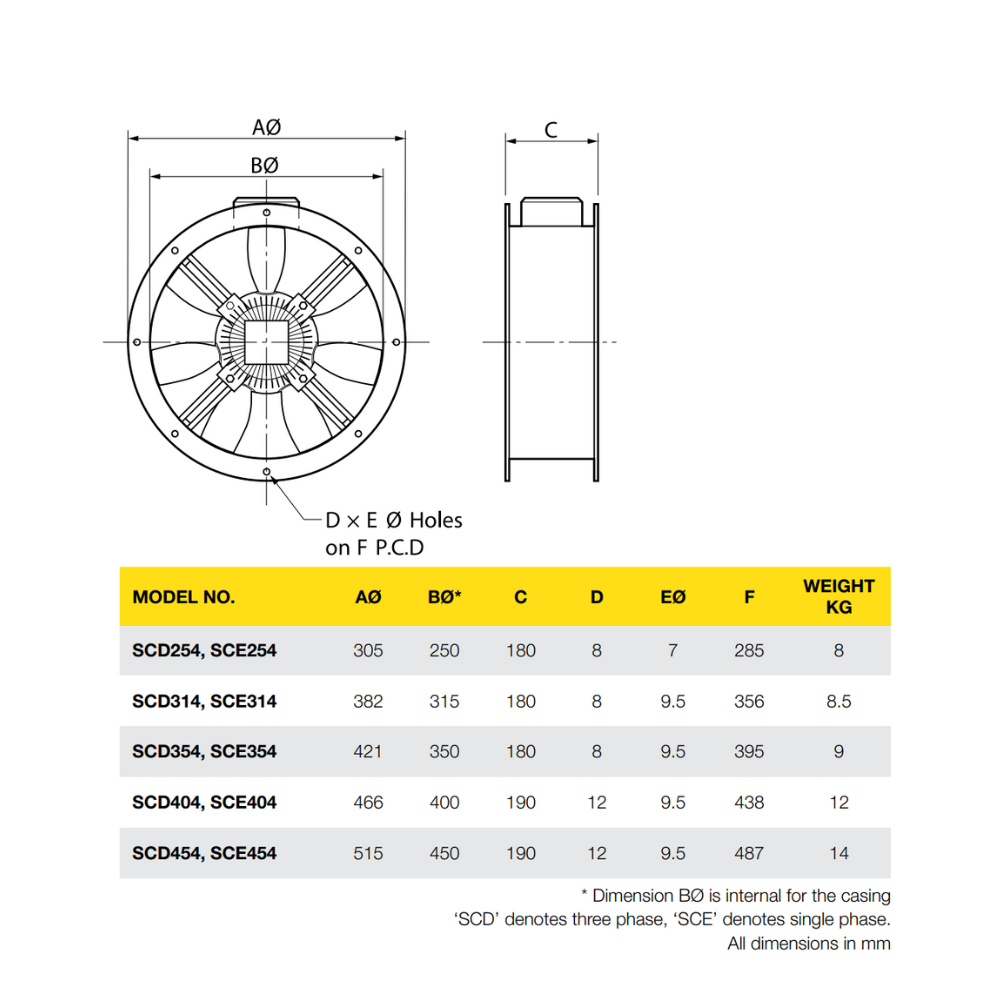

• Flange Size: 250MM (10" Inch)
• Casing Material: Galvanised Steel with Polyester Epoxy Finish
• Impeller: GRP (Glass Reinforced Plastic)
• Weight: 8.0 kg
• IP Rating: IP55
• Standards: ISO 5801:2004, BS848: Part 2, 1985

• [1] x Fantech Short Case In-Line Duct Mounted Axial Fan - SCD254 | 250MM (10" Inch) | 4 Pole | 3 Phase

• Specification Sheet - Click Here
