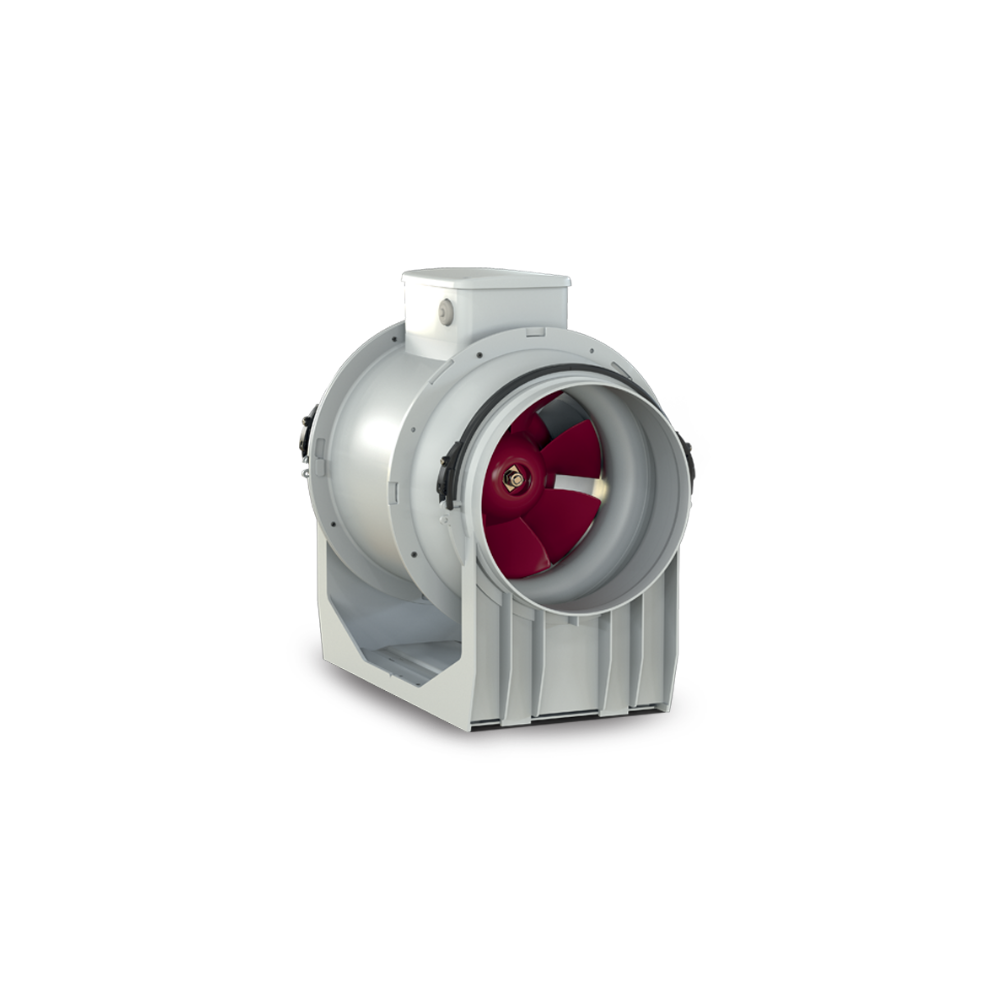

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)
Air Flow 2740 M³/H | Power Consumption 360W | IPX5
Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12"...
Description
Description
The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 is a powerful, industrial-grade ventilation fan engineered for large-scale residential, commercial, and industrial air extraction needs in Australia. Designed with a 315mm nominal diameter and an impressive maximum airflow of 2740 m3/h, this mixed-flow inline fan ensures exceptional performance even in high-demand environments such as warehouses, factories, grow rooms, and commercial kitchens.
Constructed from fire-resistant E2 class plastic resin to ISO EN 11925-2:2010 standards, the housing provides superior durability and safety in areas close to electrical and motor components. The thermally protected induction motor, mounted on ball bearings, offers long-lasting operation with minimal maintenance, while the centrifugal impeller ensures high efficiency and stable airflow.
With a water resistance rating of IPX5 when installed in ducting, the Lineo 315 is ideal for moisture-prone environments. It also supports variable speed control through compatible Vortice speed regulators, enabling tailored airflow and energy savings. This robust inline fan is built for continuous operation, making it a go-to choice for professionals who demand performance, reliability, and ease of installation.
Features
- Exceptional Airflow Capacity Up to 2740 m3/h at maximum speed for high-demand ventilation.
- Durable Fire-Resistant Construction E2 class plastic resin to ISO EN 11925-2:2010 standards.
- 315mm Nominal Diameter Suitable for large ducting systems and heavy-duty applications.
- Industrial-Grade Motor Induction motor with thermal protection and ball bearings for extended lifespan.
- IPX5 Water Resistance Reliable operation in humid or moisture-rich environments when ducted.
- Variable Speed Control Compatible with Vortice speed control devices for customised airflow.
- Optimised Noise Levels 51.6 dB(A) breakout sound at 3m on maximum speed.
- Built for Continuous Use Designed for industrial and commercial long-term operation.
Specifications
Specifications
| Model | Vortice Lineo 315 |
|---|---|
| Nominal Diameter | 315 mm |
| Voltage | 220-240 V |
| Frequency | 50-60 Hz |
| Max Airflow | 2740 m³/h |
| Airflow (Low Speed at 60Hz) | 1635 m³/h |
| Power Consumption (Max) | 360 W |
| Power Consumption (Low) | 250 W |
| Current (Max) | 1.55 A |
| Noise Level @ 3m (Max) | 51.6 dB(A) |
| Max Pressure | 559 Pa |
| Insulation Class | Class II |
| IP Rating | IPX5 |
| Max Operating Temperature | 50°C |
| Weight | 9.5 kg |
What's in the box
What's in the box
[1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)
Downloads
Downloads
Specification Sheet - Click Here
