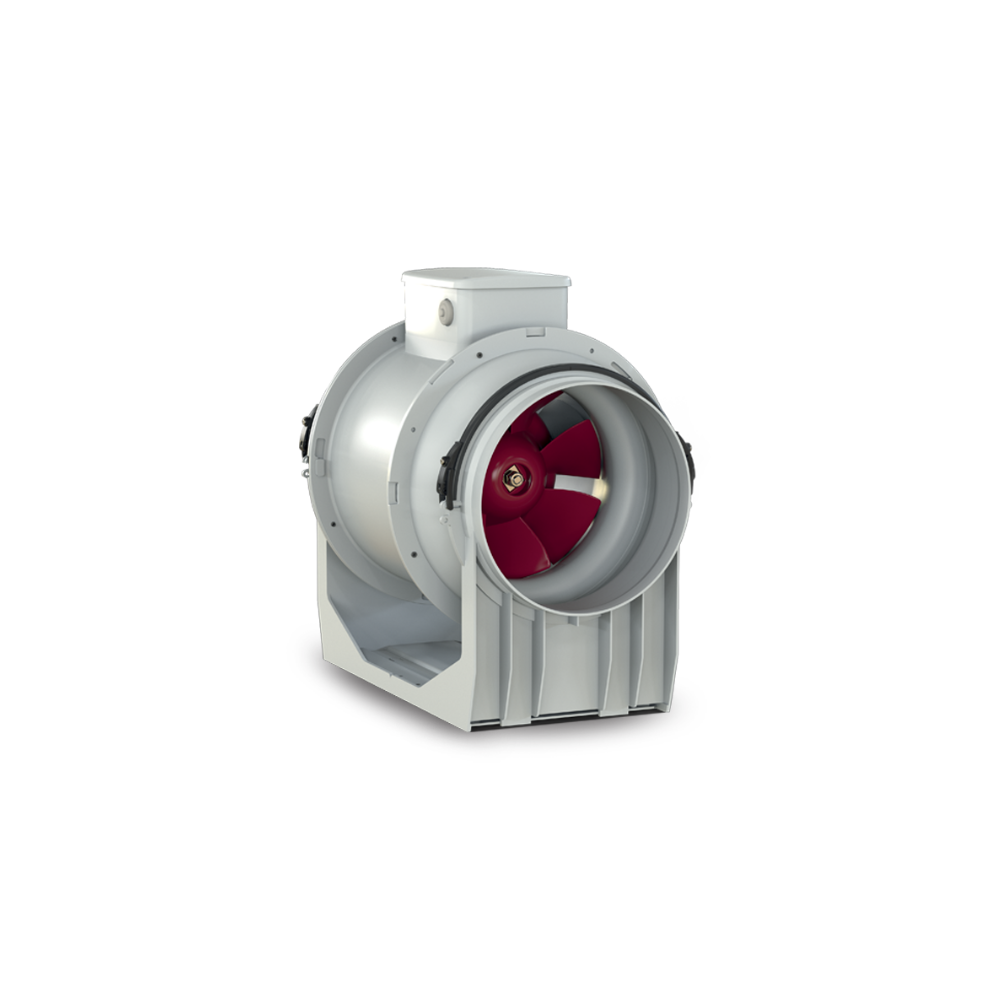

Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)

The Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 is a powerful, industrial-grade ventilation fan engineered for large-scale residential, commercial, and industrial air extraction needs in Australia. Designed with a 315mm nominal diameter and an impressive maximum airflow of 2740 m3/h, this mixed-flow inline fan ensures exceptional performance even in high-demand environments such as warehouses, factories, grow rooms, and commercial kitchens.

Constructed from fire-resistant E2 class plastic resin to ISO EN 11925-2:2010 standards, the housing provides superior durability and safety in areas close to electrical and motor components. The thermally protected induction motor, mounted on ball bearings, offers long-lasting operation with minimal maintenance, while the centrifugal impeller ensures high efficiency and stable airflow.

With a water resistance rating of IPX5 when installed in ducting, the Lineo 315 is ideal for moisture-prone environments. It also supports variable speed control through compatible Vortice speed regulators, enabling tailored airflow and energy savings. This robust inline fan is built for continuous operation, making it a go-to choice for professionals who demand performance, reliability, and ease of installation.

• Exceptional Airflow Capacity - Up to 2740 m³/h at maximum speed for high-demand ventilation.
• Durable Fire-Resistant Construction - E2 class plastic resin to ISO EN 11925-2:2010 standards.
• 315mm Nominal Diameter - Suitable for large ducting systems and heavy-duty applications.
• Industrial-Grade Motor - Induction motor with thermal protection and ball bearings for extended lifespan.
• IPX5 Water Resistance - Reliable operation in humid or moisture-rich environments when ducted.
• Variable Speed Control - Compatible with Vortice speed control devices for customised airflow.
• Optimised Noise Levels - 51.6 dB(A) breakout sound at 3m on maximum speed.
• Built for Continuous Use - Designed for industrial and commercial long-term operation.

• Model - Vortice Lineo 315
• Nominal Diameter - 315 mm
• Voltage - 220-240 V
• Frequency - 50-60 Hz
• Max Airflow - 2740 m³/h
• Airflow (Low Speed at 60Hz) - 1635 m³/h
• Power Consumption (Max) - 360 W
• Power Consumption (Low) - 250 W
• Current (Max) - 1.55 A
• Noise Level @ 3m (Max) - 51.6 dB(A)
• Max Pressure - 559 Pa
• Insulation Class - Class II
• IP Rating - IPX5
• Max Operating Temperature - 50°C
• Weight - 9.5 kg

• [1] x Vortice Lineo Inline Mixed Flow AC Fan - Lineo 315 | 315MM (12" Inch)
