Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)
Air Flow 1475 M³/H | Power Consumption 126W | IP45
Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10&q...
Product Overview
| Airflow (M³/H) | 1475 |
| Power | 126 |
| Motor Type | EC |
| Noise Level | 64.5 dBA at 3M |
| IP Rating | IP45 |
| Run On Timer | No |
Description
Description

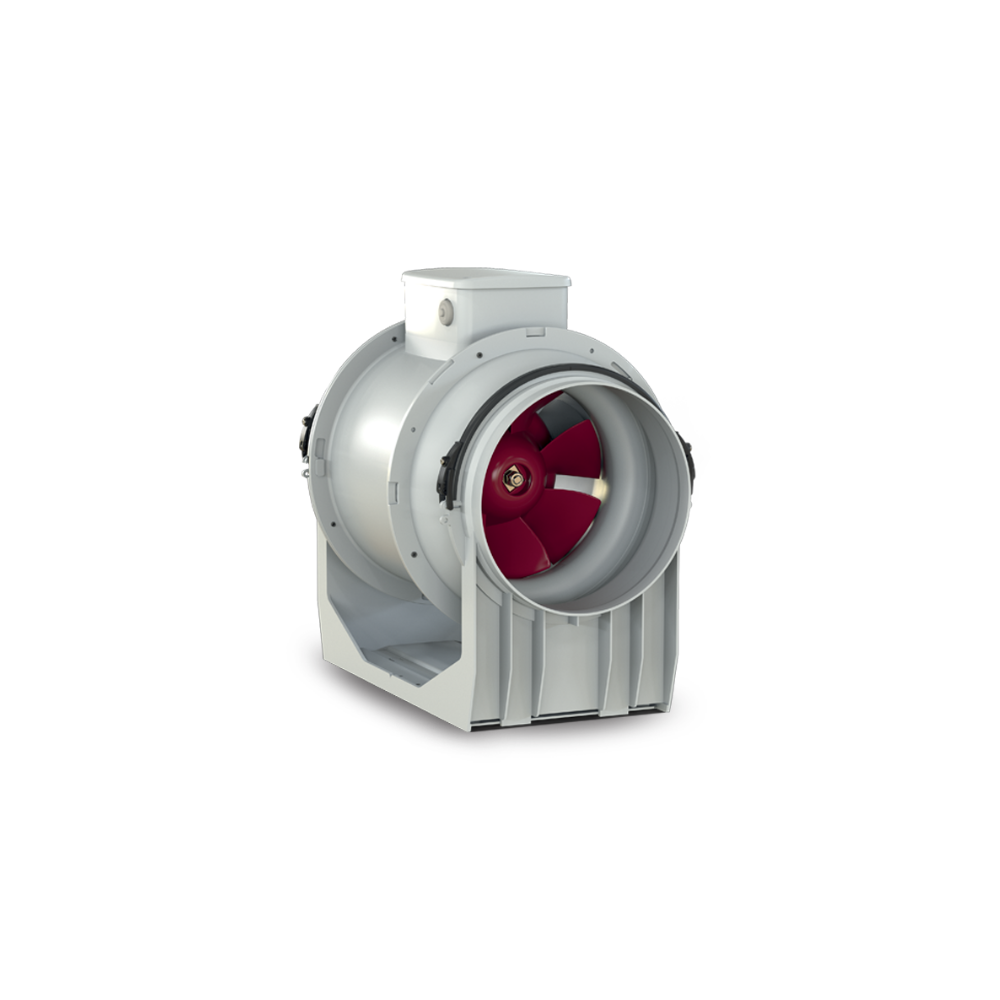

The Vortice Lineo 250 ES Inline Mixed Flow EC Fan is a powerful and energy-efficient inline fan engineered for high-capacity ventilation in commercial, industrial, and large-scale residential systems. Designed with a 250mm nominal diameter and a premium EC (brushless) motor mounted on ball bearings, it achieves a maximum airflow of 1475 m3/h with exceptional efficiency and reliability.
Built for durability and safety, the units fire-resistant E2 class housing complies with ISO EN 11925-2:2010 and offers an IP45 protection rating (IPX5 when installed in ductwork) for dependable performance in demanding environments. Speed can be finely tuned via a potentiometer (0 - 10V) or a preset two-speed switch. Integrated thermal fuse protection safeguards against overheating, making the Vortice Lineo 250 ES an ideal choice for continuous or variable-speed ventilation systems where high airflow and quiet operation are essential.
Features
Features
- High-Capacity EC Motor - Brushless technology ensures energy efficiency, long service life, and thermal protection.
- Large 250mm Diameter - Provides superior airflow for large-scale applications.
- Fire-Resistant Construction - E2 class resin housing meets ISO EN 11925-2:2010 standards.
- Moisture-Resistant Design - IP45 rating (IPX5 in duct) for reliable use in challenging environments.
- Adjustable Speed Control - Potentiometer (0 - 10V) or two-speed switch for precise airflow management.
- Quiet and Efficient - Low noise levels starting from 28.4 dB(A) at 3m on low speed.
- Thermal Fuse Safety - Integrated protection against overheating for continuous safe operation.
Specifications
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | 250mm |
| Max Airflow | 1475 m³/h |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Max Power | 126W |
| Max Current | 1.00A |
| Insulation Class | Class II |
| IP Rating | IP45 (IPX5 in duct) |
| Max Ambient Temperature | 50°C |
| Weight | 5.0 kg |
| RPM | 2690 (max) |
| Noise Level at 3m | 44 dB(A) at max speed |
| Housing Material | Fire-resistant plastic resin (E2 class) |
What's in the box
What's in the box
- [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)
Downloads
Downloads
- Specification Sheet - Click Here
- Product Manual - Click Here
