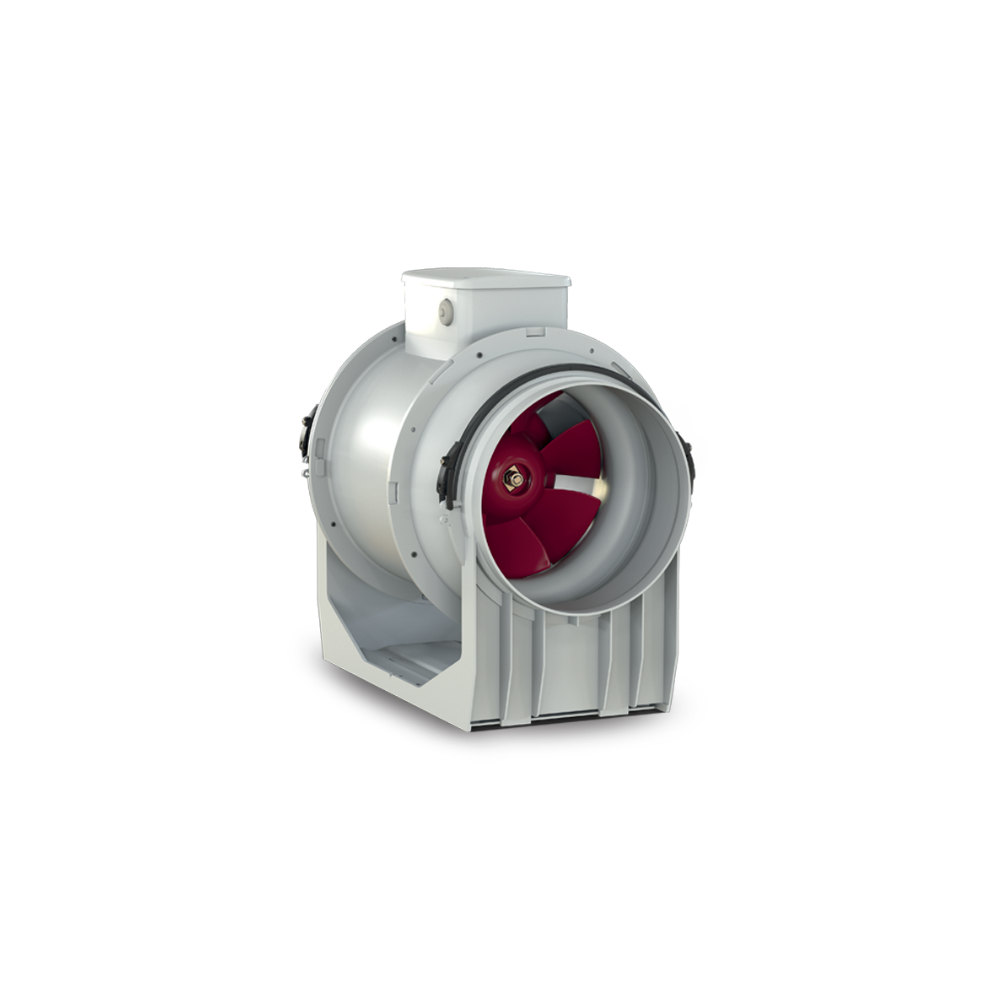

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)

The Vortice Lineo 250 ES Inline Mixed Flow EC Fan is a powerful and energy-efficient inline fan engineered for high-capacity ventilation in commercial, industrial, and large-scale residential systems. Designed with a 250mm nominal diameter and a premium EC (brushless) motor mounted on ball bearings, it achieves a maximum airflow of 1475 m3/h with exceptional efficiency and reliability.

Built for durability and safety, the units fire-resistant E2 class housing complies with ISO EN 11925-2:2010 and offers an IP45 protection rating (IPX5 when installed in ductwork) for dependable performance in demanding environments. Speed can be finely tuned via a potentiometer (0 - 10V) or a preset two-speed switch. Integrated thermal fuse protection safeguards against overheating, making the Vortice Lineo 250 ES an ideal choice for continuous or variable-speed ventilation systems where high airflow and quiet operation are essential.

• High-Capacity EC Motor - Brushless technology ensures energy efficiency, long service life, and thermal protection.
• Large 250mm Diameter - Provides superior airflow for large-scale applications.
• Fire-Resistant Construction - E2 class resin housing meets ISO EN 11925-2:2010 standards.
• Moisture-Resistant Design - IP45 rating (IPX5 in duct) for reliable use in challenging environments.
• Adjustable Speed Control - Potentiometer (0 - 10V) or two-speed switch for precise airflow management.
• Quiet and Efficient -  Low noise levels starting from 28.4 dB(A) at 3m on low speed.
• Thermal Fuse Safety - Integrated protection against overheating for continuous safe operation.

• Nominal Diameter - 250mm
• Max Airflow - 1475 m³/h
• Voltage - 220-240V
• Frequency - 50-60Hz
• Max Power - 126W
• Max Current - 1.00A
• Insulation Class - Class II
• IP Rating - IP45 (IPX5 in duct)
• Max Ambient Temperature - 50°C
• Weight - 5.0 kg
• RPM - 2690 (max)
• Noise Level at 3m - 44 dB(A) at max speed
• Housing Material - Fire-resistant plastic resin (E2 class)

• [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 250 ES | 250MM (10" Inch)
