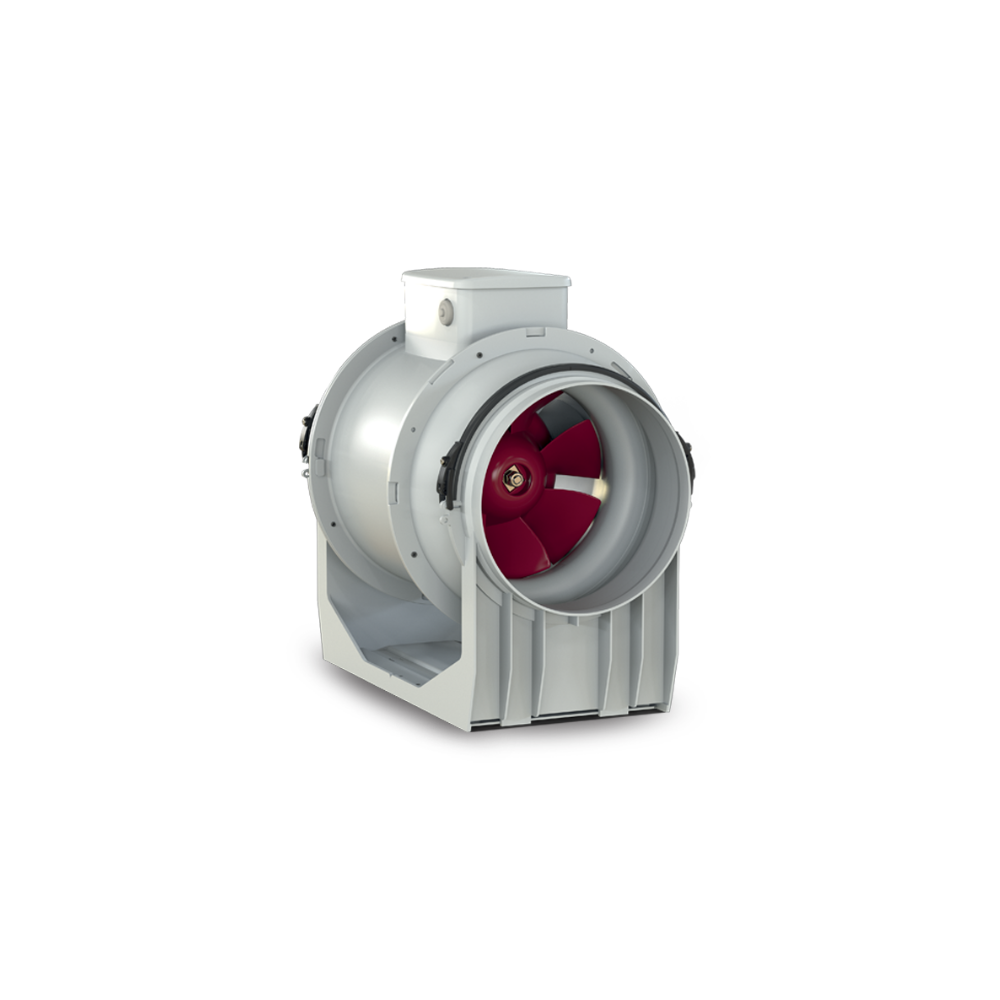

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)

The Vortice Lineo 315 ES Inline Mixed Flow EC Fan delivers exceptional performance for both residential and commercial ventilation needs. Featuring a 315mm nominal diameter and a high-capacity airflow of up to 2625 m3/h, this advanced EC (brushless) motor fan offers outstanding efficiency and low energy consumption at just 230W maximum power. Constructed with E2 class fire-resistant plastic resin compliant with ISO EN 11925-2:2010 standards, it ensures safe operation even near motor and electrical components. With an IP45 rating (and IPX5 when duct-installed), the Lineo 315 ES provides excellent water resistance, making it ideal for challenging environments. Equipped with thermal overload protection and a speed-adjustable control via potentiometer or two-speed switch, its a reliable and versatile solution for a wide range of ventilation applications across Australia.

• High Airflow Performance: Delivers up to 2625 m³/h for powerful ventilation.
• Energy Efficient EC Motor: Brushless, thermally protected motor with ball bearing supports for extended lifespan.
• Durable Construction: E2 class fire-resistant plastic resin, compliant with ISO EN 11925-2:2010.
• Water Resistance: Rated IP45 (IPX5 when duct-installed) for enhanced protection in humid or wet conditions.
• Thermal Safety: Built-in thermal fuse overheating safety device for safe operation.
• Flexible Speed Control: Adjustable via 0-10V potentiometer or preset two-speed switch.
• Quiet Operation: Low sound pressure levels for reduced noise in occupied spaces.

• [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)

• Specification Sheet - Click Here
• Product Manual - Click Here
