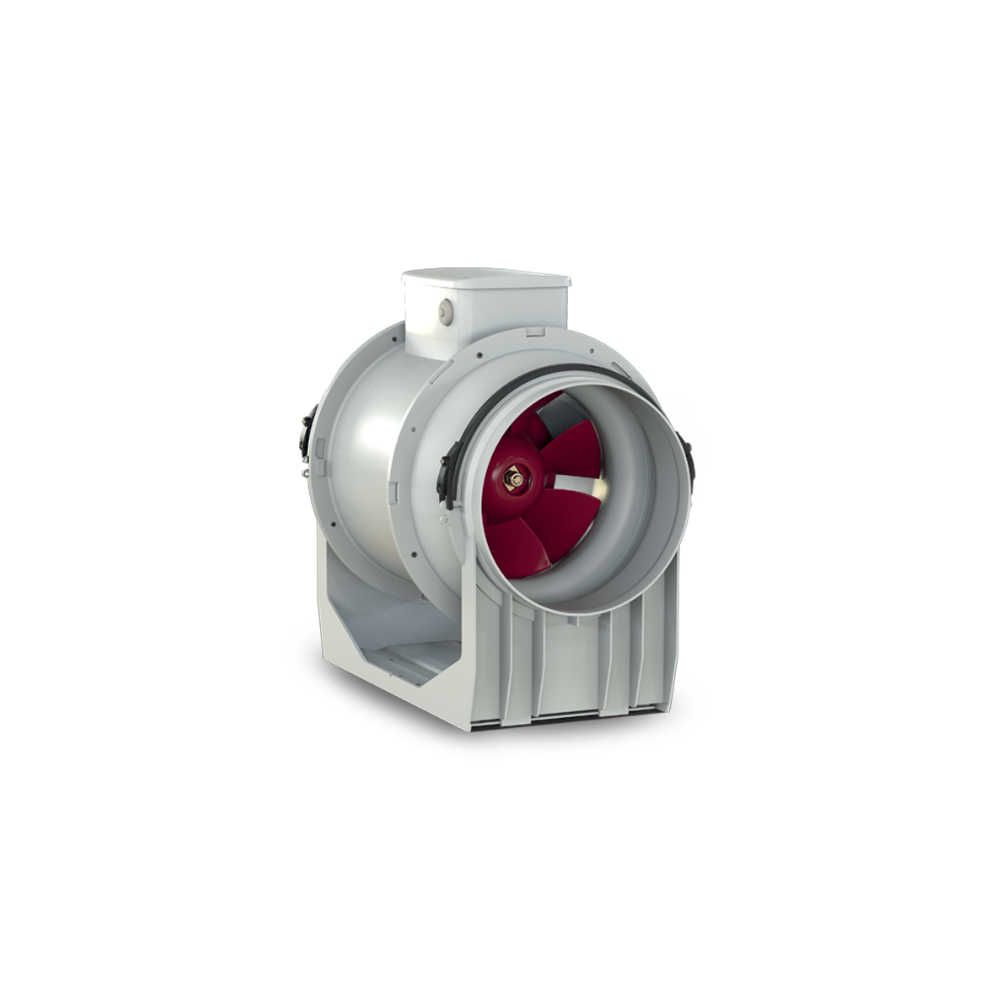

Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)
Air Flow 2625 M³/H | Power Consumption 230W | IP45
Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12&q...
Product Overview
| Model Number | Lineo 315 ES |
| Airflow (M³/H) | 2625 |
| Duct Flange Size | 315MM (12" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 230 |
| Noise Level | 64.5 dBA at 3M |
| IP Rating | IP45 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 2-Speed & PWM (0-10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vortice - 2 Years replacement warranty* |
Description
Description
The Vortice Lineo 315 ES Inline Mixed Flow EC Fan delivers exceptional performance for both residential and commercial ventilation needs. Featuring a 315mm nominal diameter and a high-capacity airflow of up to 2625 m3/h, this advanced EC (brushless) motor fan offers outstanding efficiency and low energy consumption at just 230W maximum power. Constructed with E2 class fire-resistant plastic resin compliant with ISO EN 11925-2:2010 standards, it ensures safe operation even near motor and electrical components. With an IP45 rating (and IPX5 when duct-installed), the Lineo 315 ES provides excellent water resistance, making it ideal for challenging environments. Equipped with thermal overload protection and a speed-adjustable control via potentiometer or two-speed switch, its a reliable and versatile solution for a wide range of ventilation applications across Australia.
Features
Features
- High Airflow Performance: Delivers up to 2625 m³/h for powerful ventilation.
- Energy Efficient EC Motor: Brushless, thermally protected motor with ball bearing supports for extended lifespan.
- Durable Construction: E2 class fire-resistant plastic resin, compliant with ISO EN 11925-2:2010.
- Water Resistance: Rated IP45 (IPX5 when duct-installed) for enhanced protection in humid or wet conditions.
- Thermal Safety: Built-in thermal fuse overheating safety device for safe operation.
- Flexible Speed Control: Adjustable via 0-10V potentiometer or preset two-speed switch.
- Quiet Operation: Low sound pressure levels for reduced noise in occupied spaces.
Specifications
Specifications
- Model - Vortice Lineo 315 ES
- Nominal Diameter - 315 mm
- Max Airflow - 2625 m³/h
- Voltage - 220-240V
- Max Power - 230 W
- Max Current - 1.75 A
- Motor Type - EC Brushless
- Insulation Class - II
- Ingress Protection - IP45 / IPX5 (duct-installed)
- Max Pressure - 421.7 Pa
- Max Ambient Temperature - 50°C
- Weight - 9.2 kg
- Dimensions (A x B x C) - 373 x 506 x 420 mm
What's in the box
What's in the box
- [1] x Vortice Lineo Inline Mixed Flow EC Fan - Lineo 315 ES | 315MM (12" Inch)
