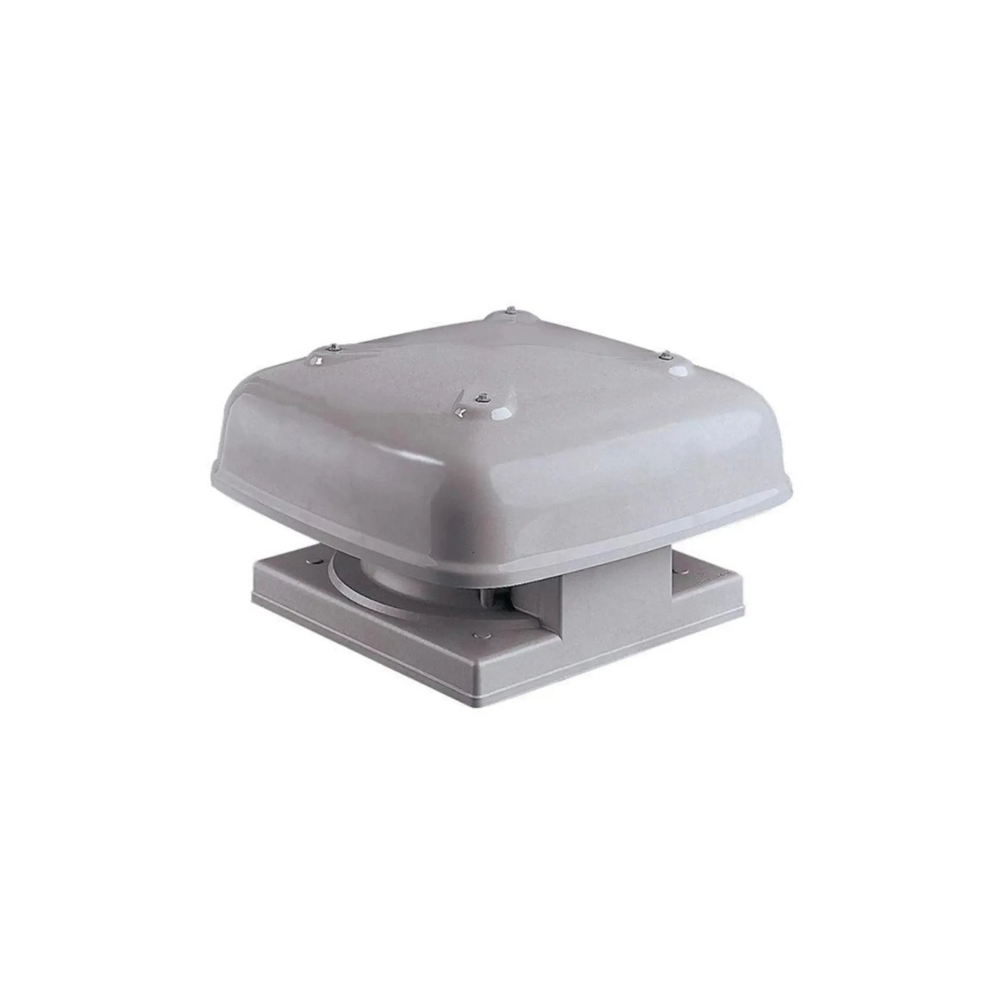

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE252D | 250MM | 2 Pole | 1 Phase

The Fantech Gamma CE252D Roof Mount Downflow Exhaust Fan delivers powerful performance for commercial ducted ventilation systems. With a 250MM diameter and airflow capacity up to 1008 M3/H, it is ideal for exhausting air from factories, workshops, warehouses, change rooms, and retail outlets.

Built with a robust yet lightweight design, the CE252D features a low profile roofline and comes fitted with protective bird mesh to prevent vermin and debris entering the system. Its high-speed motor ensures excellent airflow while maintaining durability for continuous operation.

The Gamma CE252D combines efficiency and reliability, making it a trusted choice for demanding Australian commercial environments.

• Robust, lightweight construction for long-lasting durability.
• Compact 220MM size with efficient airflow performance.
• Low noise operation at just 39 dB(A) @3m.
• Protective bird mesh guard fitted as standard.
• Low profile design suitable for discreet roof mounting.
• Designed for downflow discharge applications in commercial environments.
• Mountable at angles up to 30° for installation flexibility.

• Product Code: CE224D
• Diameter: 220MM (8.5" Inch)
• Speed: 23 RPS
• Power: 0.049 kW
• Current: 0.29A
• Noise Level: 39 dB(A) @3m
• Maximum Pressure: 130 Pa
• Maximum Airflow: 612 M³/H

• [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE224D | 220MM | 4 Pole | 1 Phase
