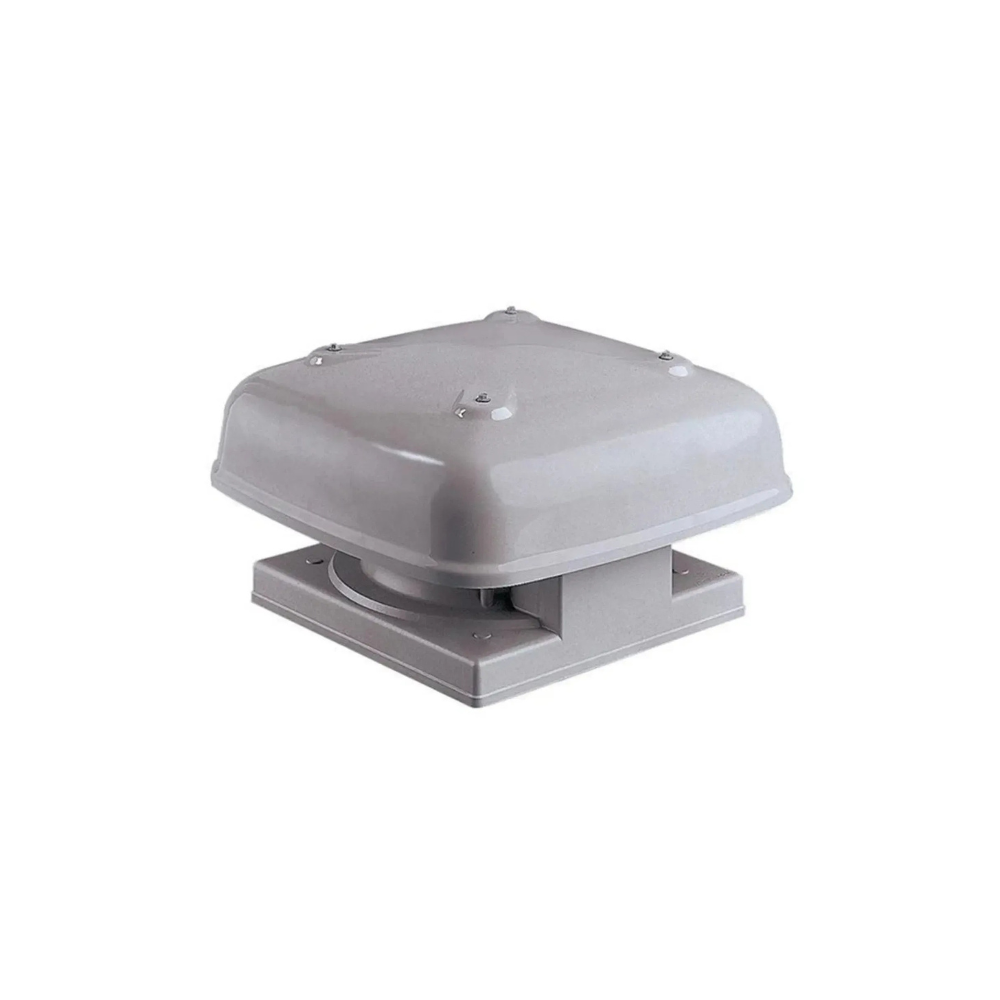

Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE252D | 250MM | 2 Pole | 1 Phase
Air Flow 612 M³/H | Power Consumption 49W | IP44
Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE252D | ...
Product Overview
| Model Number | CE252D |
| Airflow (M³/H) | 612 |
| Duct Flange Size | 220MM (8.5" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 49 |
| Noise Level | 39 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Gamma CE252D Roof Mount Downflow Exhaust Fan delivers powerful performance for commercial ducted ventilation systems. With a 250MM diameter and airflow capacity up to 1008 M3/H, it is ideal for exhausting air from factories, workshops, warehouses, change rooms, and retail outlets.
Built with a robust yet lightweight design, the CE252D features a low profile roofline and comes fitted with protective bird mesh to prevent vermin and debris entering the system. Its high-speed motor ensures excellent airflow while maintaining durability for continuous operation.
The Gamma CE252D combines efficiency and reliability, making it a trusted choice for demanding Australian commercial environments.
Features
Features
- Robust, lightweight construction for long-lasting durability.
- Compact 220MM size with efficient airflow performance.
- Low noise operation at just 39 dB(A) @3m.
- Protective bird mesh guard fitted as standard.
- Low profile design suitable for discreet roof mounting.
- Designed for downflow discharge applications in commercial environments.
- Mountable at angles up to 30° for installation flexibility.
Specifications
Specifications
- Product Code: CE224D
- Diameter: 220MM (8.5" Inch)
- Speed: 23 RPS
- Power: 0.049 kW
- Current: 0.29A
- Noise Level: 39 dB(A) @3m
- Maximum Pressure: 130 Pa
- Maximum Airflow: 612 M³/H
What's in the box
What's in the box
- [1] x Fantech Gamma Roof Mount Downflow Discharge Exhaust Fan - CE224D | 220MM | 4 Pole | 1 Phase
