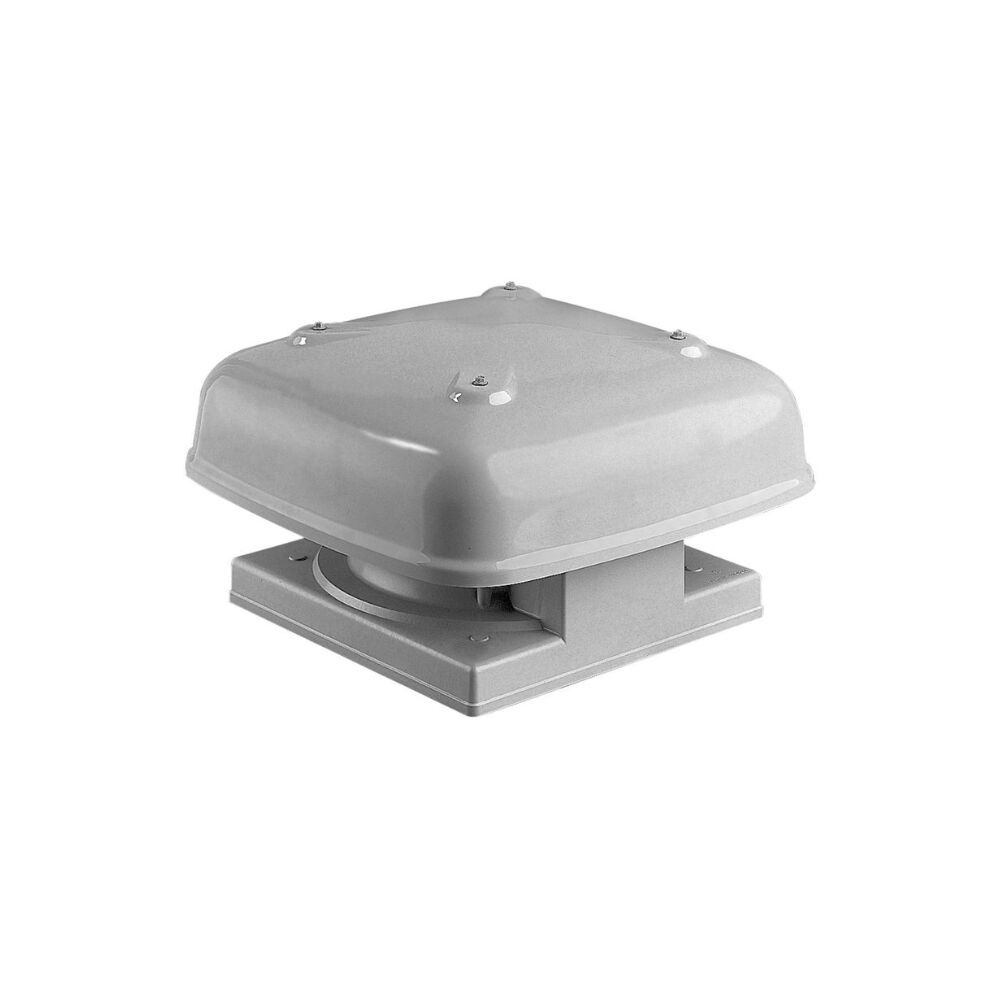

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV254E | 250MM | 4 Pole | 1 Phase

The Fantech Minivent MV254E Roof Mounted Axial Exhaust Fan combines strong ventilation performance with quiet operation. Designed for domestic and commercial applications, it delivers 785 M3/H airflow at a low noise level of 42 dB(A), making it ideal for noise-sensitive areas. With a robust lightweight construction, the MV254E is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. Operating on single phase 240V power and built to IP44 protection standards, it ensures dependable long-term use in Australian conditions.

• Airflow capacity of 785 M³/H for reliable extraction.
• Quiet operation with a low noise level of 42 dB(A).
• Robust and lightweight construction for easy handling and installation.
• Energy-efficient 60W motor with speed controllability.
• Suitable for ducted systems across residential and commercial applications.
• Mountable at angles up to 30° for flexible positioning.
• Operates on single phase 240V Australian power supply.
• IP44 rated for dust and moisture resistance.

• Model: MV254E
• Air Flow: 785 M³/H
• Noise Level: 42 dB(A) @ 3M
• Power Consumption: 60W
• Voltage: 240V
• Flange Size: 250MM (10" Inch)
• Poles: 4 Pole
• Phase: 1 Phase
• IP Rating: IP44

• [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV254E | 250MM | 4 Pole | 1 Phase

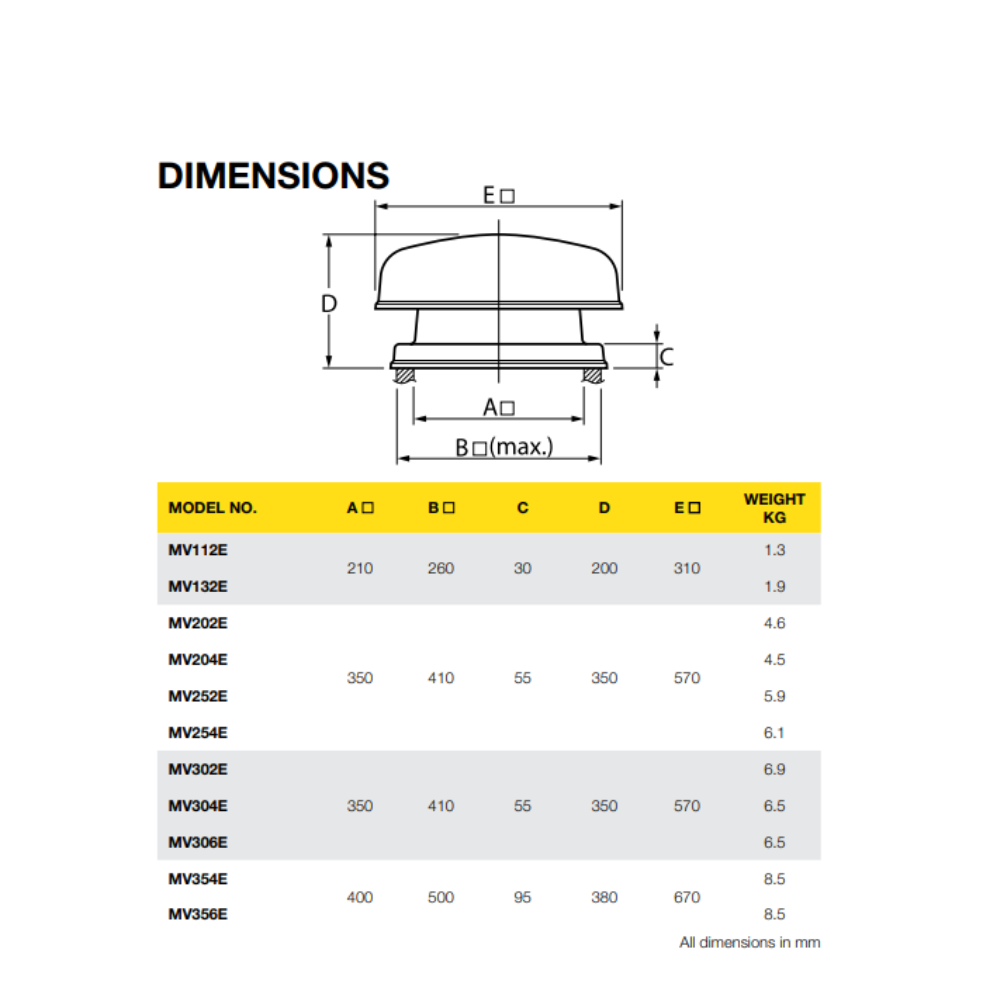

• Specification Sheet - Click Here
