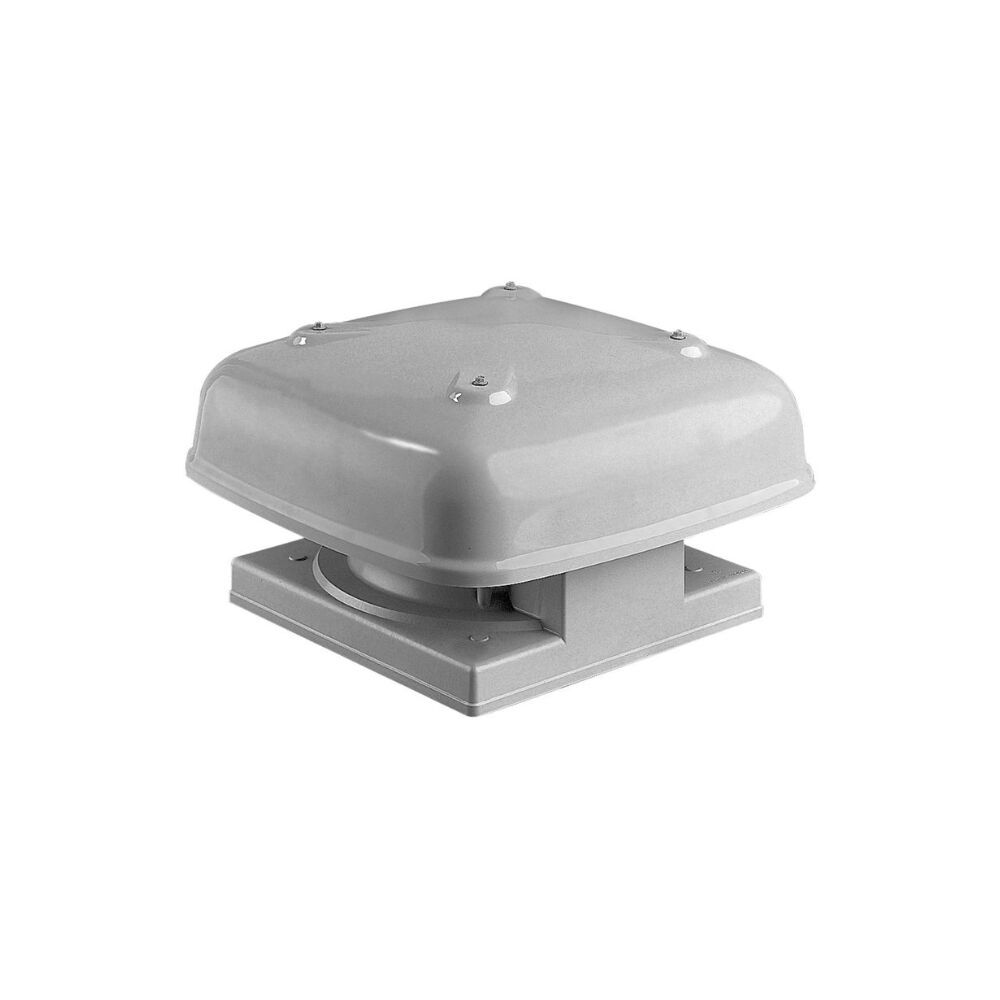

Fantech Minivent Roof Mounted Axial Exhaust Fans - MV254E | 250MM | 4 Pole | 1 Phase
Air Flow 785 M³/H | Power Consumption 60W | IP44
Fantech Minivent Roof Mounted Axial Exhaust Fans - MV254E | 250MM |...
Product Overview
| Model Number | MV254E |
| Airflow (M³/H) | 785 |
| Duct Flange Size | 250MM (10" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 60 |
| Noise Level | 42 dBA at 3M |
| IP Rating | IP44 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Backdraft Damper | Optional |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | Optional |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Fantech - 2 years warranty* |
Description
Description
The Fantech Minivent MV254E Roof Mounted Axial Exhaust Fan combines strong ventilation performance with quiet operation. Designed for domestic and commercial applications, it delivers 785 M3/H airflow at a low noise level of 42 dB(A), making it ideal for noise-sensitive areas. With a robust lightweight construction, the MV254E is speed controllable, suitable for ducted systems, and can be mounted at angles up to 300. Operating on single phase 240V power and built to IP44 protection standards, it ensures dependable long-term use in Australian conditions.
Features
Features
- Airflow capacity of 785 M³/H for reliable extraction.
- Quiet operation with a low noise level of 42 dB(A).
- Robust and lightweight construction for easy handling and installation.
- Energy-efficient 60W motor with speed controllability.
- Suitable for ducted systems across residential and commercial applications.
- Mountable at angles up to 30° for flexible positioning.
- Operates on single phase 240V Australian power supply.
- IP44 rated for dust and moisture resistance.
Specifications
Specifications
- Model: MV254E
- Air Flow: 785 M³/H
- Noise Level: 42 dB(A) @ 3M
- Power Consumption: 60W
- Voltage: 240V
- Flange Size: 250MM (10" Inch)
- Poles: 4 Pole
- Phase: 1 Phase
- IP Rating: IP44
What's in the box
What's in the box
- [1] x Fantech Minivent Roof Mounted Axial Exhaust Fans - MV254E | 250MM | 4 Pole | 1 Phase
