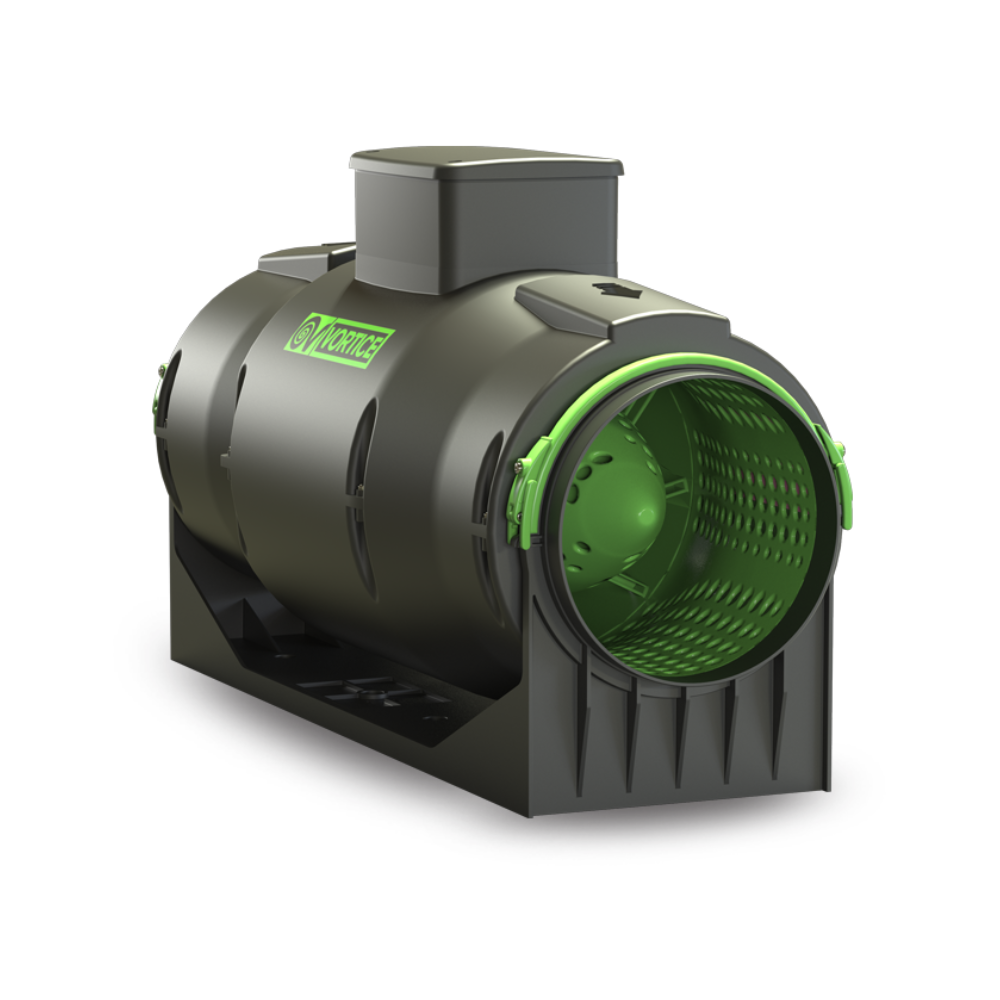

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)

The Vortice Lineo Quiet ES 100 EC Fan is a high-performance, energy-efficient inline duct fan engineered for silent ventilation in residential and light commercial settings. Made in compliance with ISO EN 11925-2:2010, this fan features a fire-resistant plastic resin enclosure and an internal sound-absorbing coating that significantly reduces noise emission through ducts and into surrounding environments.

Designed with a brushless EC motor mounted on ball bearings, the fan delivers superior reliability and longevity. The speed can be precisely adjusted using either a 0 - 10V potentiometer or a preset two-speed switch - ideal for flexible air volume control.

With a maximum airflow rate of 300 m3/h, a peak power consumption of only 23W, and a water ingress protection rating of IP45 when installed in-duct, this model is ideal for energy-conscious installations in bathrooms, kitchens, apartments, and small commercial sites.

Applications:

• Silent bathroom and toilet exhaust
• Laundry room moisture extraction
• Kitchen rangehood exhaust (ducted)
• Apartment/office inline ducting
• Air handling systems in ceiling voids

Features:

• Whisper Quiet Operation with integrated sound-absorbing casing
• High-Efficiency EC Motor: Energy-saving and thermally protected
• Compact 100MM (4 Inch) Size for versatile duct installation
• Fire-Resistant Construction: E2 class enclosure material (ISO EN 11925-2:2010)
• IP45 Rated: Water-resistant when installed in-duct
• Variable Speed Control: Via 0 - 10V potentiometer or two-speed selector
• Thermal Fuse Protection for enhanced motor safety
• Multiple Voltage Options: Compatible with 220 - 240V, 50 - 60Hz supply
• Fully Certified: CE, UKCA, and CB tested for assurance

[1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)

Specification Sheet - Click Here

Product Manual - Click Here
