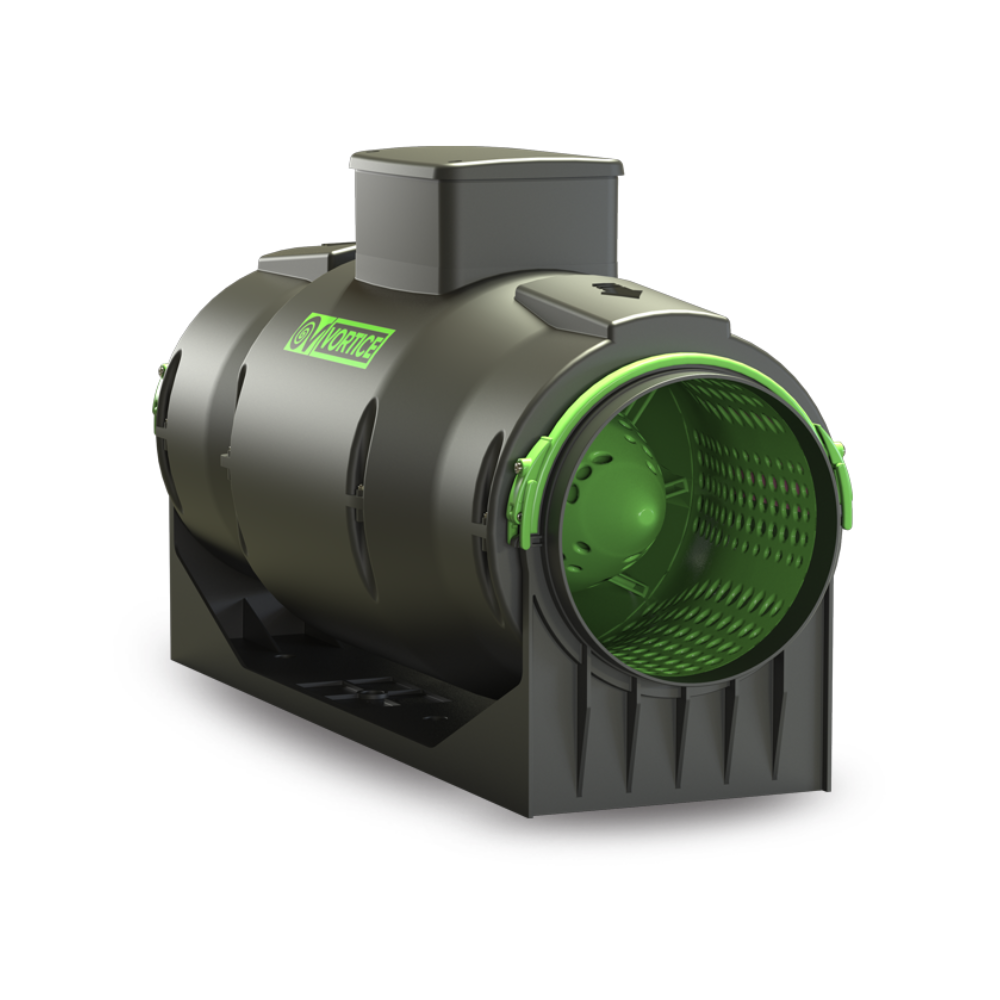

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)
Air Flow 300 M³/H | Power Consumption 23W | IP45
Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100M...
Product Overview
| Model Number | Lineo Quiet ES 100 |
| Airflow (M³/H) | 300 |
| Duct Flange Size | 100MM (4" Inch) |
| Motor Type | EC |
| Exhaust Fan Power (W) | 23 |
| Noise Level | 30.9 dBA at 3M |
| IP Rating | IP45 |
| Power Cord | No - Installation must be carried out by a qualified electrician. |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 2-Speed & PWM (0-10V) Control |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Vortice - 2 Years replacement warranty* |
Description
Description
The Vortice Lineo Quiet ES 100 EC Fan is a high-performance, energy-efficient inline duct fan engineered for silent ventilation in residential and light commercial settings. Made in compliance with ISO EN 11925-2:2010, this fan features a fire-resistant plastic resin enclosure and an internal sound-absorbing coating that significantly reduces noise emission through ducts and into surrounding environments.
Designed with a brushless EC motor mounted on ball bearings, the fan delivers superior reliability and longevity. The speed can be precisely adjusted using either a 0 - 10V potentiometer or a preset two-speed switch - ideal for flexible air volume control.
With a maximum airflow rate of 300 m3/h, a peak power consumption of only 23W, and a water ingress protection rating of IP45 when installed in-duct, this model is ideal for energy-conscious installations in bathrooms, kitchens, apartments, and small commercial sites.
Applications:
- Silent bathroom and toilet exhaust
- Laundry room moisture extraction
- Kitchen rangehood exhaust (ducted)
- Apartment/office inline ducting
- Air handling systems in ceiling voids
Features
Features
- Whisper Quiet Operation with integrated sound-absorbing casing
- High-Efficiency EC Motor: Energy-saving and thermally protected
- Compact 100MM (4” Inch) Size for versatile duct installation
- Fire-Resistant Construction: E2 class enclosure material (ISO EN 11925-2:2010)
- IP45 Rated: Water-resistant when installed in-duct
- Variable Speed Control: Via 0 - 10V potentiometer or two-speed selector
- Thermal Fuse Protection for enhanced motor safety
- Multiple Voltage Options: Compatible with 220 - 240V, 50 - 60Hz supply
- Fully Certified: CE, UKCA, and CB tested for assurance
Specifications
Specifications
- Air Flow Rate - 300 m³/h (83.3 L/s)
- Power Consumption - Max 23W
- Voltage - 220-240V
- Frequency - 50-60Hz
- Motor Type - EC Brushless Motor
- IP Rating - IP45 (duct installed)
- Diameter - 100MM (4" Inch)
- Weight - 3.8 kg
- Noise Level @ 3m - 30.9 dB(A) at full speed
- Max Pressure - 243.2 Pa
- Max Temp - 60°C (Continuous)
- Speed Control - 0-10V Potentiometer or 2-speed selector
What's in the box
What's in the box
- [1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 100 | 100MM (4" Inch)
