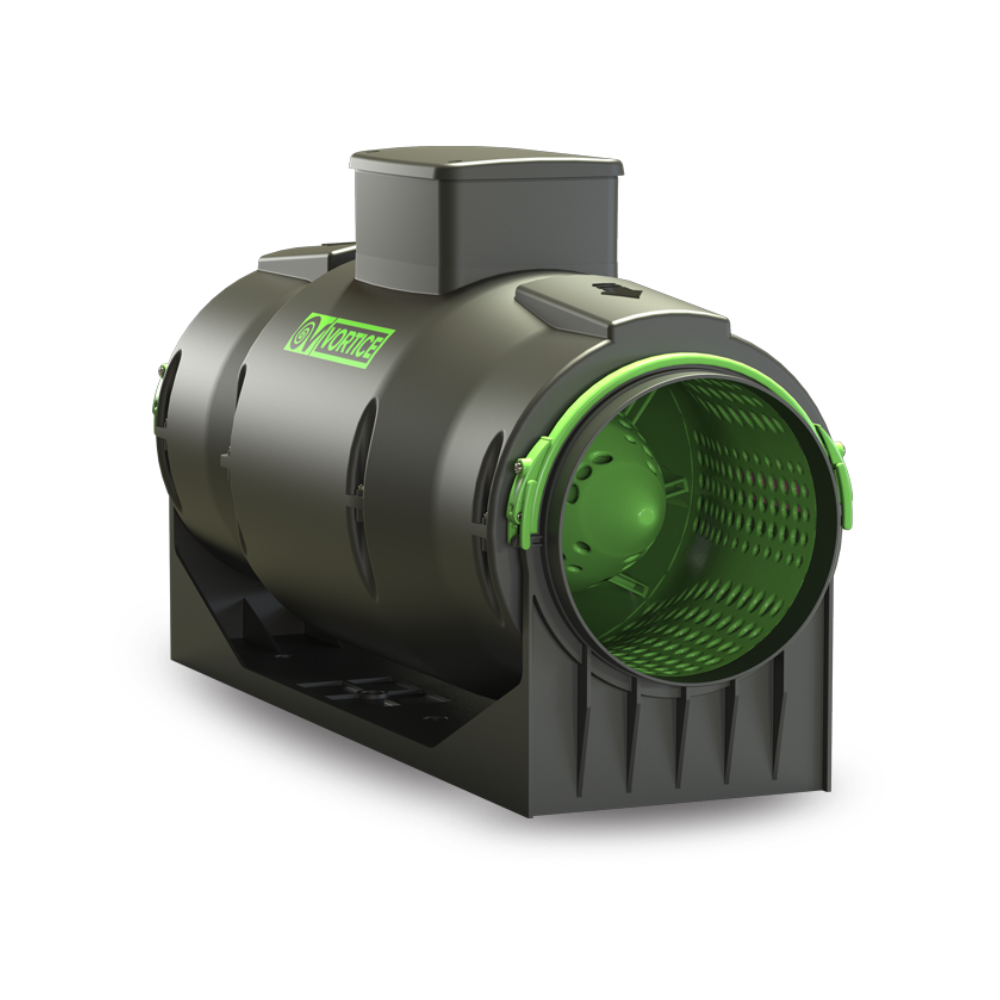

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)

The Vortice Lineo Quiet ES 150 is a premium mixed-flow inline EC fan, designed for whisper-quiet air extraction and ideal for high-demand residential and commercial applications in Australia. With advanced acoustic insulation and energy-efficient EC motor technology, this fan delivers up to 515 m3/h of airflow at just 31 watts.

Constructed from fire-resistant E2-class resin and equipped with IP45 ingress protection, this model is perfect for moisture-prone areas like bathrooms, kitchens, and laundry spaces when installed within ductwork. The casing features a sound-absorbing coating to reduce radiated and duct-transmitted noise significantly, while the centrifugal impeller and ball-bearing motor ensure durability and smooth operation.

Designed for intelligent ventilation, the fan supports 0 - 10V variable speed control or 2-speed switch configuration, enabling optimal airflow management across multiple ducted zones or building automation systems.

Applications

• Silent bathroom and toilet exhaust
• Laundry room moisture extraction
• Kitchen rangehood exhaust (ducted)
• Apartment/office inline ducting
• Air handling systems in ceiling voids

Features

• High Airflow Capacity: Up to 515 m3/h for powerful extraction
• Low Power Consumption: Only 31W at maximum speed
• Quiet Operation: Integrated sound insulation, only 31 dB(A) at 3m
• Advanced EC Motor: Thermally protected, ball-bearing supported
• Flexible Speed Control: 0 -10V potentiometer or 2-speed switch
• IP45 Protection: Water-resistant when installed in-duct
• Fire-Resistant Housing: Made to ISO EN 11925-2:2010 standards
• Compact 150MM Duct Compatibility: Ideal for space-constrained installs
• Certified Safe: CE, UKCA, and CB certifications

[1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 150 | 150MM (6" Inch)

Specification Sheet - Click Here

Product Manual - Click Here
