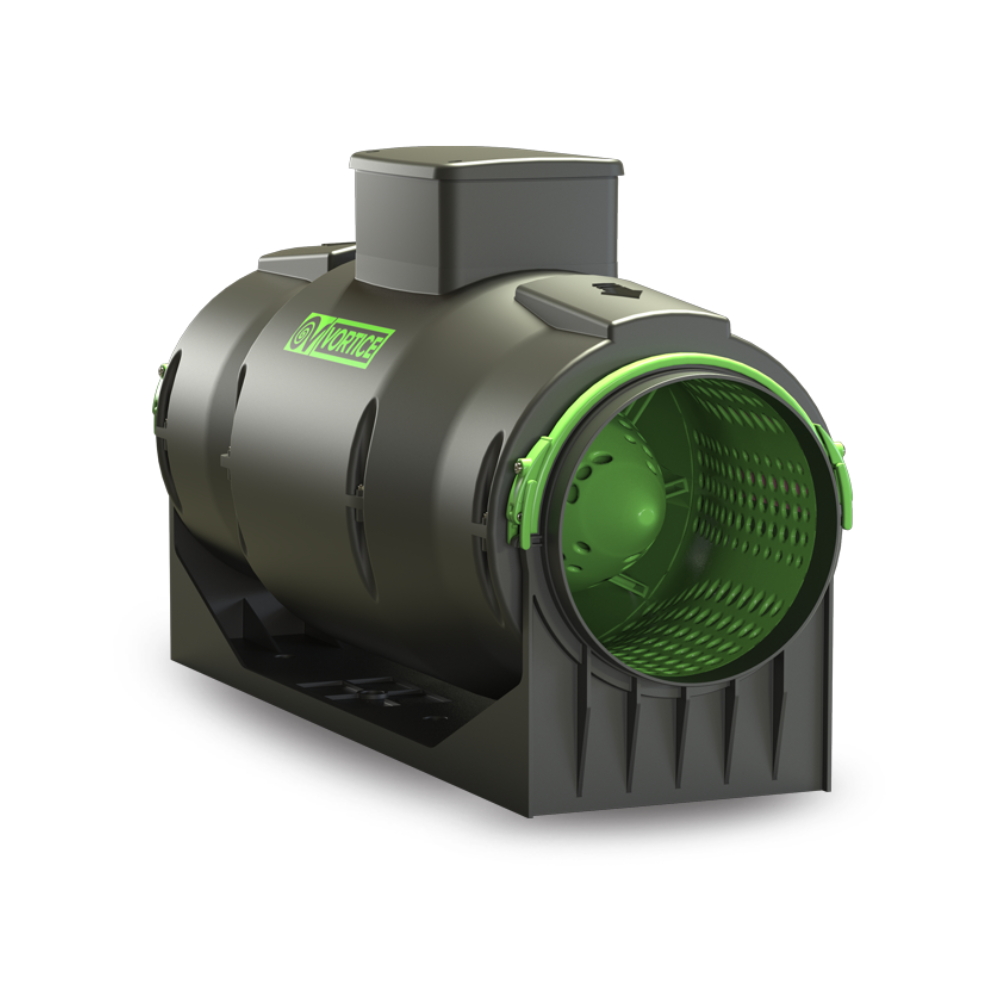

Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)

The Vortice Lineo Quiet ES 200 EC Inline Fan is engineered for high-capacity extraction with silent operation, making it ideal for commercial buildings, large-scale residential applications, and ducted air systems requiring robust airflow and noise control. This premium 200MM mixed-flow fan features an EC (electronically commutated) motor paired with a centrifugal impeller and ball bearing support for enhanced reliability and long-term performance.

Delivering up to 1145 m3/h airflow at just 88W, the Lineo Quiet ES 200 is encased in fire-resistant E2-class resin and internally coated with acoustic insulation to suppress airborne and duct-transmitted sound.

Designed to meet IP45 water resistance standards (when duct-installed), it provides safe, adaptable operation via 010V potentiometer control or a two-speed switch, making it a great fit for automation systems or variable air volume environments.

Features

• Ventilation for large residential and commercial ducted systems
• Silent operation in theatres, restaurants, server rooms
• High airflow zones requiring minimal noise transfer
• Ceiling, roof space, or utility room installs

Features

• High Airflow Delivery: Up to 1145 m3/h perfect for demanding ducted applications
• Efficient EC Motor: Quiet, thermally protected, brushless operation
• IP45 Rated: High water resistance when installed in duct
• Advanced Soundproof Housing: Minimises breakout and duct noise
• Fire-Resistant Casing: Certified E2 plastic resin (ISO EN 11925-2:2010)
• Speed Adjustment: Via 010V potentiometer or two-speed switch
• High Static Pressure: Max pressure up to 329.5 Pa for long duct runs
• CE, UKCA & CB Certified for safety and compliance
• Ideal for Australian commercial and industrial ventilation systems

[1] x Vortice Silent Inline Mixed Flow EC Fan - Lineo Quiet ES 200 | 200MM (8" Inch)

Specification Sheet - Click Here

Product Manual - Click Here
