Fantech Trade Ezifit in-Wall External Wall Mounted Fan - 3 Speed

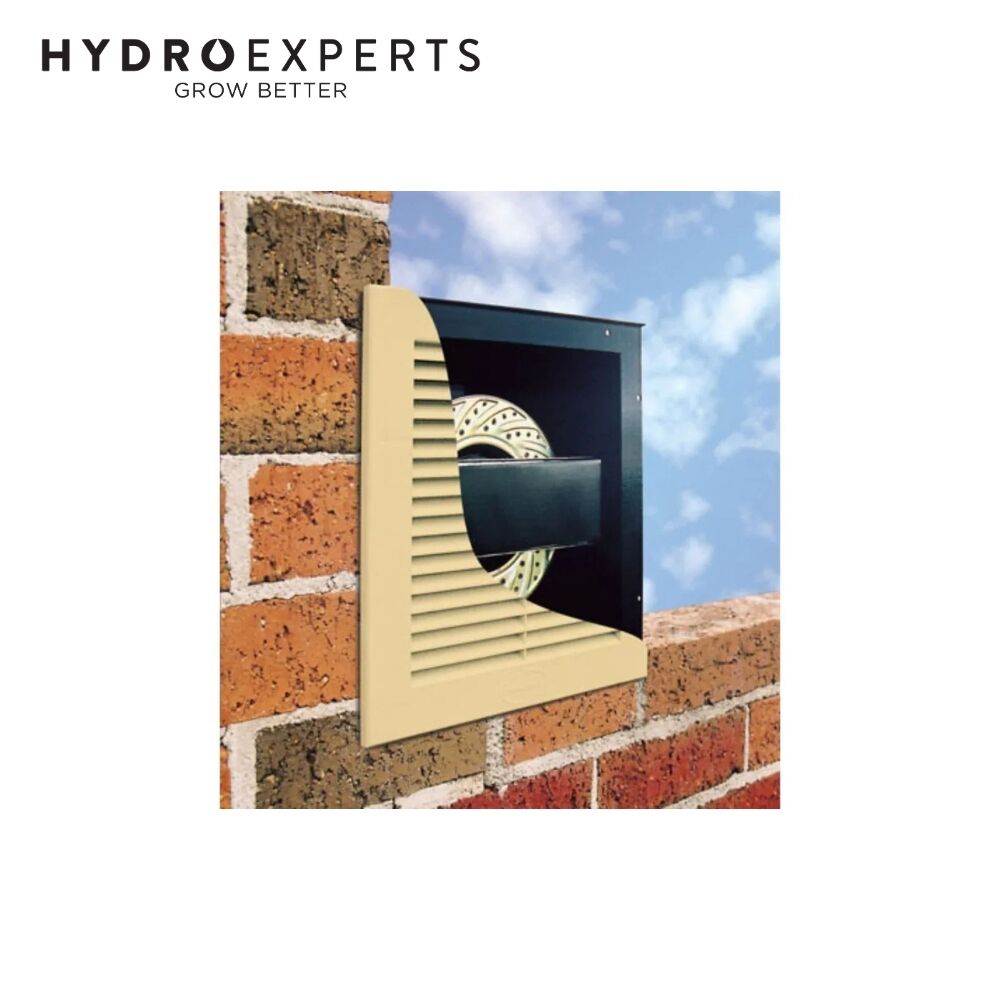

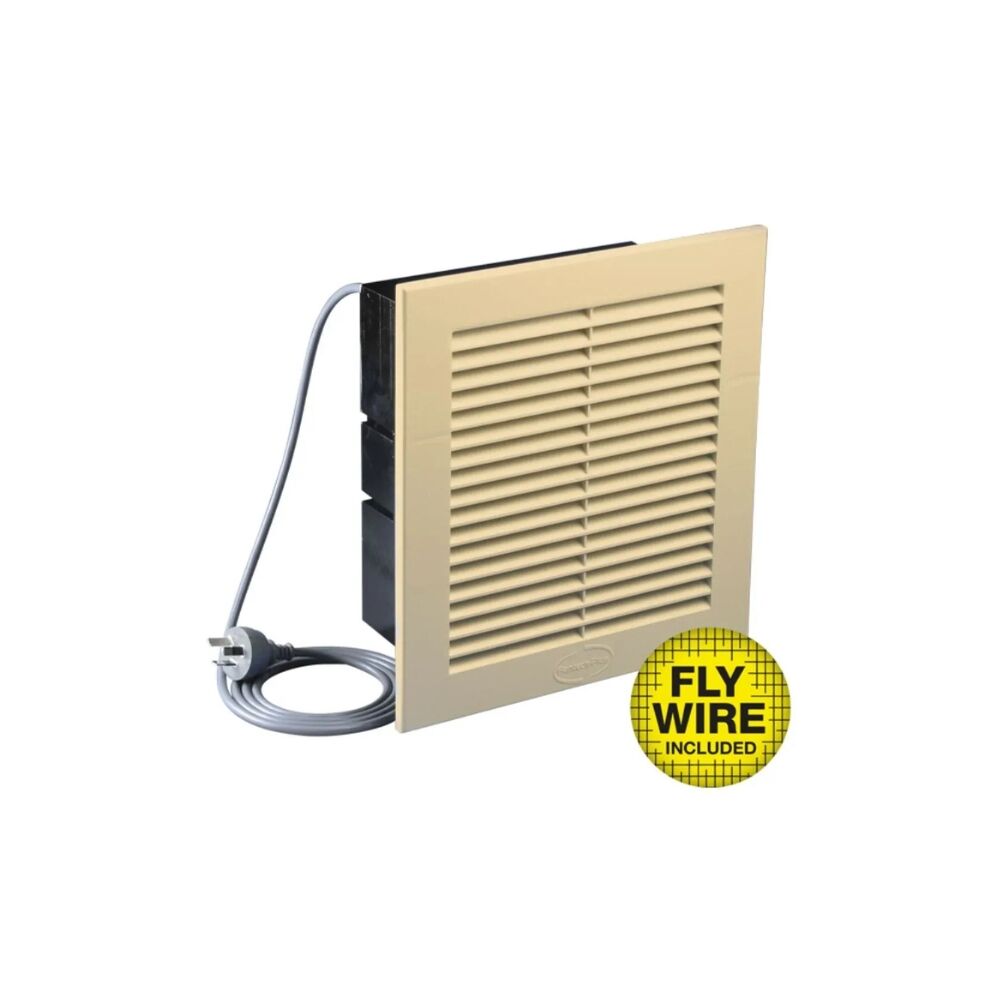

The Fantech Trade Ezifit In-Wall External Wall Mounted Fan (Model EIE150) is a premium ventilation solution designed for Australian homes, particularly effective for exhausting air from downstairs rooms in two-storey residences. Its flush-mounted design ensures a discreet appearance, seamlessly blending with most brick colours, and can be painted to match specific aesthetics.

Features:

• High Performance: Offers three selectable speedsLow (295 m3/h), Medium (425 m3/h), and High (558 m3/h)to cater to various ventilation needs.
• Energy Efficient: Operates at 50W, 60W, or 75W depending on the selected speed, ensuring optimal energy consumption.
• Quiet Operation: Designed for minimal noise, producing only 31 dB(A) at low speed and 49 dB(A) at high speed, measured at 3 meters.
• Durable Construction: Features an IP44-rated, UV-stabilised plastic grille and housing, suitable for outdoor installations.
• Safety First: Equipped with a continuous rated motor fitted with thermal protection to prevent overheating.
• Easy Installation: Comes pre-wired at medium speed for straightforward setup, with the option to adjust to high or low speeds.
• Versatile Application: Ideal for ventilating bathrooms, laundries, kitchens, and powder rooms, especially in two-storey homes where ducting between floors is required.
• Additional Accessories: Compatible with optional accessories like the DSS1-16 3-speed switch for convenient speed control, backdraft dampers for improved efficiency, and ducting kits for extended installations.

• Model: EIE150​
• Airflow Rates:
  • Low: 295 m³/h (82 L/sec)
  • Medium: 425 m³/h (118 L/sec)
  • High: 558 m³/h (155 L/sec)​
• Fan Speeds:
  • Low: 1273 rpm
  • Medium: 1939 rpm
  • High: 2418 rpm
• Noise Levels:
  • Low: 31 dB(A)
  • Medium: 44 dB(A)
  • High: 49 dB(A)​
• Power Consumption:
  • Low: 50W
  • Medium: 60W
  • High: 75W
• Voltage: 220-240V AC​

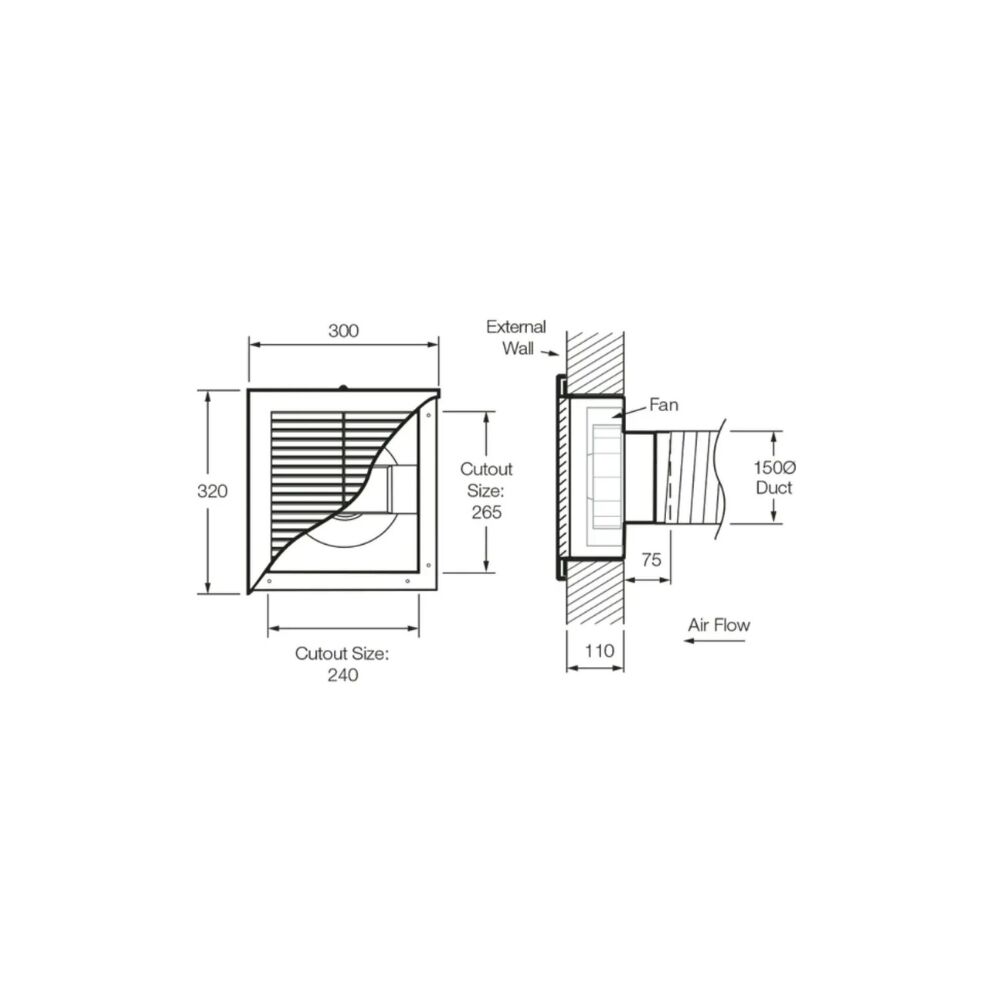

• Dimensions:
  • Grille: 300mm x 300mm
  • Cutout Size: 240mm x 265mm
  • Depth: 110mm​
• Weight: Approximately 2.8 kg
• Duct Compatibility: Suitable for 150mm diameter ducts

[1] x Fantech Trade Ezifit in-Wall External Wall Mounted Fan - 3 Speed

Specification Sheet - Click Here
