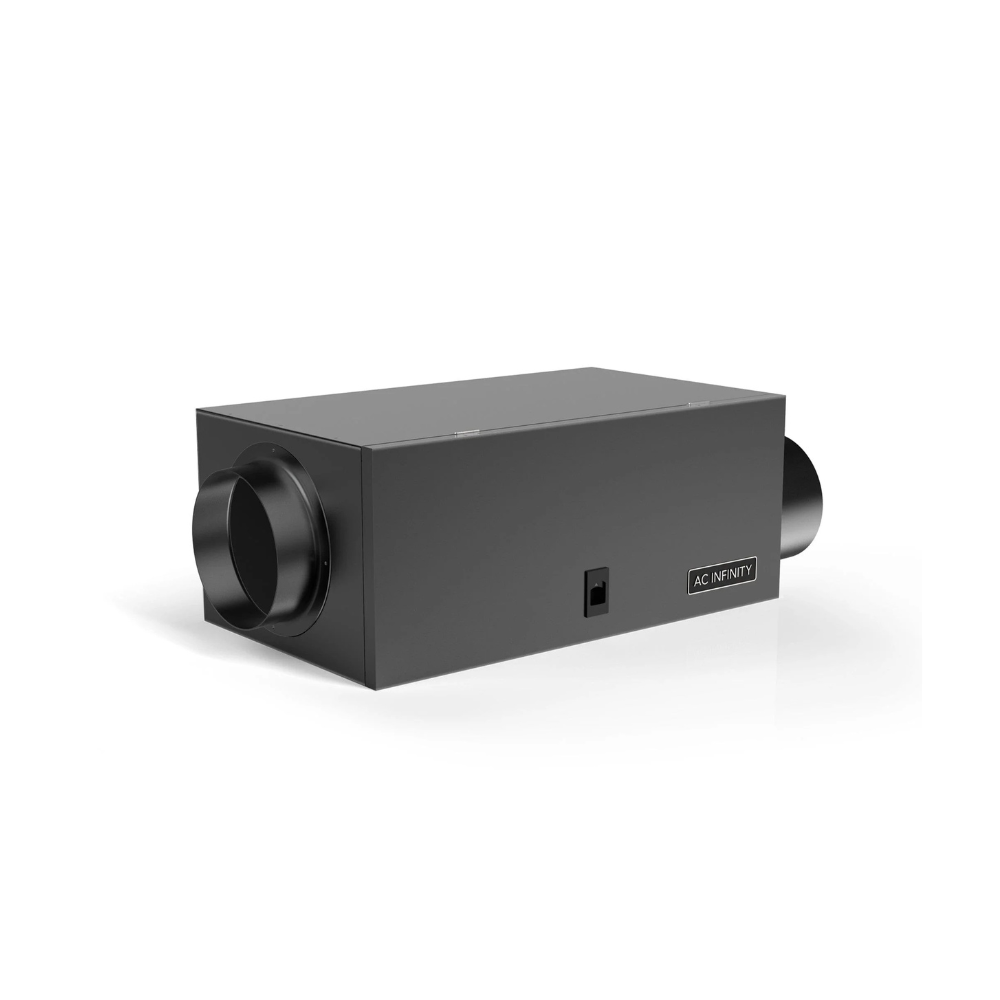

AC Infinity Inline Air Filter Box w/ MERV Filter - 100MM (4" Inch)

The AC Infinity Inline Air Filter Box 100MM (4") is engineered to deliver reliable air purification for both residential and hydroponic applications. Built with 1mm thick SPCC cold-rolled steel and powder-coated matte black finish, it offers durability and resistance to harsh environments.

Equipped with a high-efficiency pleated MERV filter, this unit effectively captures dust, lint, pollen, dirt, odours, and even fine particulates as small as 0.3 microns, ensuring a cleaner and healthier airflow. Its slide-lock hinge door allows quick access for filter replacement, while a soft neoprene seal ensures an airtight, dust-free fit.

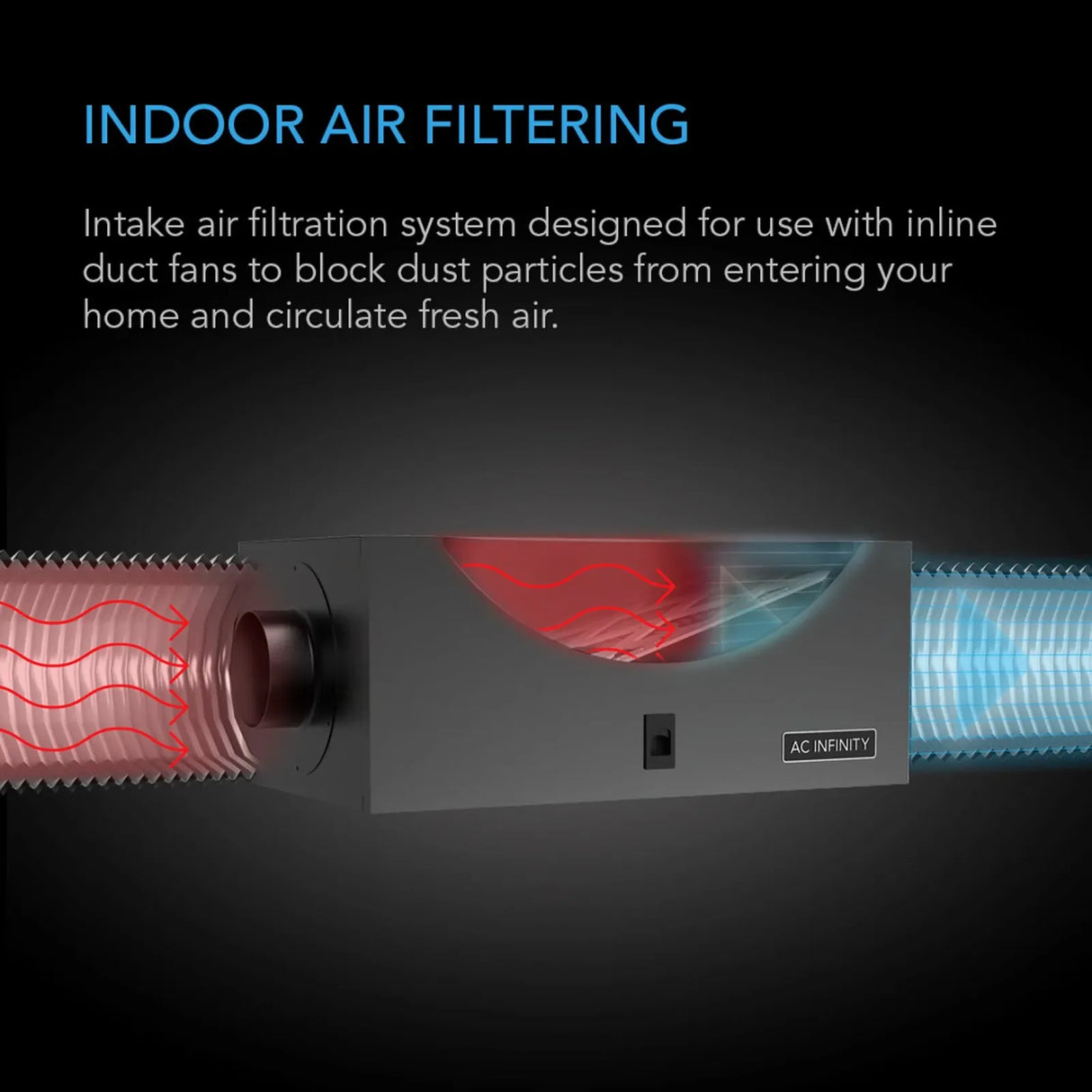

With aluminium duct flanges designed for 100mm (4") inline fans, the filter box integrates seamlessly with popular models like the AC Infinity CLOUDLINE S4 and T4, making it an excellent choice for HVAC systems, hydroponic grow rooms, and indoor air circulation setups.

Whether you are a DIY grower or a professional horticulturist, this inline filter box provides dependable dust and odour protection while maintaining optimal airflow.

Features

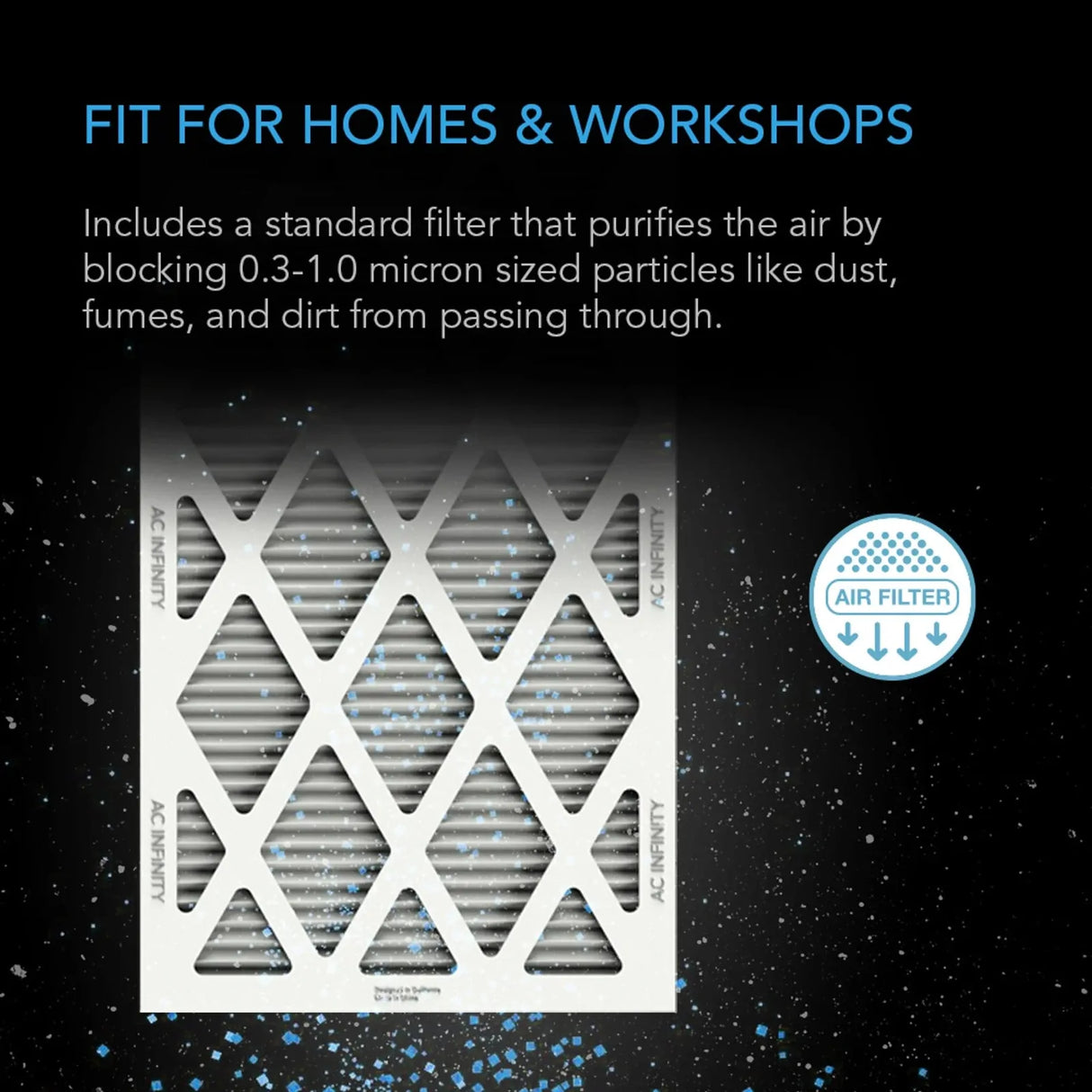

• High-Efficiency Filtration: Includes a pleated MERV filter that captures dust, lint, pollen, and odours down to 0.3 microns with 90% efficiency.
• Durable Construction: Built with 1mm SPCC steel and aluminium duct collars, finished in matte black powder coating.

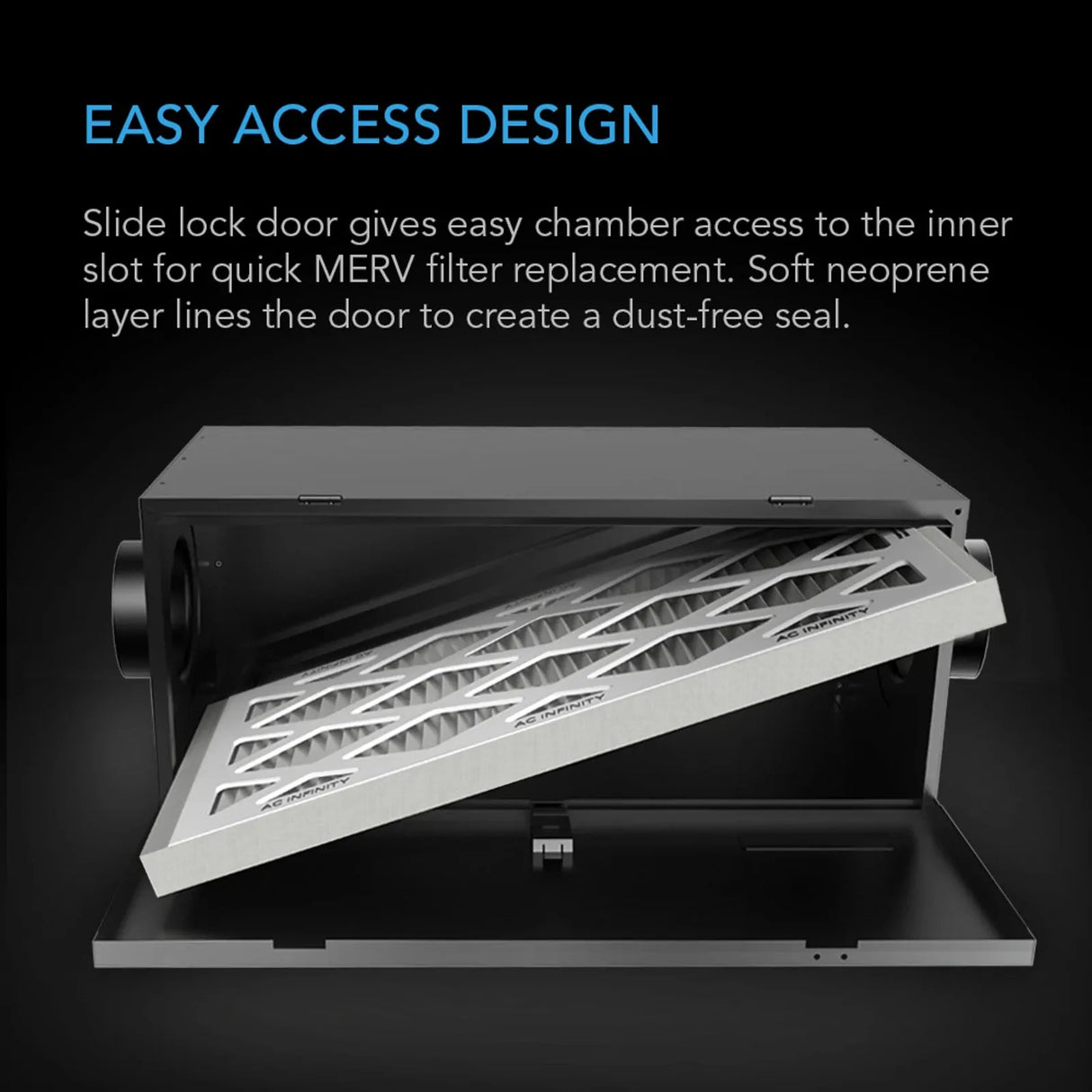

• Easy Maintenance: Hinged door with slide lock allows quick filter replacement and cleaning access.
• Airtight Seal: Soft neoprene lining ensures a dust-free and secure filter fit.
• Versatile Applications: Compatible with HVAC, grow rooms, and inline ventilation systems.
• Optimised for Inline Fans: Designed to pair with AC Infinity CLOUDLINE S4 and T4 for maximum performance.

• Brand: AC Infinity
• Model: AC-AFB4
• Duct Size: 100MM (4" Inch)
• Maximum Airflow: 400 CFM
• Minimum Airflow Range: 80-120 CFM
• Construction: 1mm SPCC Steel with Aluminium Duct Flanges
• Finish: Matte Black Powder Coat
• Filter Type: High-Efficacy MERV Pleated Filter
• Filter Size: 12 x 20 x 1 Inch

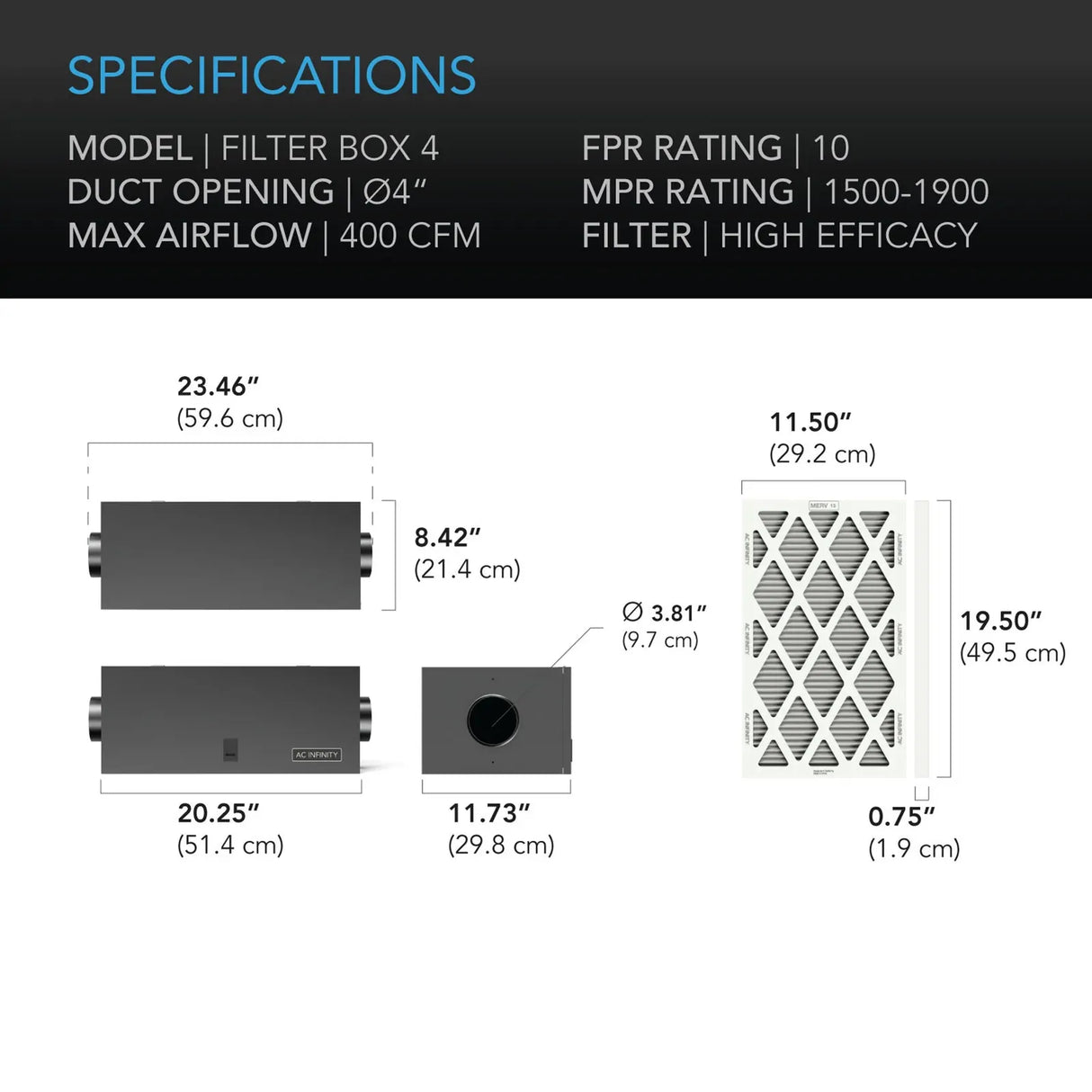

• Dimensions: 23.46 x 8.42 x 11.73 Inch (59.6 x 21.4 x 29.8 cm)
• Compatible Fans: AC Infinity CLOUDLINE S4, CLOUDLINE T4
• UPC: 819137021693

[1] x AC Infinity Inline Air Filter Box w/ MERV Filter - 100MM (4" Inch)

Product Manual - Click Here
