AC Infinity Shutter Exhaust Ventilation EC Fan Airlift T10 - 250MM (10" Inch) w/ Temperature Humidity Controller 69 PRO
Air Flow 1072 M³/H | Smart WiFi Controller | IP44 Rated
AC Infinity Shutter Exhaust Ventilation EC Fan Airlift T10 - 250MM ...
Description
Description
The AC Infinity Airlift T10 Shutter Exhaust Ventilation Fan - 250MM (10 Inch) is a high-performance EC exhaust fan engineered to deliver advanced ventilation in residential, commercial, and grow room environments across Australia. Equipped with the Controller 69 PRO, this smart fan enables dynamic temperature and humidity control, VPD triggers, and custom scheduling - making it perfect for greenhouses, attics, garages, and workshops.
Designed for professional and DIY installers alike, this unit features premium aluminium blades, heavy-duty steel shutters, and a fully enclosed dual-ball bearing motor built to last over 67,000 hours. The fan can be mounted horizontally or vertically and boasts an IP44 rating, ensuring dependable operation even in dusty or damp conditions.
Its powerful 631 CFM airflow (1072 M3/H) helps expel excess heat, moisture, odours, and particulates, while its quiet operation at just 67 dBA makes it suitable for both residential and commercial spaces. Integrated WiFi connectivity allows you to access historical data, automate fan functions, and monitor real-time climate conditions - all from the AC Infinity app.
Ideal for Australian growers, tradies, and renovators who need smart, powerful, and energy-efficient exhaust solutions, the Airlift T10 is part of the UIS ecosystem, compatible with other AC Infinity smart devices.
Features
- Airflow up to 1072 M3/H (631 CFM) - powerful ventilation for large spaces
- Includes Controller 69 PRO - temperature, humidity, VPD triggers, scheduling, and WiFi control
- Smart App Integration - control remotely, set alerts, monitor climate history
- Energy-Efficient EC Motor - with PWM for quieter operation and lower power use
- Heavy-Duty Steel Shutters - auto-close feature with weather and corrosion resistance
- IP44 Rated - suitable for harsh and humid environments
- Mountable Horizontally or Vertically - fits into most ducted or vented setups
- Long-Lasting Dual Ball Bearings - 67,000-hour life expectancy

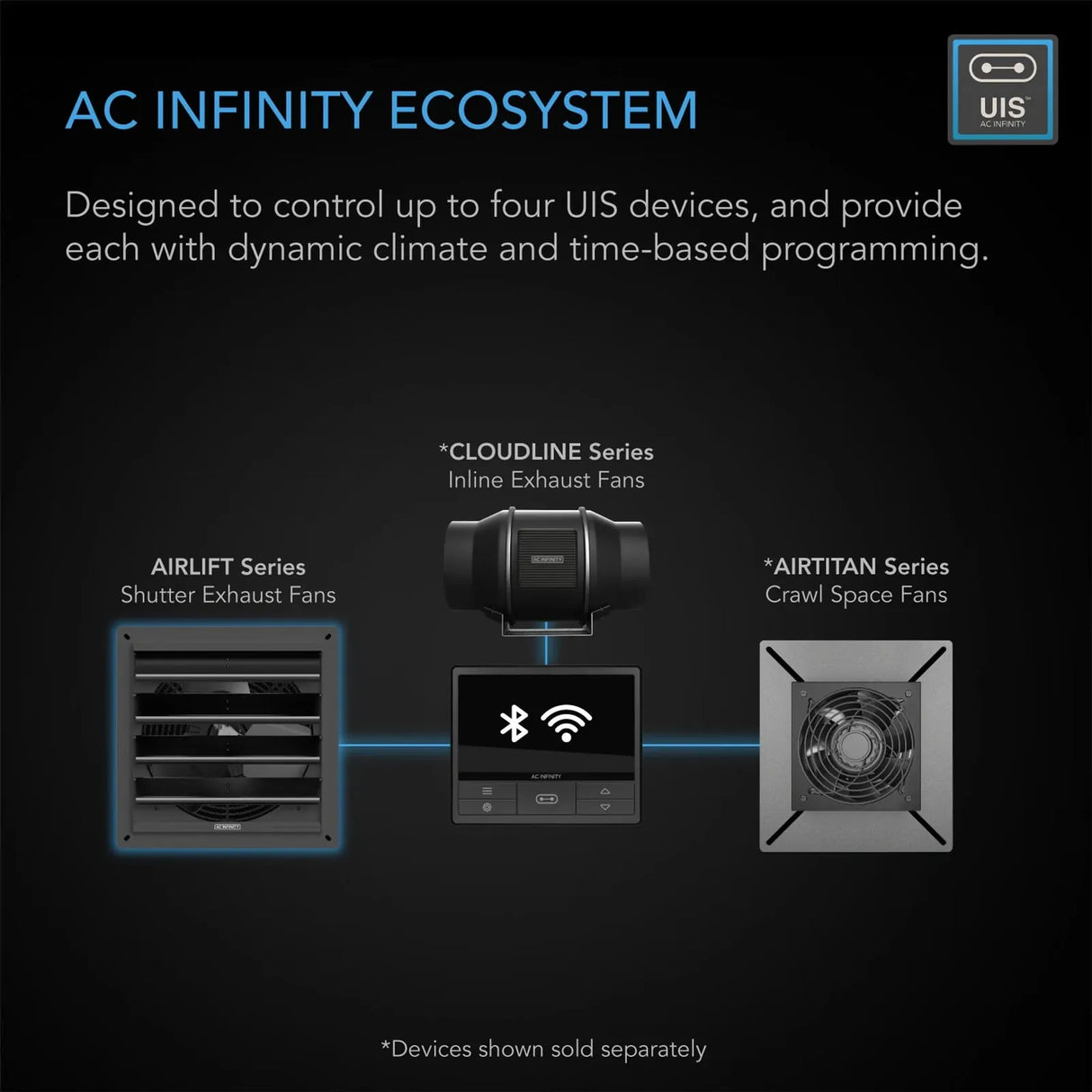

- Multi-Device Compatible - integrates with AIRLIFT, CLOUDLINE, and AIRTITAN series
Specifications
Specifications
| Model | AC Infinity Airlift T10 (AC-ALT10) |
|---|---|
| Fan Size | 250MM (10" Inch) |
| Airflow | 1072 M³/H (631 CFM) |
| Noise Level | 67 dBA |
| Power Consumption | 54W |
| Operating Voltage | 100-240V AC |
| Static Pressure | 96 Pa |
| Fan Bearings | Dual Ball |
| Life Expectancy | 67,000 Hours |
| Mounting Orientation | Horizontal or Vertical |
| Ingress Protection | IP44 Rated |
| Controller | Controller 69 PRO (WiFi + App Enabled) |
| Cord Length to Controller | 3.0m (10 feet) |
| Sensor Probe Length | 3.6m (12 feet) |
| Dimensions (Fan Unit) | 33 x 33 x 19.8 cm |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 35% – 85% RH |
What's in the box
What's in the box
[1] x AC Infinity Shutter Exhaust Ventilation EC Fan Airlift T10 - 250MM (10" Inch) w/ Temperature Humidity Controller 69 PRO
Downloads
Downloads
Product Manual - Click Here
