Blauberg 2-Room Standard Heat Transfer Kit - 200MM Blauberg Exhaust Fan | 1080 M3/H

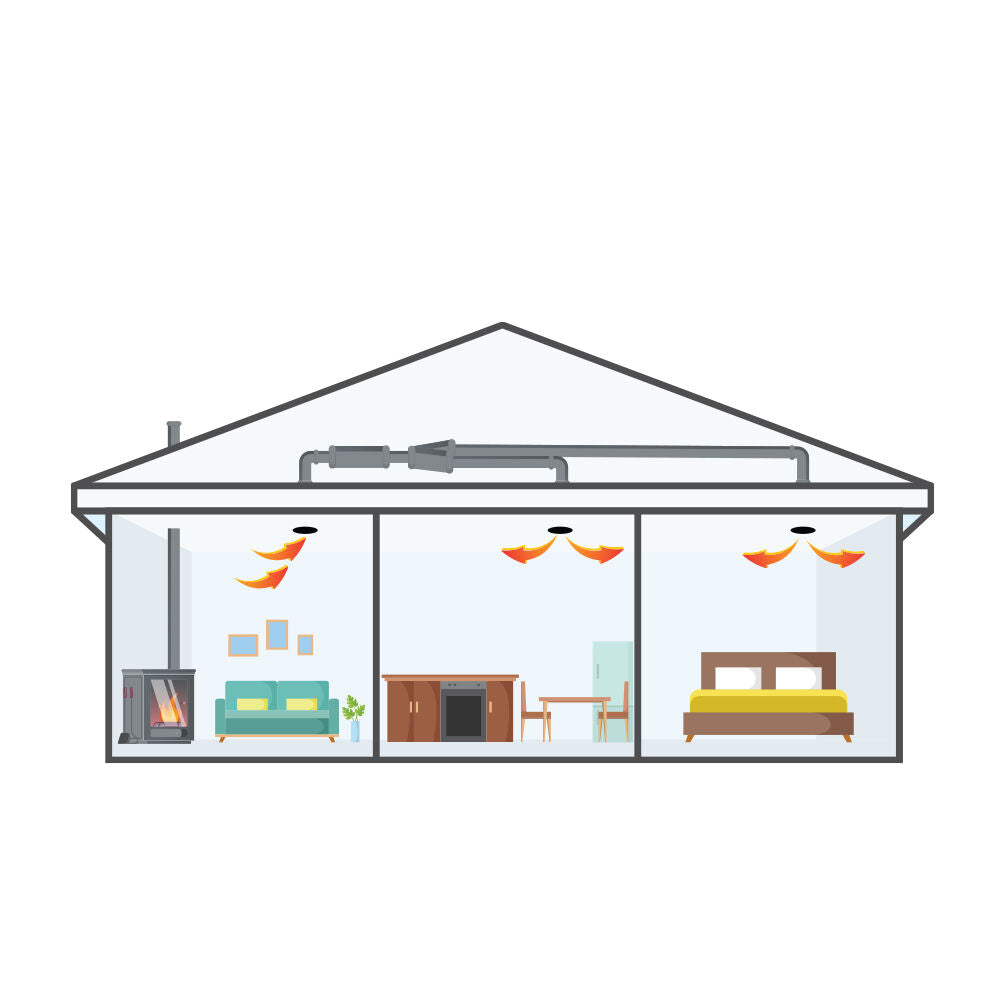

Expand your homes heating efficiency with the Blauberg 2-Room Standard Heat Transfer Kit. Designed for DIY homeowners and professional installers alike, this complete system transfers warm air from a heated living space and distributes it into two separate rooms, delivering consistent warmth throughout the home. At the heart of the kit is the Blauberg Turbo 200MM mixed-flow fan, offering powerful airflow performance with dual-speed operation to suit your needs.

By reusing the heat you already generate, this system helps minimize the need for additional heaters, lowering energy bills and reducing overall heating costs. Built using premium materials such as galvanized steel, durable ABS plastic, and insulated flexible ducting, this kit is engineered for reliable, long-lasting performance, even in demanding ceiling and roof spaces.

Features

• Efficient Heat Redistribution for Two Rooms - Capture and transfer warm air from a single source room into two adjacent spaces, reducing reliance on secondary heating sources and improving overall energy efficiency.
• High-Volume Air Movement with Quiet Operation - The Blauberg Turbo mixed-flow fan delivers strong airflow of up to 1080 m3/h while maintaining quiet performance, perfect for larger living spaces or longer ducting runs.
• Durable, Premium Components - The system includes a galvanized steel Y-connector, stainless steel duct clamps, insulated flexible ducting, and UV-stabilized ABS ceiling grilles all selected for reliability and longevity.
• Balanced Comfort Across Your Home - The split airflow design ensures two different rooms benefit from redistributed heat, making it ideal for warming bedrooms, studies, or smaller lounge areas efficiently.
• DIY-Friendly, Complete Installation Kit - Includes everything needed for installation: fan, ducting, grilles, Y-connector, clamps, and hanging straps. Designed for fast, simple setup with basic tools.

Specifications

• Blauberg Turbo Mixed Flow AC Fan Performance: 200mm diameter mixed-flow fan with maximum airflow of approximately 1080 m3/h. Two-speed motor for adjustable airflow and energy-efficient operation.
• Fan Housing: Tough ABS construction with an aerodynamic mixed-flow impeller design. Engineered for quiet operation even at high airflow levels.
• Ducting (200mm): 203mm diameter flexible acoustic duct, 6 meters long, insulated with 50mm thick polyester (R1.0 rating). Flame-retardant and puncture-resistant outer lining.
• Ducting (150mm): Two lengths of 152mm diameter flexible insulated acoustic duct, each 6 meters long with similar 50mm insulation and thermal properties.
• Ceiling Grilles: One 200mm and two 150mm adjustable ceiling grilles. Manufactured from UV-stabilized, impact-resistant ABS plastic for a clean, durable finish.
• Y Connector: Galvanized steel insulated Y-connector (200mm inlet to dual 150mm outlets) for efficient and quiet airflow splitting.
• Duct Clamps: Four stainless steel worm-drive clamps (203mm size) for secure, airtight, and corrosion-resistant duct connections.
• Mounting Strap: 25mm width, 50m roll of heavy-duty strap for easy suspension of duct runs across beams and ceiling joists.

Note: A switched power outlet is required for plug connection. Hardwiring must be performed by a licensed electrician if necessary.

Ready for a Cozier Home?

The Blauberg 2-Room Standard Heat Transfer Kit is your key to delivering even, energy-efficient warmth across two rooms using the excess heat already present in your home. Combining strong airflow performance, premium materials, and easy DIY installation, this kit ensures comfort throughout colder months without inflating your energy costs. Whether youre upgrading an existing heating setup or building a smarter, more efficient home, this complete solution from Blauberg offers reliability, quality, and year-round comfort.

Order today and experience quieter, more effective heat distribution in your home with trusted Blauberg performance.

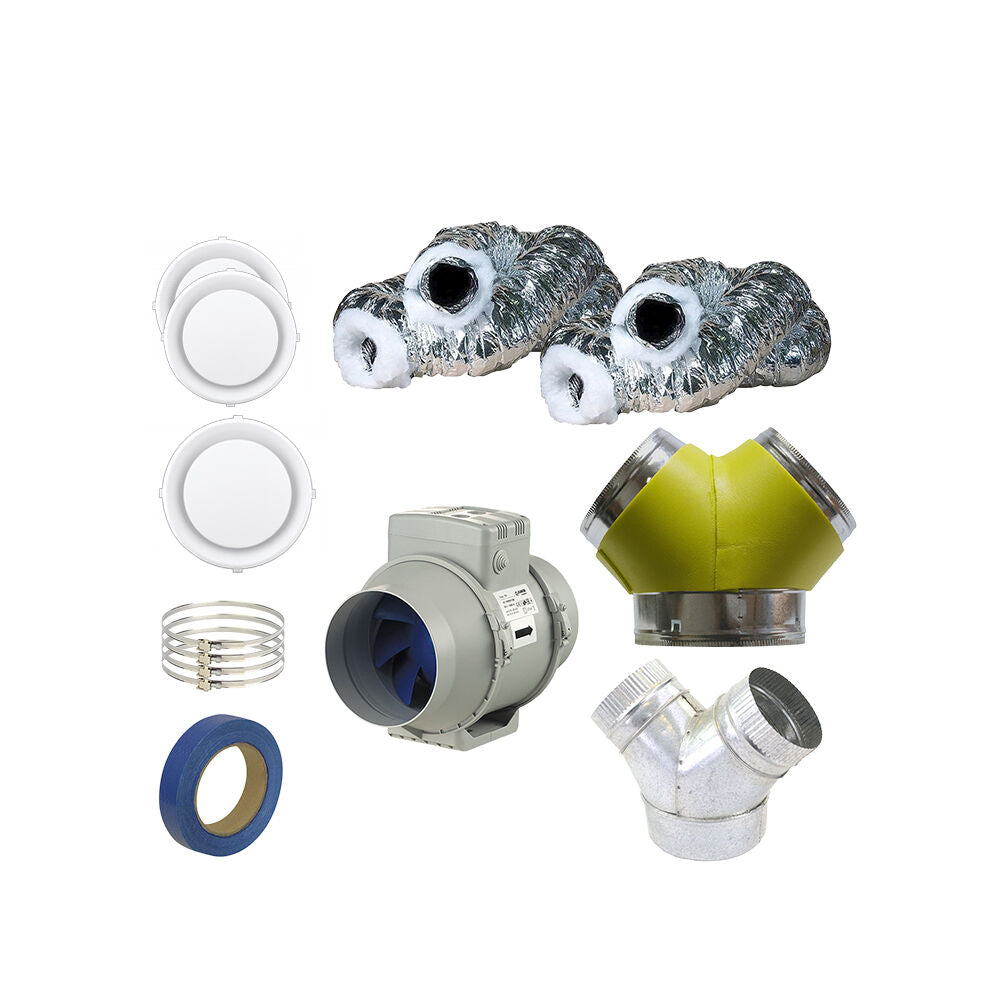

• [1] x Blauberg Turbo Mixed Flow AC Fan - 200MM (8" Inch) | 1080 M3/H | 2 Speed | 108W
• [2] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 150MM]
• [1] x Fantech IALG Ceiling Mounted Inlet Internal Grille - White | Adjustable - [Flange Size: 200MM]
• [1] x Polyester Insulated Flexible Acoustic Duct  - 203MM (8" Inch) x 6M | R1.0 | 50MM Insulation
• [2] x Polyester Insulated Flexible Acoustic Duct - 152MM (6" Inch) x 6M | R1.0 | 50MM Insulation
• [1] x Duct Hanging Strap Tape - 25MM x 50M | Blue
• [4] x Quick Fit Stainless Steel Duct Clamp for Rigid & Flexi Ducting - 203MM (8" Inch)
• [1] x Galvanized Steel Y Duct Connector with Insulation - 200MM x 150MM x 150MM

• Specification Sheet - Click Here
