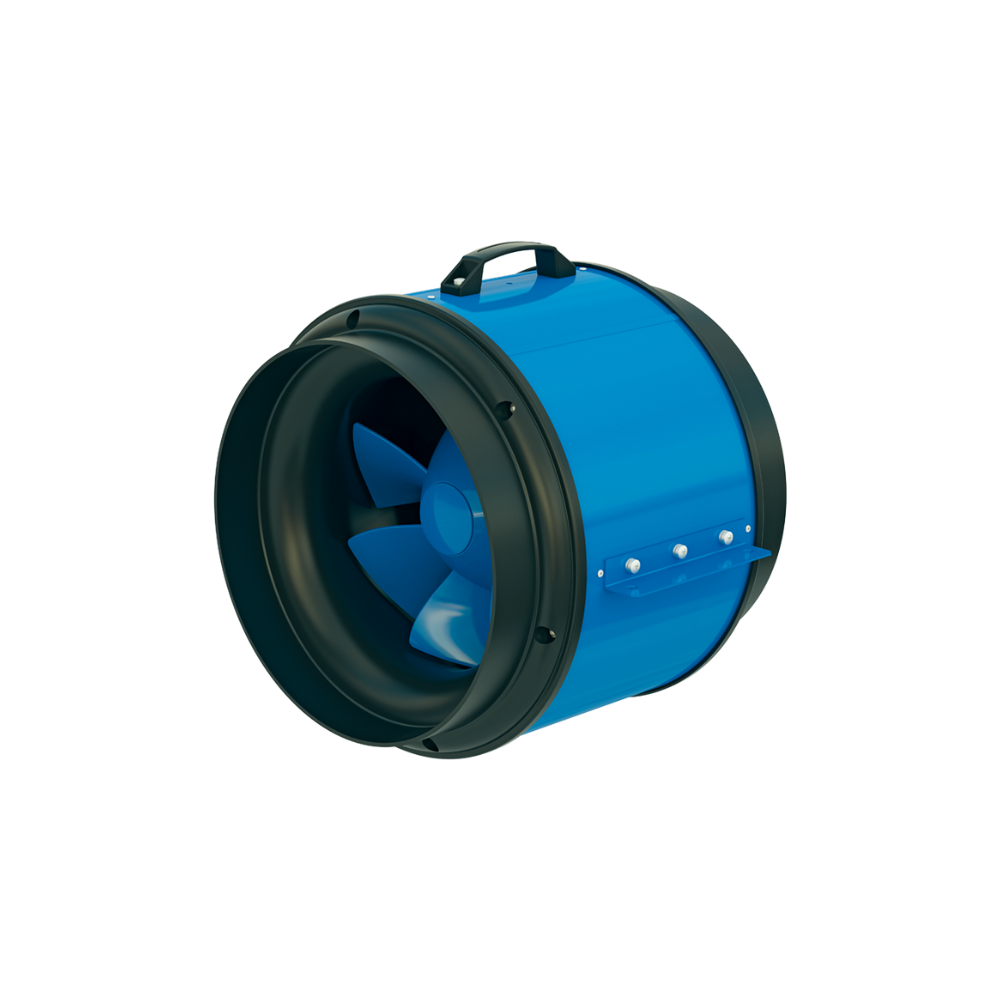

Blauberg Primo 400 Mixed Flow Inline AC Fan - 400MM (16" Inch) | 3 Speed
Air Flow 3550 M³/H | Power Consumption 224W | IPX4
Blauberg Primo 400 Mixed Flow Inline AC Fan - 400MM (16" Inch)...
Product Overview
| Model Number | Primo 400 |
| Airflow (M³/H) | 3550 |
| Duct Flange Size | 400MM (16" Inch) |
| Motor Type | AC |
| Exhaust Fan Power (W) | 224 |
| Noise Level | 43 dBA at 3M |
| IP Rating | IPX4 |
| Power Cord | Yes |
| Backdraft Damper | No |
| Voltage | 240V - 1 Phase |
| Humidistat | No |
| Thermostat | No |
| Speeds / Control | 3-Speed |
| Smart Control (Wi-Fi/App) | No |
| Run On Timer | No |
| Warranty | Blauberg - 2 years replacement warranty* |
Description
Description
The Blauberg Primo 400 Mixed Flow Inline AC Fan 400MM is built for serious commercial ducted ventilation. Pushing up to 3350 M3/H through 400MM (16" Inch) round duct, it suits large amenities, plant rooms, warehouses and commercial kitchens that need strong, reliable extraction or supply air.
A 3-speed AC mixed flow motor lets you balance noise and performance on each job, from low speed background ventilation through to full power when you need to clear heat, fumes or stale air quickly. The polymer casing with metal reinforcement, ball bearing motor, manual reset thermal overload protection and IPX4 rating are all designed for continuous duty in demanding Australian conditions.
Primo 400 mounts in any orientation within round duct systems and comes ready for use with multi-speed or thyristor controllers. It is a robust, low-fuss choice for tradies, builders and maintenance contractors needing high-capacity inline ventilation on commercial projects. Add the Blauberg Primo 400 to your cart and get dependable airflow on your next install.
Features
Features
- 400MM mixed flow inline fan for large commercial and industrial duct systems
- High airflow up to 3350 M³/H with strong pressure for long duct runs
- 3 speed AC asynchronous motor with ball bearings and thermal overload protection
- Polymer casing with metal reinforcement and IPX4 rating for tough environments
- Supplied with 1.2M lead and 3 pin plug with external three speed switch
- Installs in any orientation within round duct systems using standard fittings
- Compatible with multi speed and thyristor controllers for simple airflow control
Specifications
Specifications
- Brand: Blauberg
- Series: Primo
- Model: Primo 400
- Fan Type: Inline mixed flow AC fan
- Application: Supply and exhaust ventilation for commercial and industrial premises
- Airflow: 2677 / 3136 / 3350 M³/H (speed 1 / 2 / 3)
- Duct Size: 400MM (16" Inch)
- Motor Type: 3 speed asynchronous AC motor with ball bearings
- Rated Power: 197W / 204W / 224W
- Supply Voltage: 230V AC, 1 phase
- Frequency: 50Hz
- Current: 0.91A / 0.90A / 0.98A
- Sound Level: 48 / 49 / 51 dB(A) at 3M
- Ingress Protection: IPX4 (motor IP20)
- Transported Air Temperature: -25°C to +55°C
- Casing Material: Polymer with metal reinforcement
- Impeller Type: Mixed flow
- Installation: Inline mounting in any orientation for round duct
- Weight: 18.5KG
- Lead And Plug: 1.2M lead with 3 pin plug and external three speed switch
- Typical Uses: Commercial kitchens, warehouses, plant rooms, industrial spaces
What's in the box
What's in the box
- [1] x Blauberg Primo 400 Mixed Flow Inline AC Fan - 400MM (16" Inch) | 3 Speed
